Rotating
CC80R
Rotating Carrier
Container Delivery Unit (CDU)

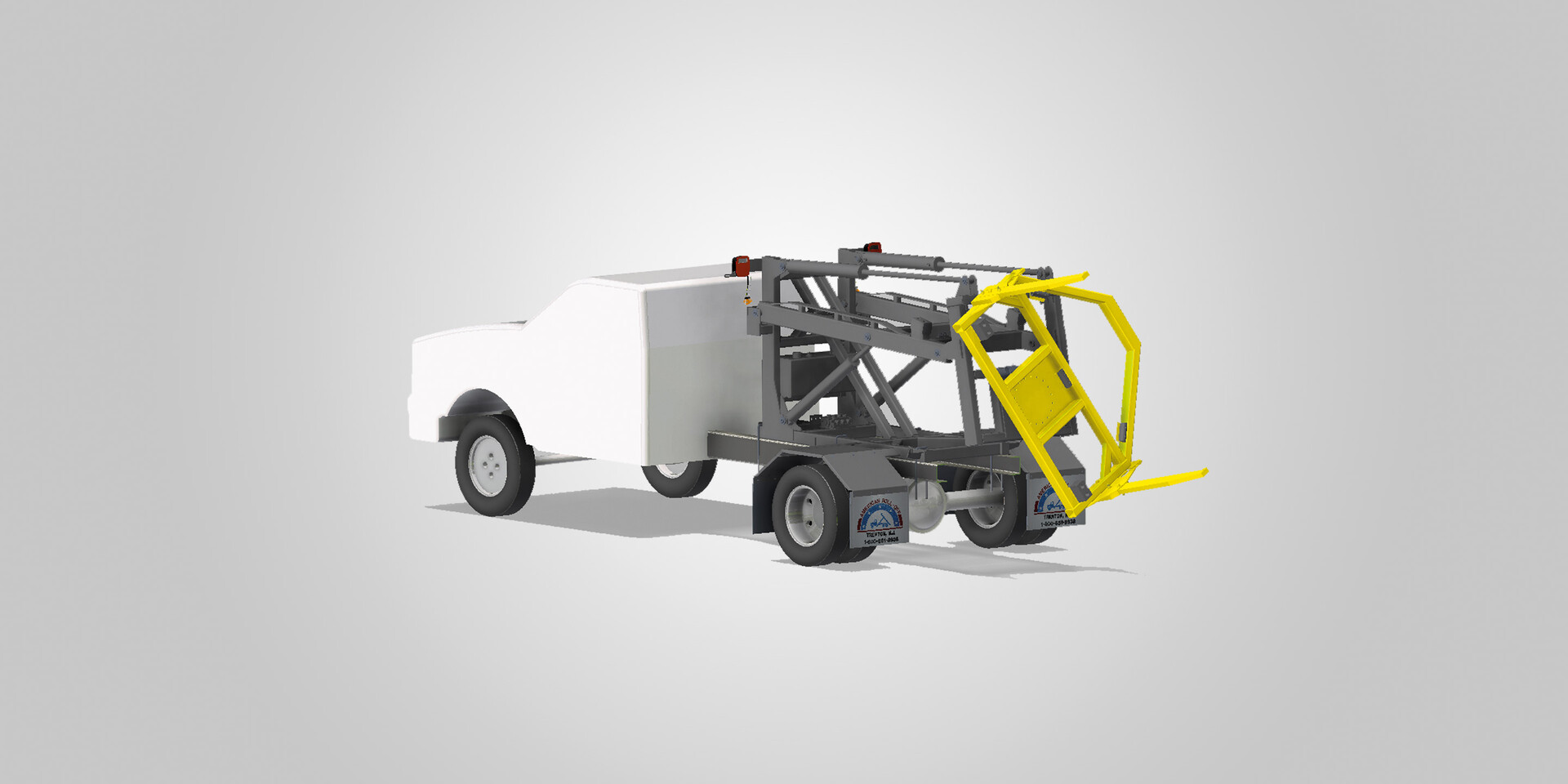

The model CC 80R container carrier includes all of the features of the standard model CC 80, but includes a 360˚ hydraulically actuated rotator -- adding versatility on the job. The rotator permits containers to be inverted for emptying, washing or maintenance.
OPTIONS INCLUDE:
| Lifting Capacity | 8000 lb |
| Rotating capacity (360° bi-rotational) | 8000 lb |
| Weight (approx.) | 2800 lb |
| Forks (heat treated - bolt on) | 1-1/2" x 48" |
| Control valve | 3 spools |
| Operating pressure | 3000 psi |
| Hydraulic tank | 10 gal. |
| Lift cylinders | 3-1/2" |
| Tilt Cylinders | 4" |
| Optimum C/A | 84" |
| Recommended GVWR | 24000 lb |
| Container sizes | 2-10 cu. yd. |
| Shipping Weight | 2800 lb |
| Lifting Capacity | 3628 kg |
| Rotating capacity (360° bi-rotational) | 3628 kg. |
| Weight (approx.) | 1270 kg |
| Forks (heat treated - bolt on) | 1-1/2" x 48" |
| Control valve | 3 spools |
| Operating pressure | 3000 psi |
| Hydraulic tank | 37.8 l |
| Lift cylinders | 3-1/2" |
| Tilt Cylinders | 4" |
| Optimum C/A | 84" |
| Recommended GVWR | 24000 lbs |
| Container sizes | 2-10 cu. yd. |
| Shipping Weight | 1270 kg |
