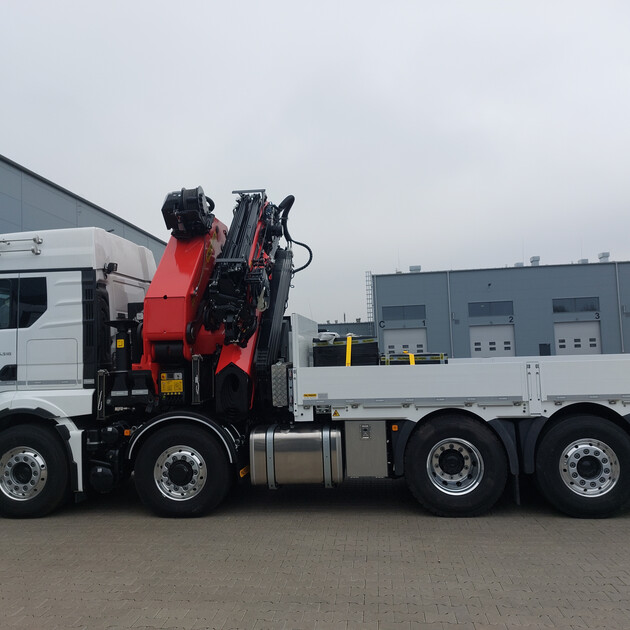

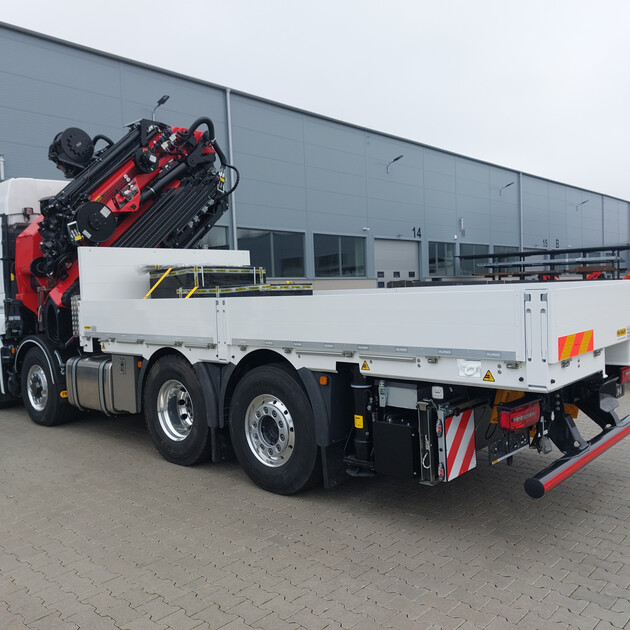

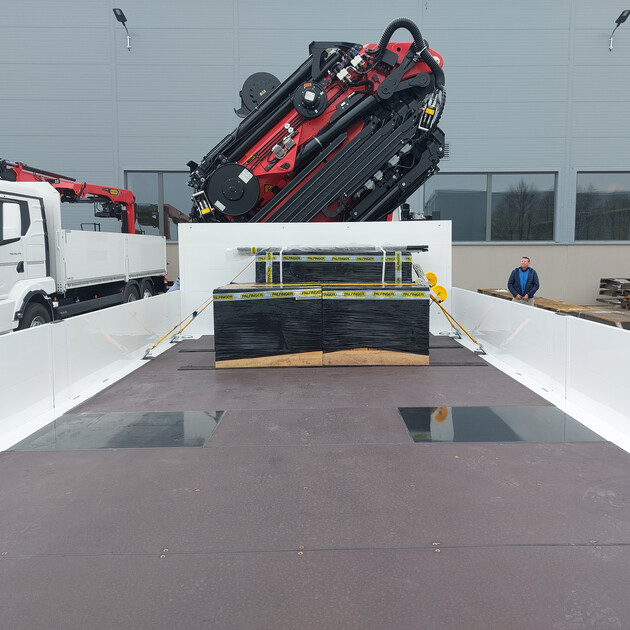

PK 92.002 SH

Specification

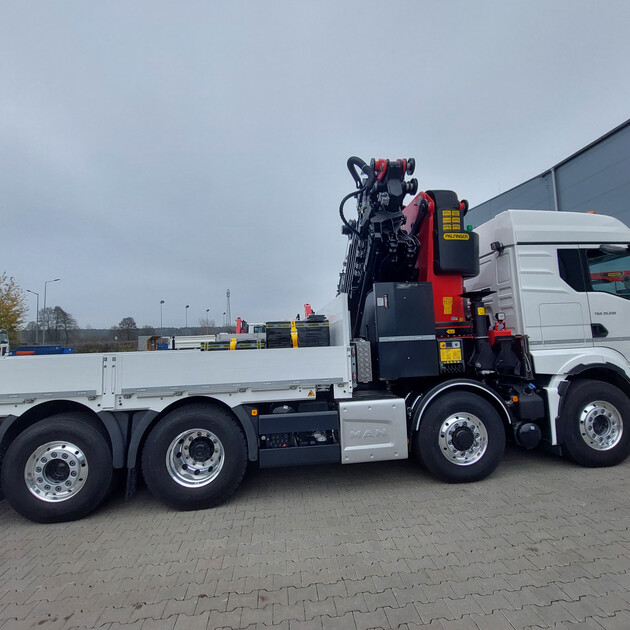

PK 92.002 SH

- Hydraulic 7-fold extension

- High-speed extension system with return oil recovery

- Endless swivel range

- Hydraulic support leg extension (max.support width 8,600mm)

- Additional hydraulic support (max.support width 8,500mm)

- Support legs can be swiveled hydraulically through 180 °

- Paltronic 150

- HPSC + LOAD

- P-FOLD

- PALcom P7 radio remote control (8L linear lever)

- Painting RAL3020

- Work lights on the articulated arm and on the fly jib (PJ170-E)

- Hose equipment for two additional devices including quick coupling (multi-faster)

- 3.5t cable winch on the main arm (can be folded down hydr.), Cable length: 90m

- 2-strand rope harness for crane operation with fly jib

- Automatic rope tensioning device (RTC) and rope winch synchronous control (SRC)

- Preparation for work basket operation

- 8.0t and 25t load hooks

PJ170-E (additional knuckle arm)

- Hydraulic 6-fold extension

- Can be folded upwards by 25 ° hydraulically

- Preparation for work basket operation

- Applications with additional devices possible (e.g. gripper, rotator ...) including quick coupling (multi-faster)

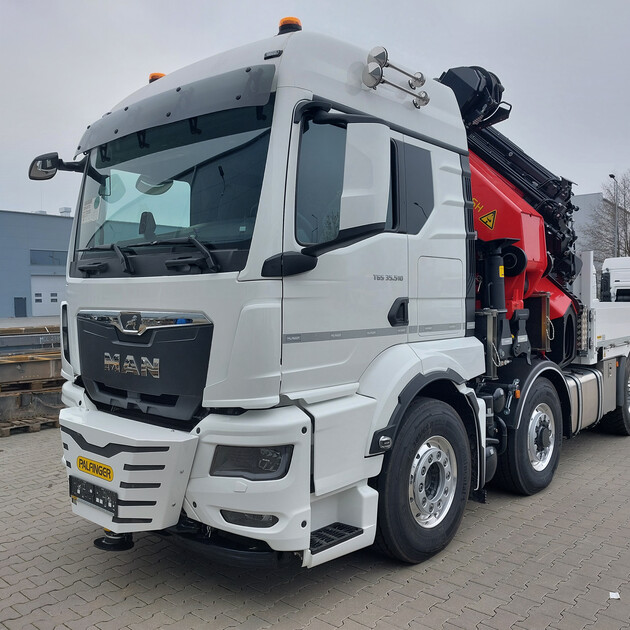

MAN

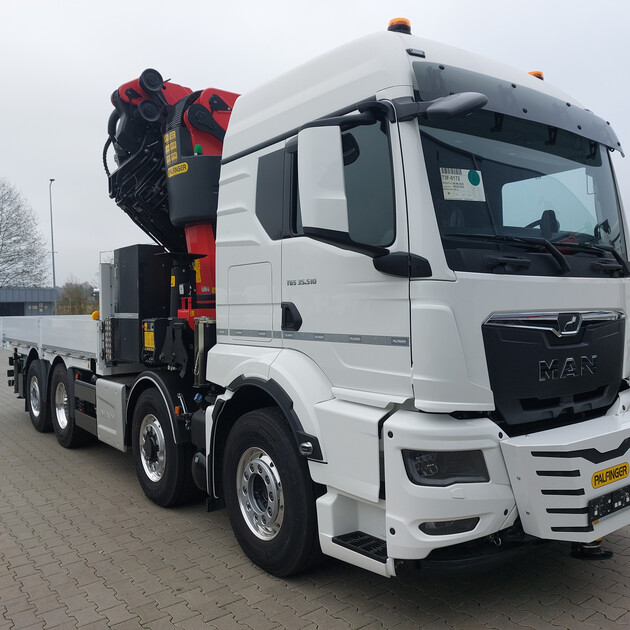

- TGS 35.510 8x4H-6 BL CH

- 510PS / 2600Nm

- Leaf suspension 1st and 2nd axis / air suspension 3rd and 4th axis

- HydroDrive 2nd axis

- Fuel tank 390l / AD-Blue 35l

- Tires 1st 2nd and trailing axle 385/65 R22.5

- Drive axle tires 315/80 R22.5

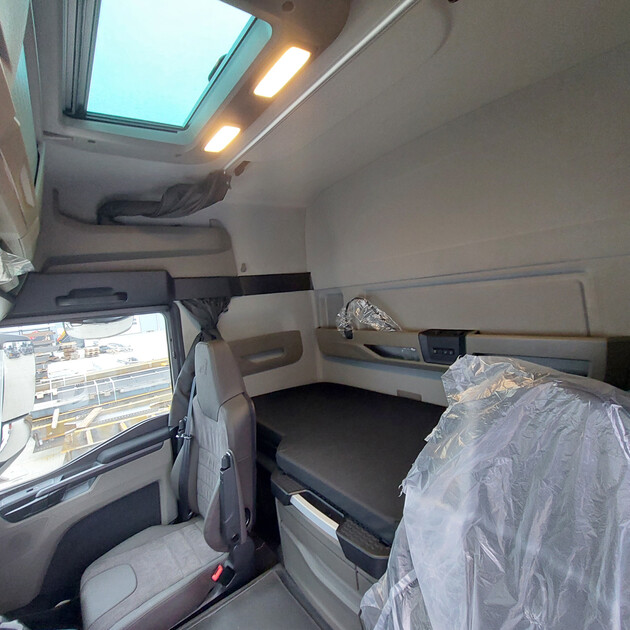

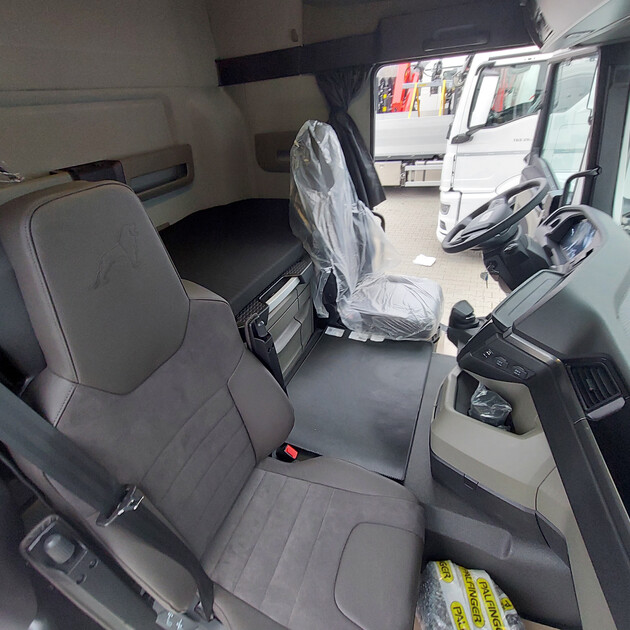

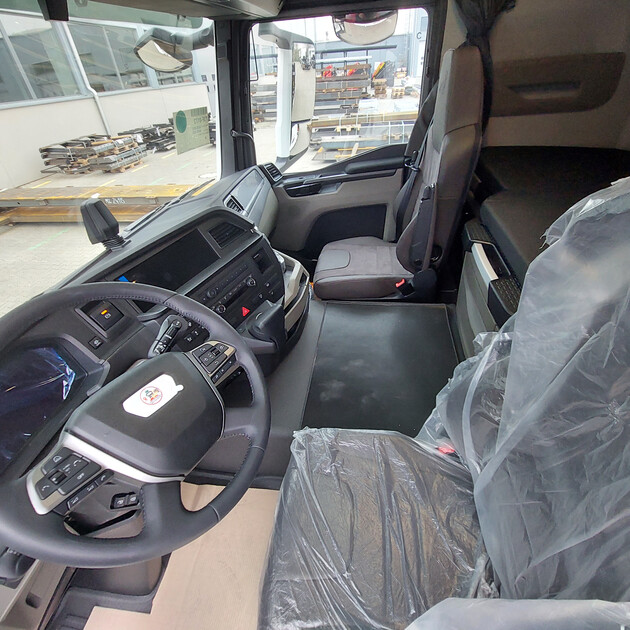

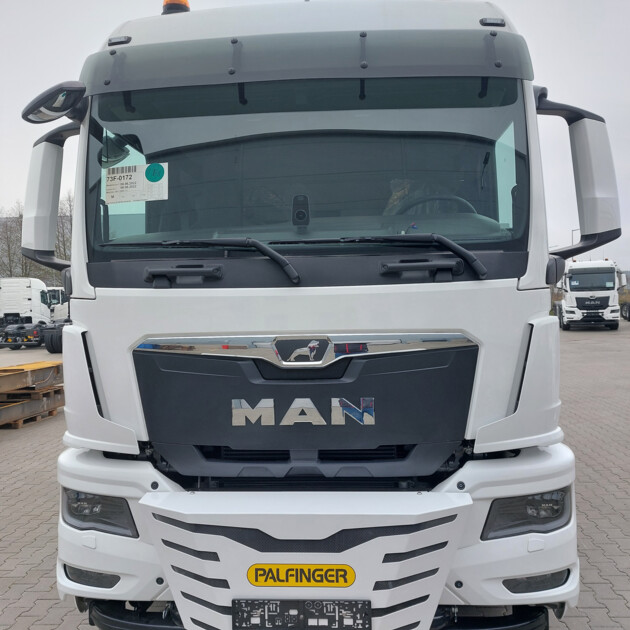

- Cabin color: Traffic White RAL9016 / Chassis color: Graphite Black RAL9011

- Hanger supply electrical and compressed air

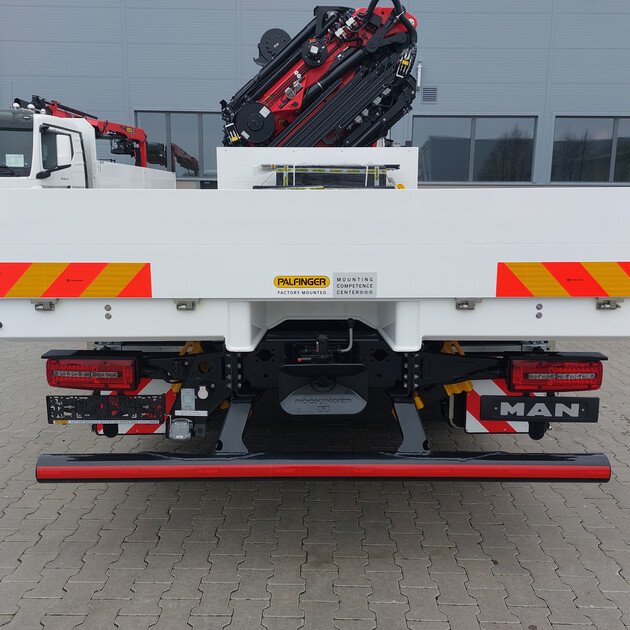

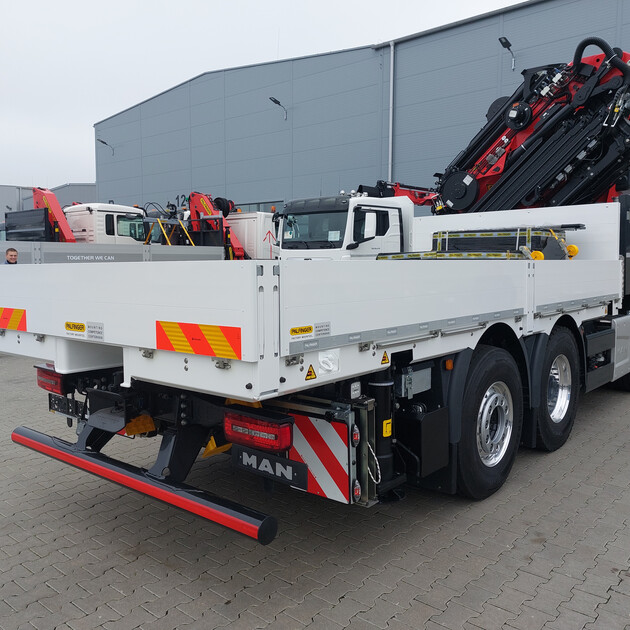

- ROCKINGER towbar type 400 G 150A
