PK 135.002 TEC7

Specification

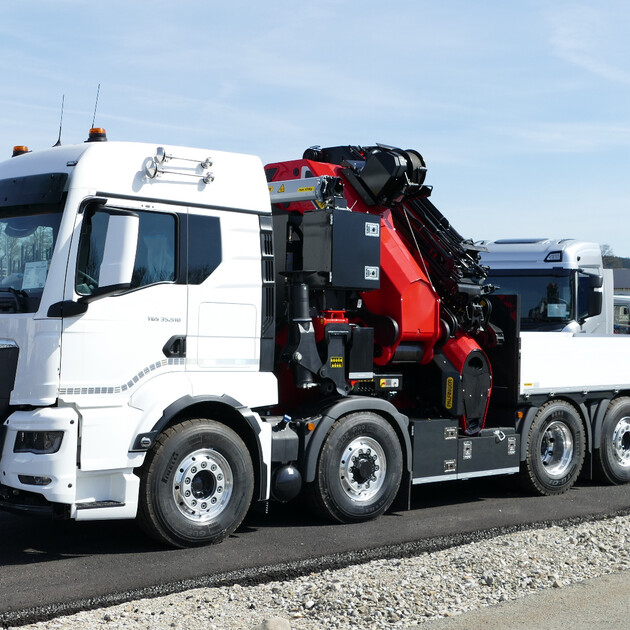

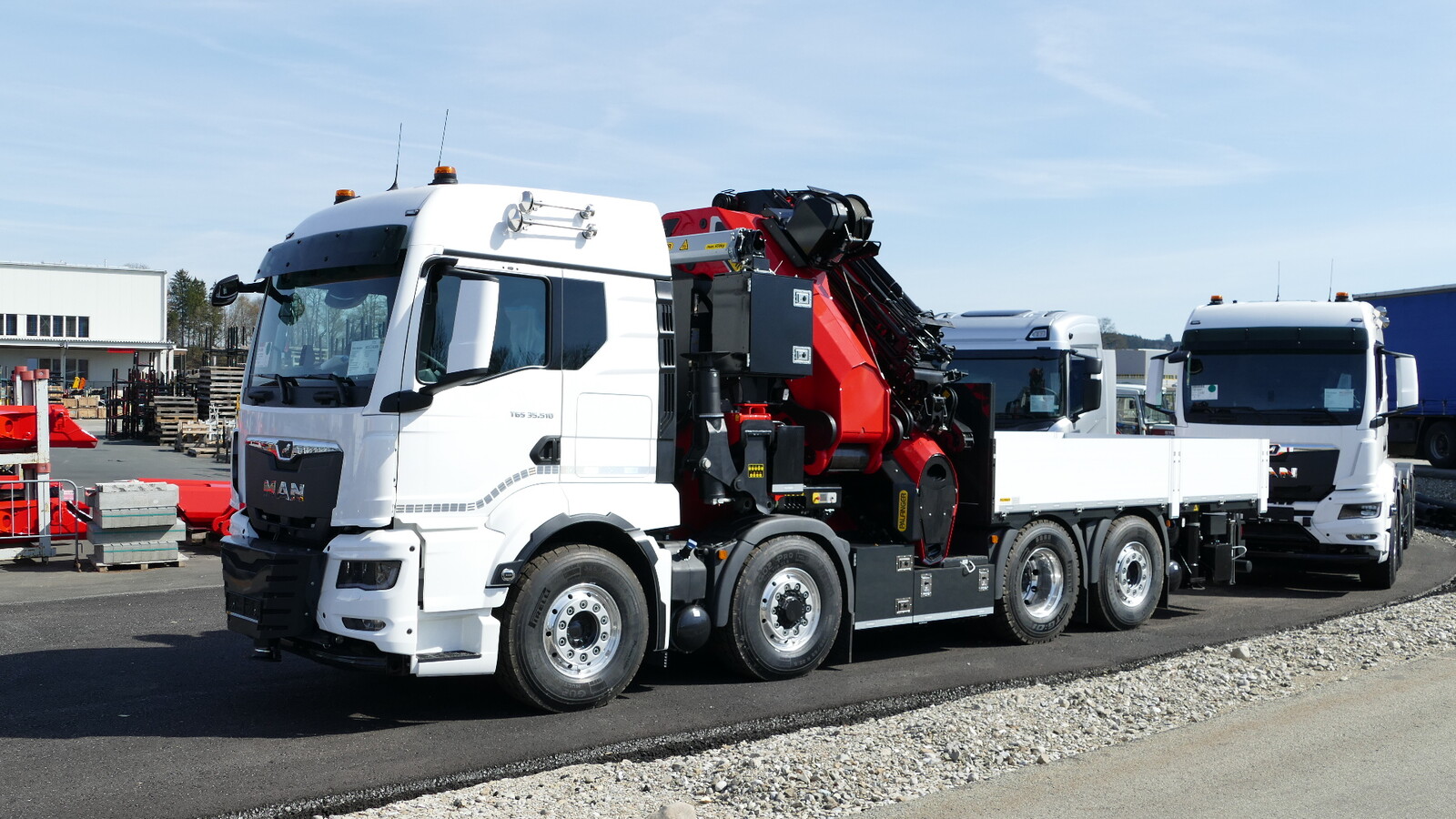

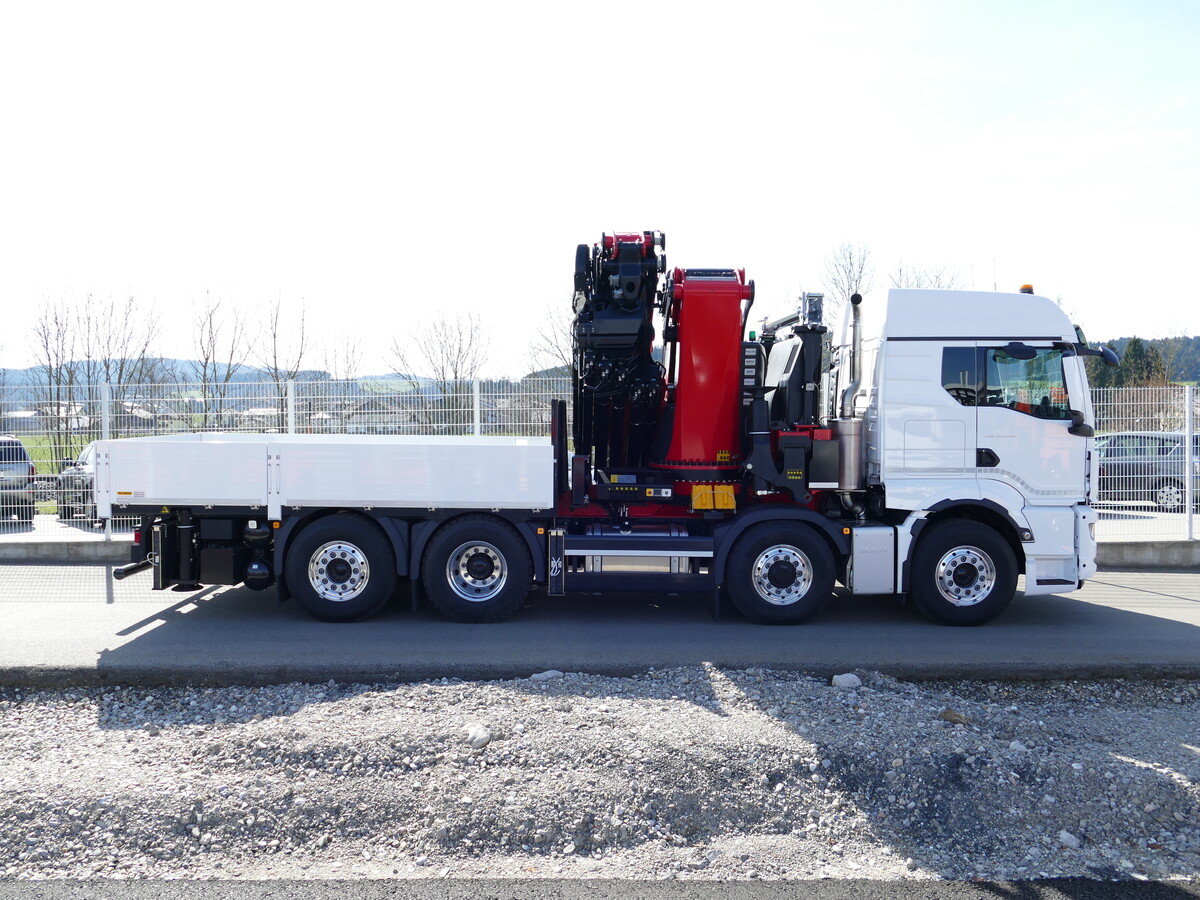

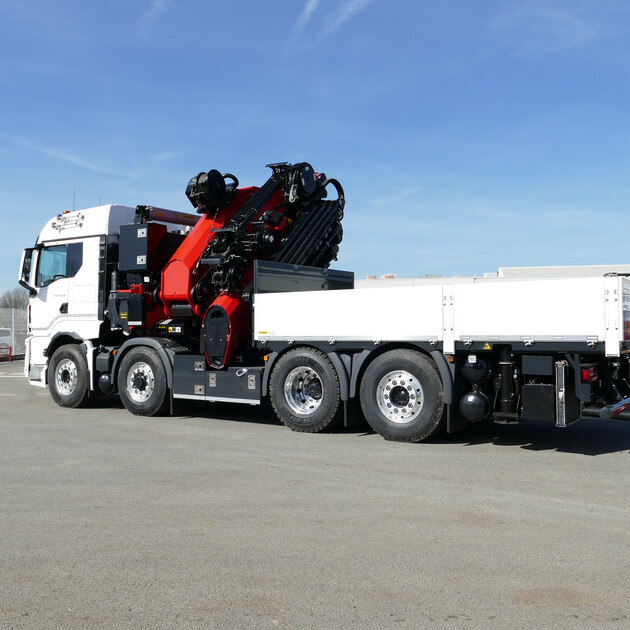

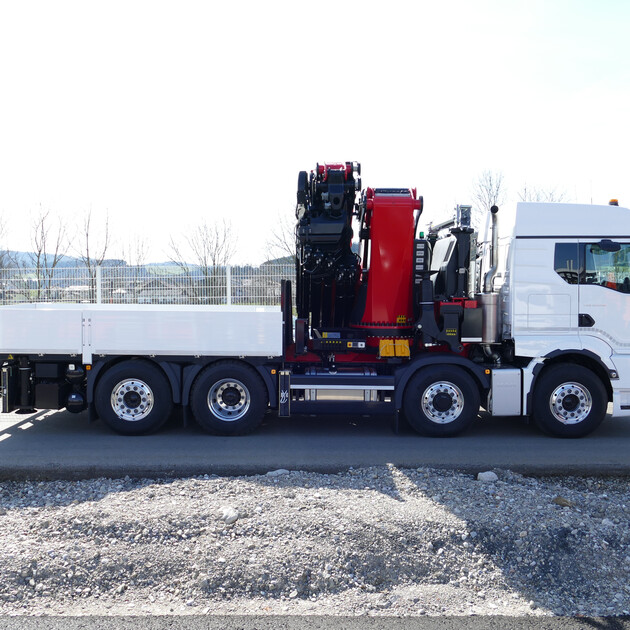

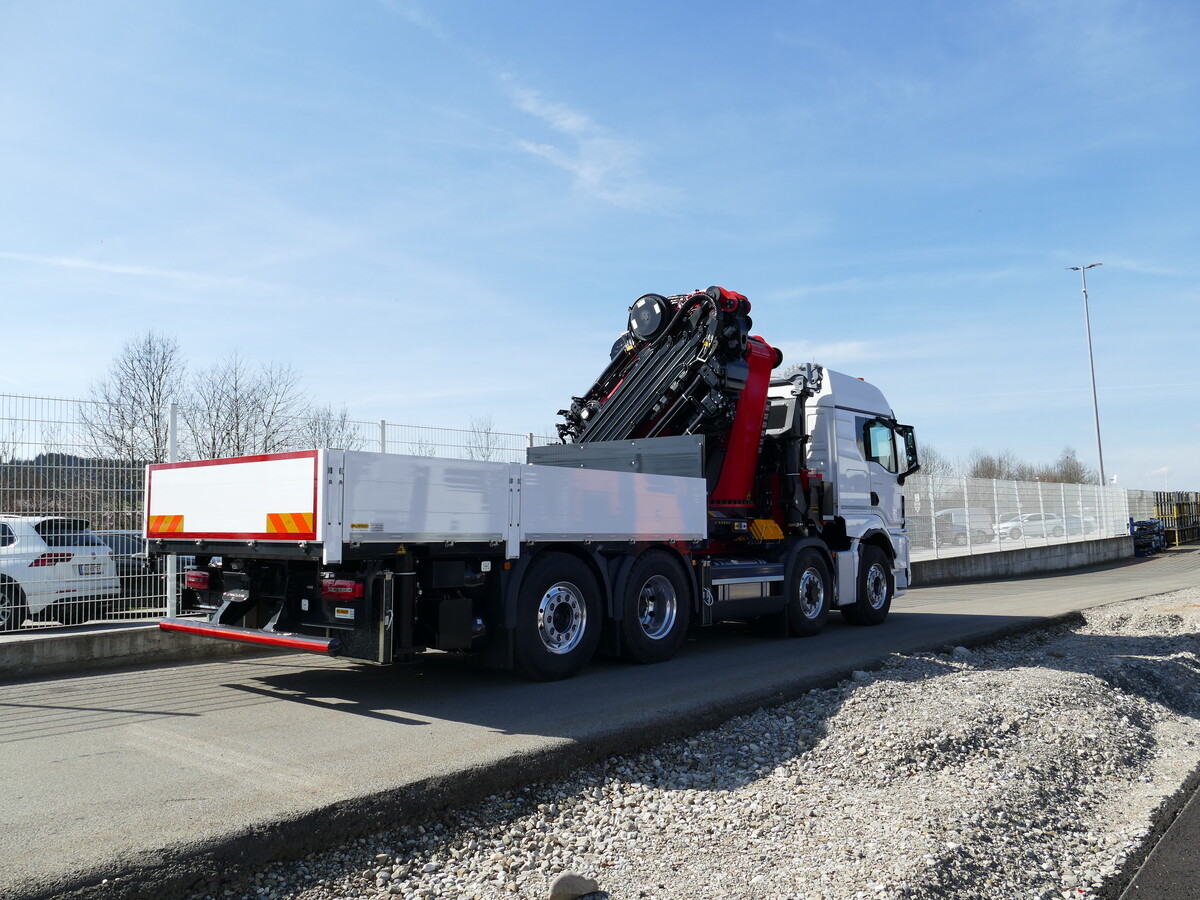

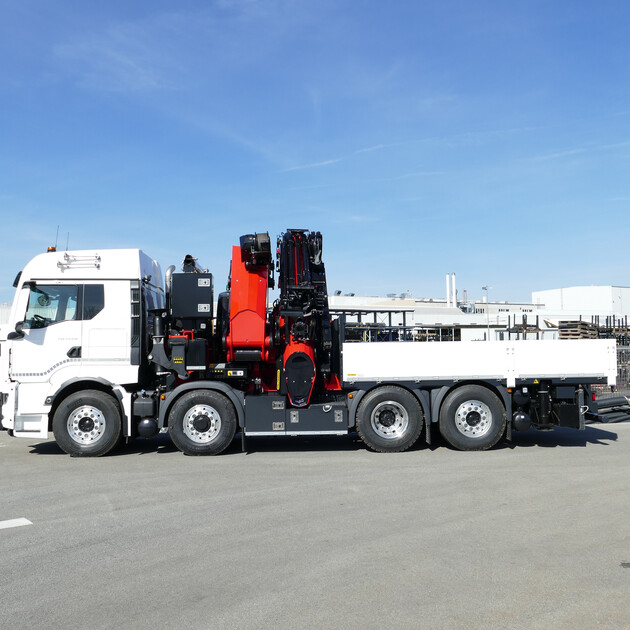

Crane: PK 135.002 TEC7

-      Hydraulic 8-fold extension

-      High-speed extension system with return oil recovery

-      Swivel range endless

-      Hydraulic support leg extension (max. support width 10.000 mm)

-      Additional hydraulic support (support width ca. 8.500 mm)

-      Support legs can be swiveled hydraulically through 180 °

-      Paltronic 150

-      HPSC + LOAD

-      Palcom P7 radio remote control/ /9 functions with cross levers

-      Painting RAL3020

-      Working lights on the articulated arm and on the fly-Jib

-      Hose equipment for two additional devices including quick coupling (multi-faster)

-      3,5to- cable winch on the main arm (hydr. foldable), cable length: 90m

-      Synchron control rope winch (SRC)

-      11,5to +18to load hook

Accessory: PJ190E (additional knuckle arm)

-      Hydraulic 6-fold extension

-      Can be folded upwards hydraulically by 25 °

-      Applications with additional devices possible (e.g. gripper, rotator ...) including quick coupling (multi-faster)

-      PJM 020 MFA-JIB (2 manual extensions)

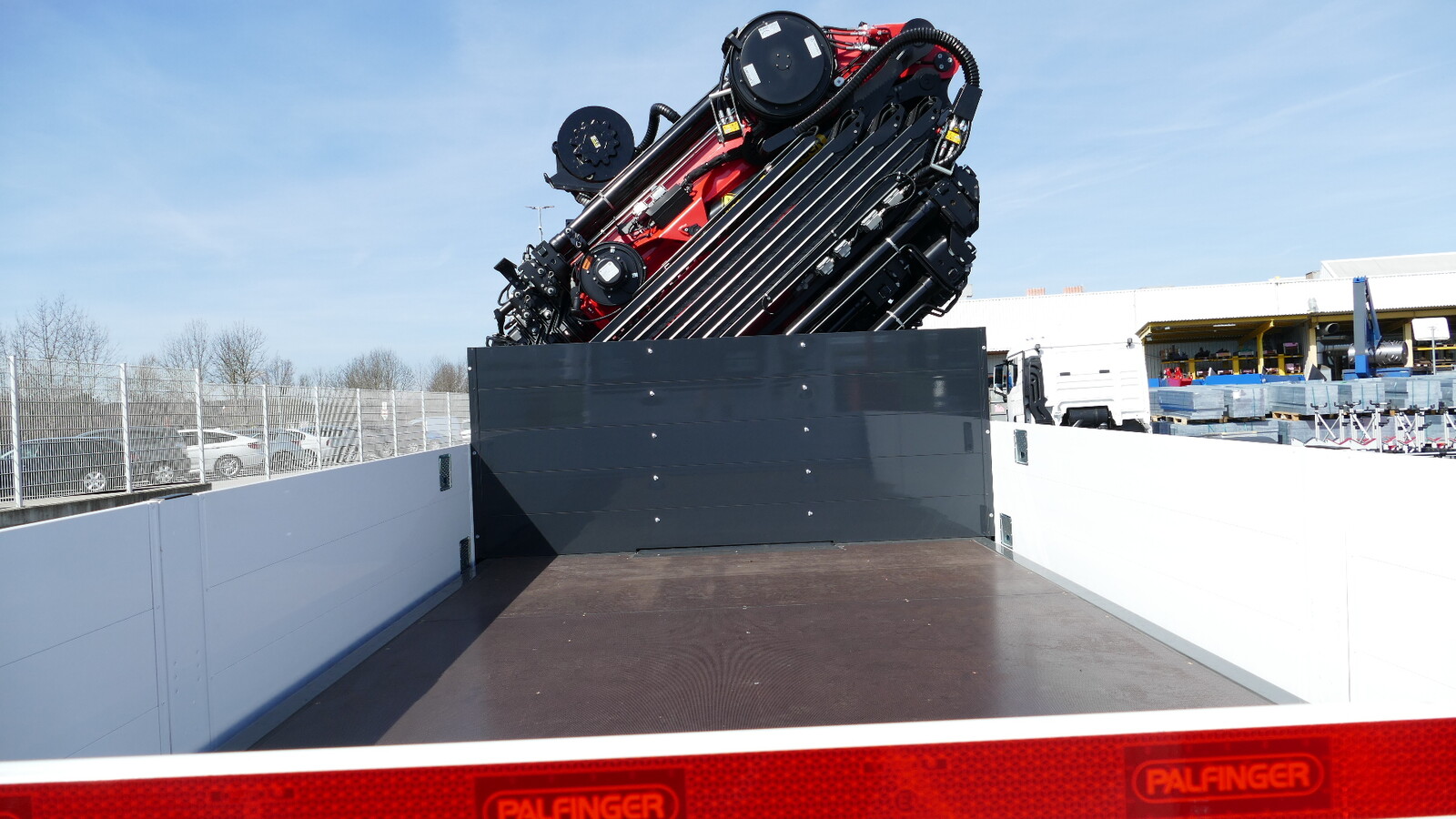

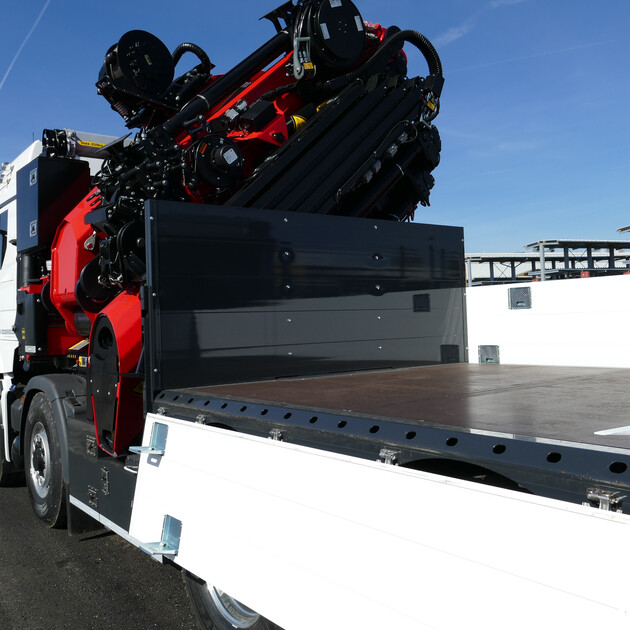

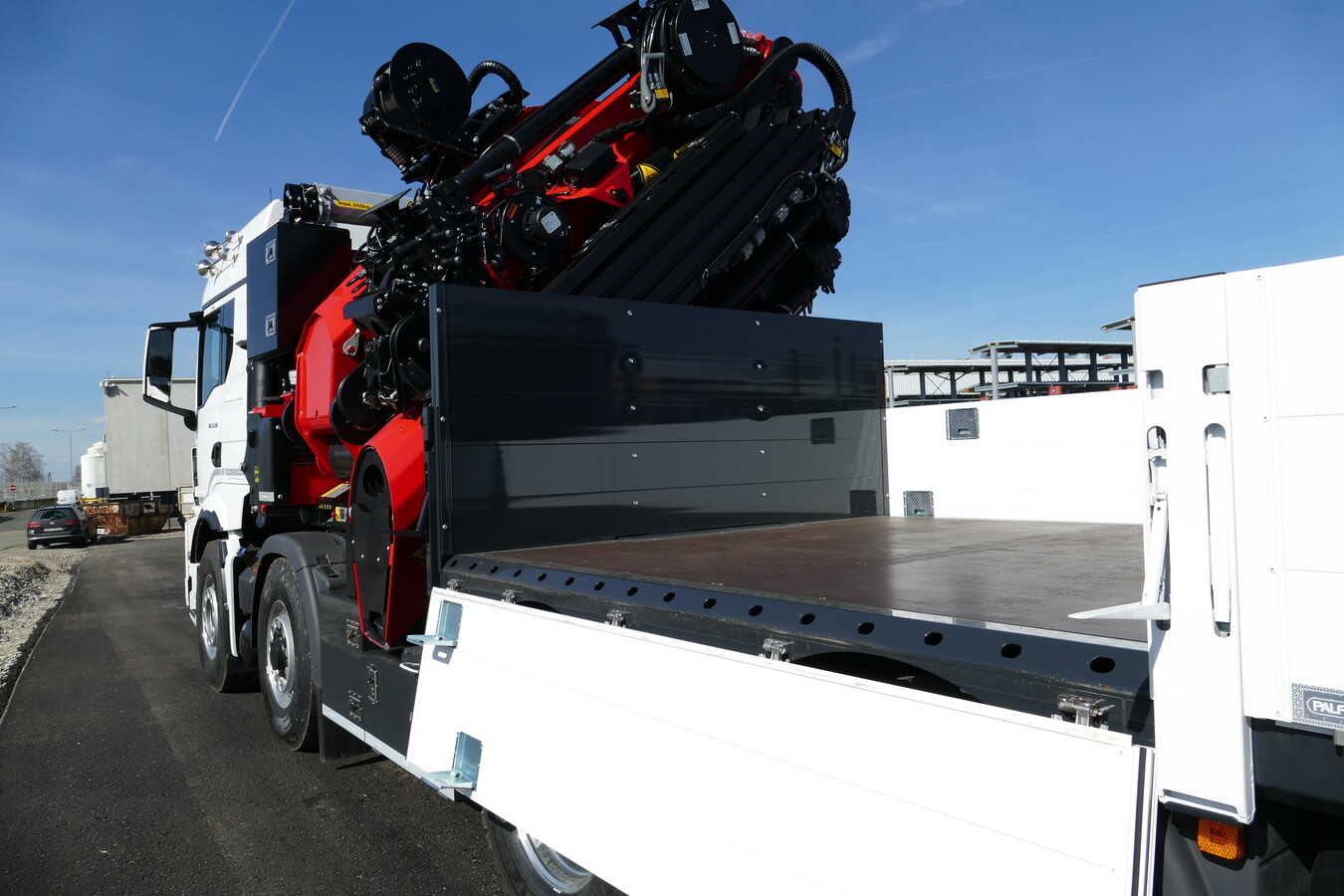

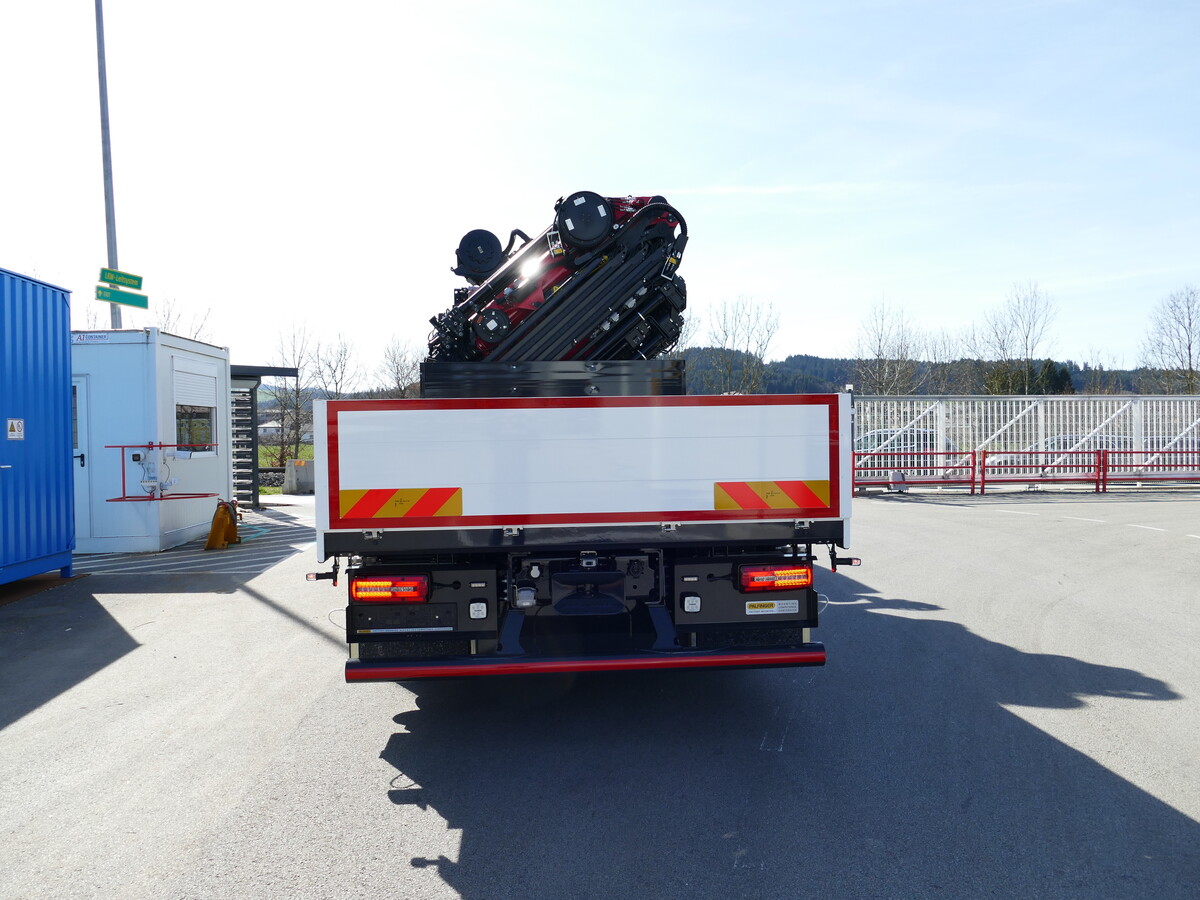

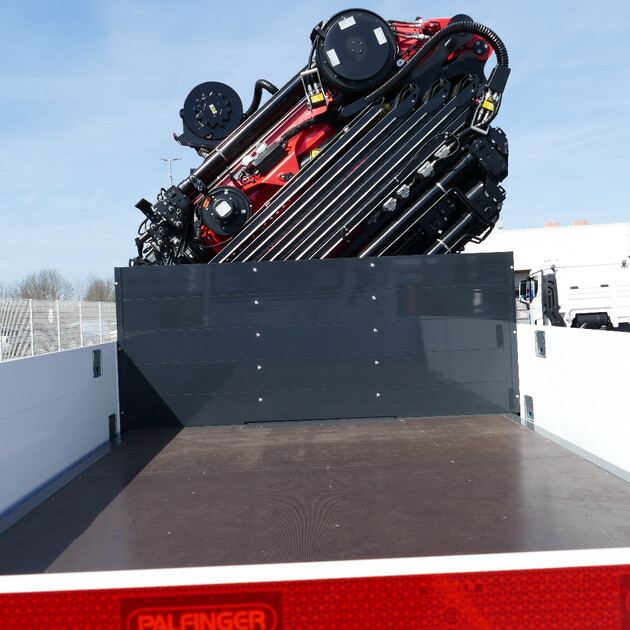

Platform:

-      Inner dimensions: 2480 x 4410 mm

-      Front wall: height 1000 mm

-      Side- and rearwalls height: 600 mm

-      Foldable steps at 2 positions

-      Platform floor 27 mm plywood

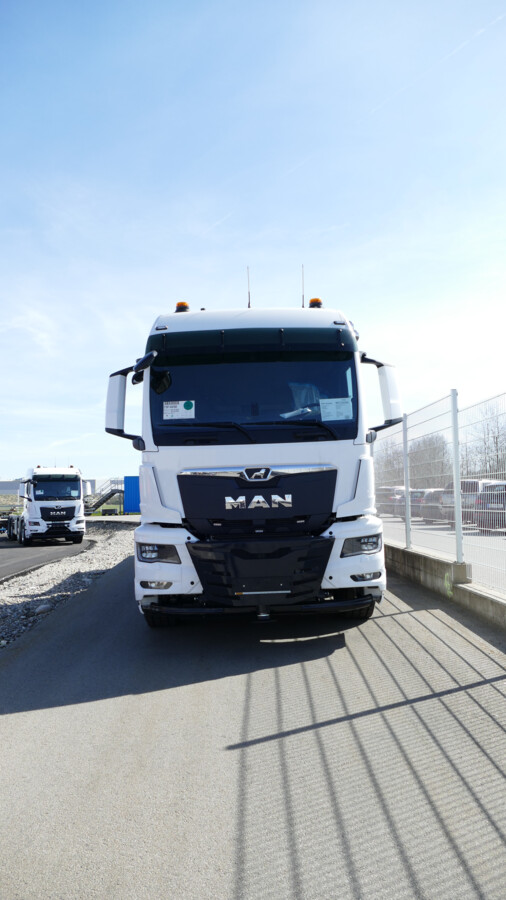

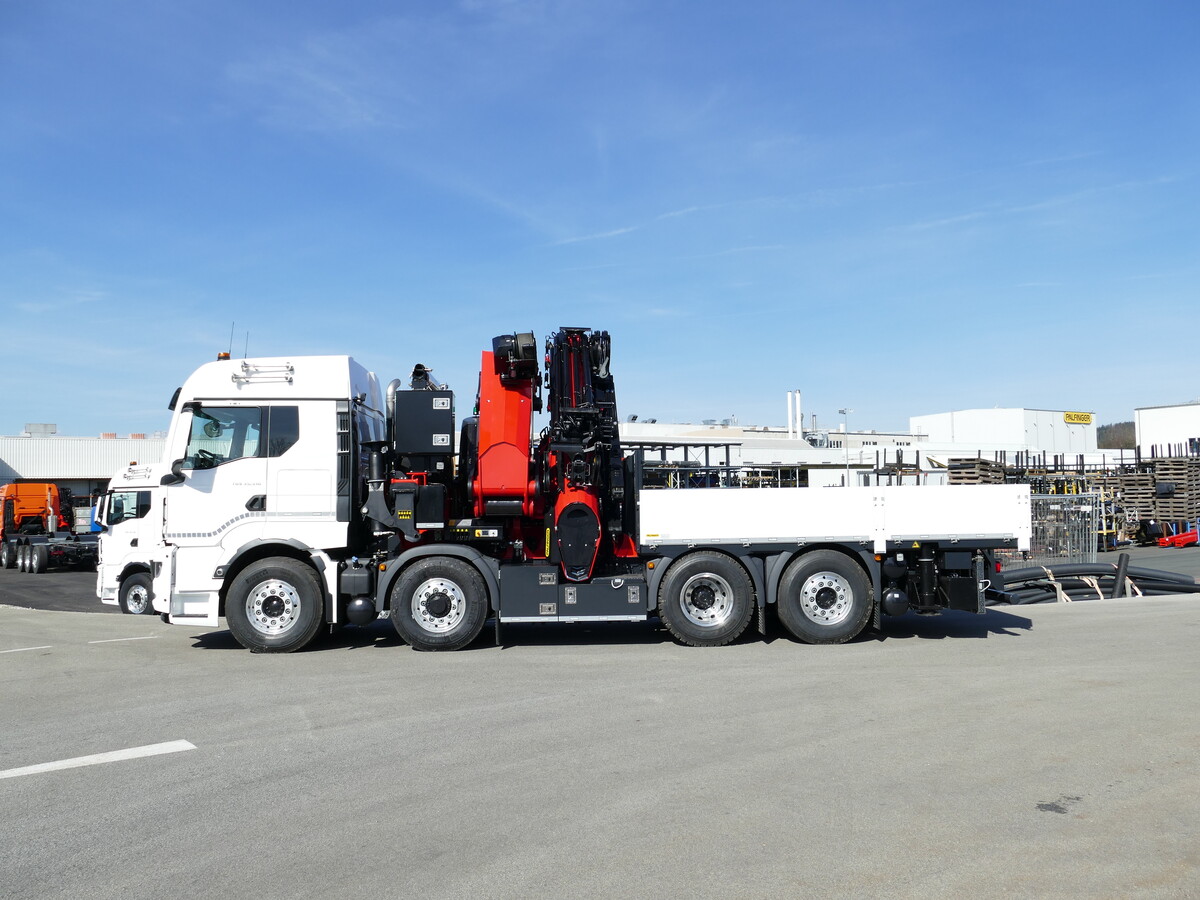

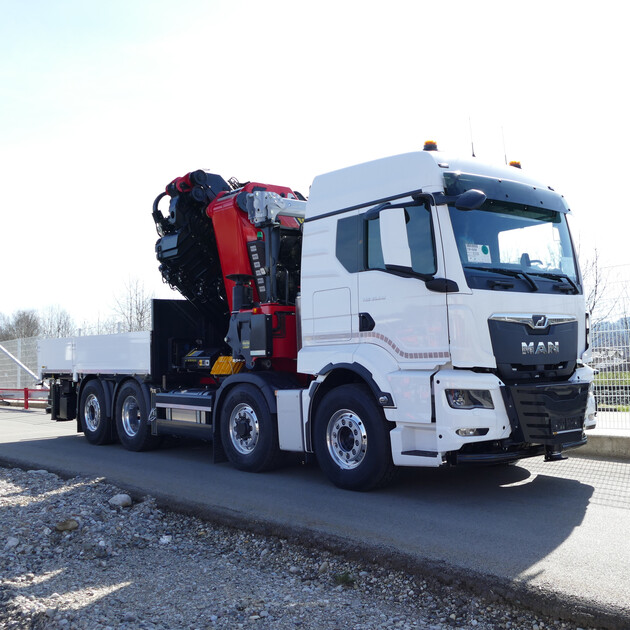

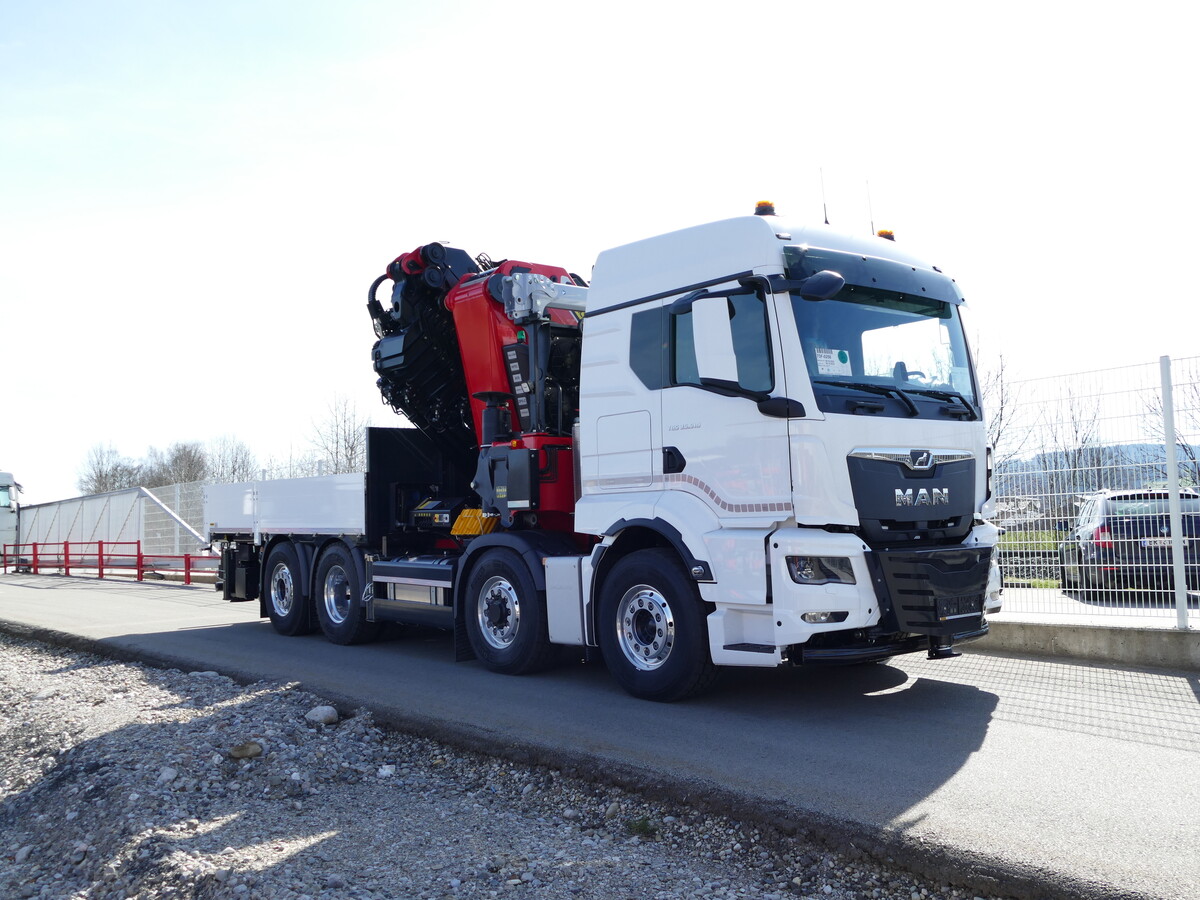

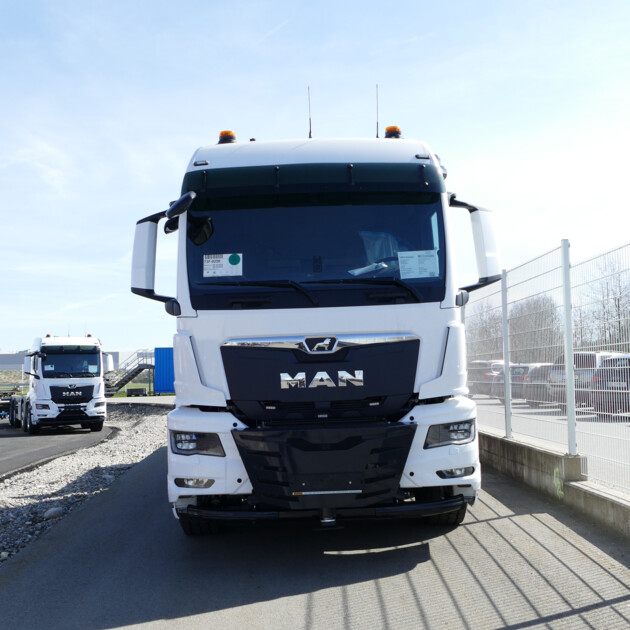

 Chassis: MAN TGS 35.510 8x4H-6BL

-      510PS , max. 2.600Nm

-      Automatic drive, MAN TipMatic 12.28 OD

-      Leaf suspension on front axles, air suspension on rear axles

-      Fuel tank 390l / AD-Blue tank 35l

-      Tyres rear axle 315/80R22,5

-      Tyres front axle 385/65R22.5

-      Cabin colour: RAL9016 traffic white / chassis colour: RAL9011 graphite black
