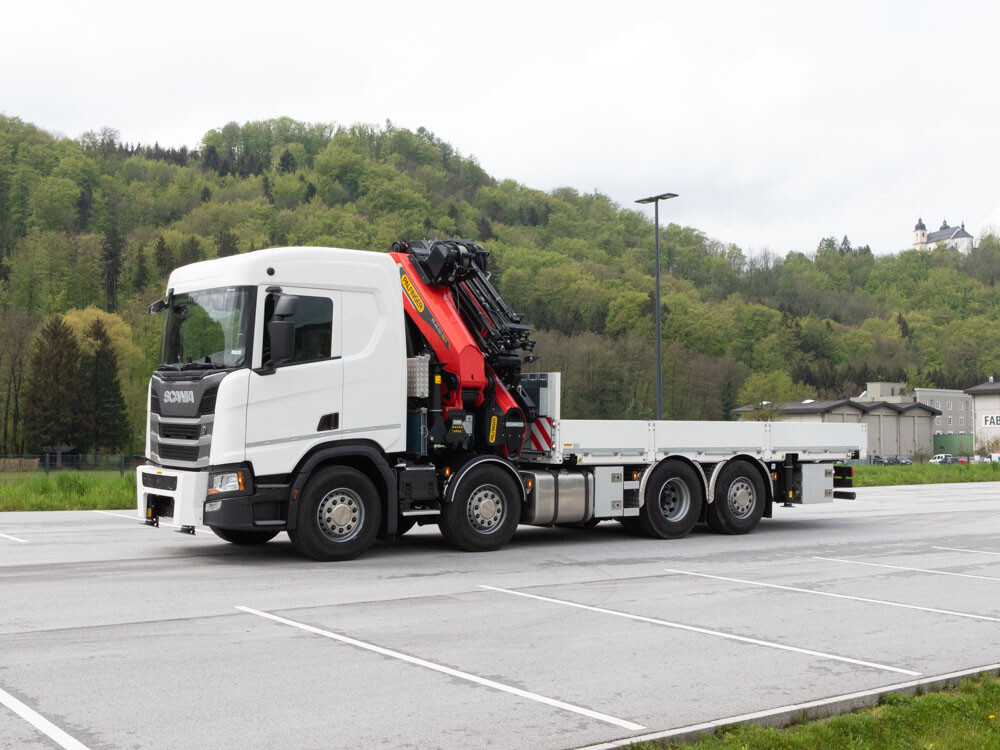

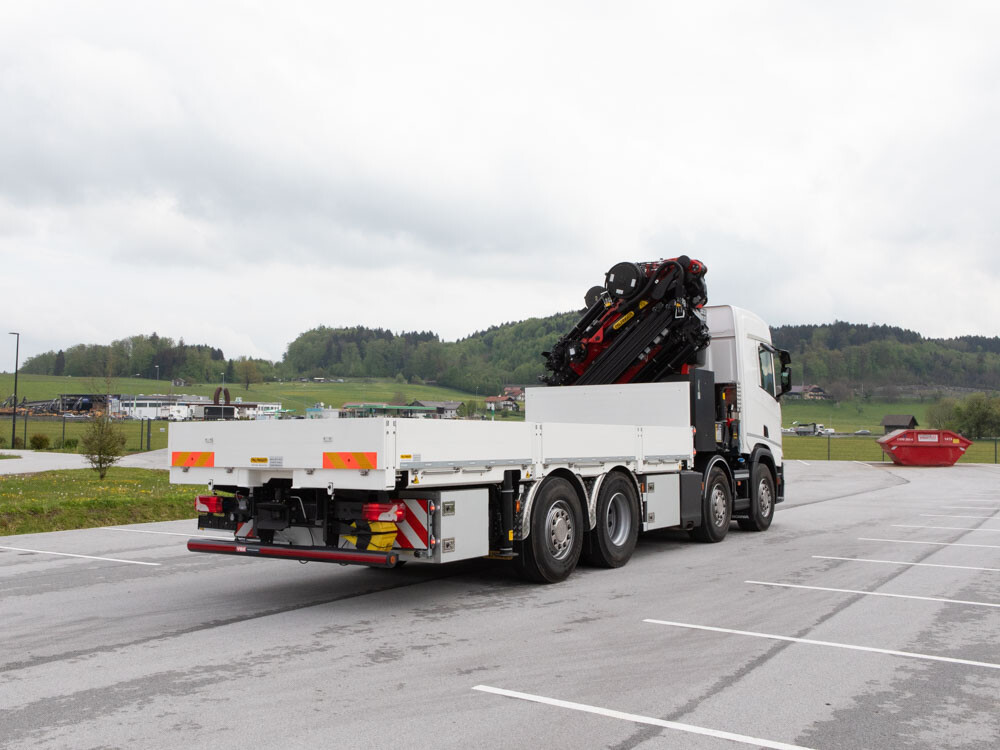

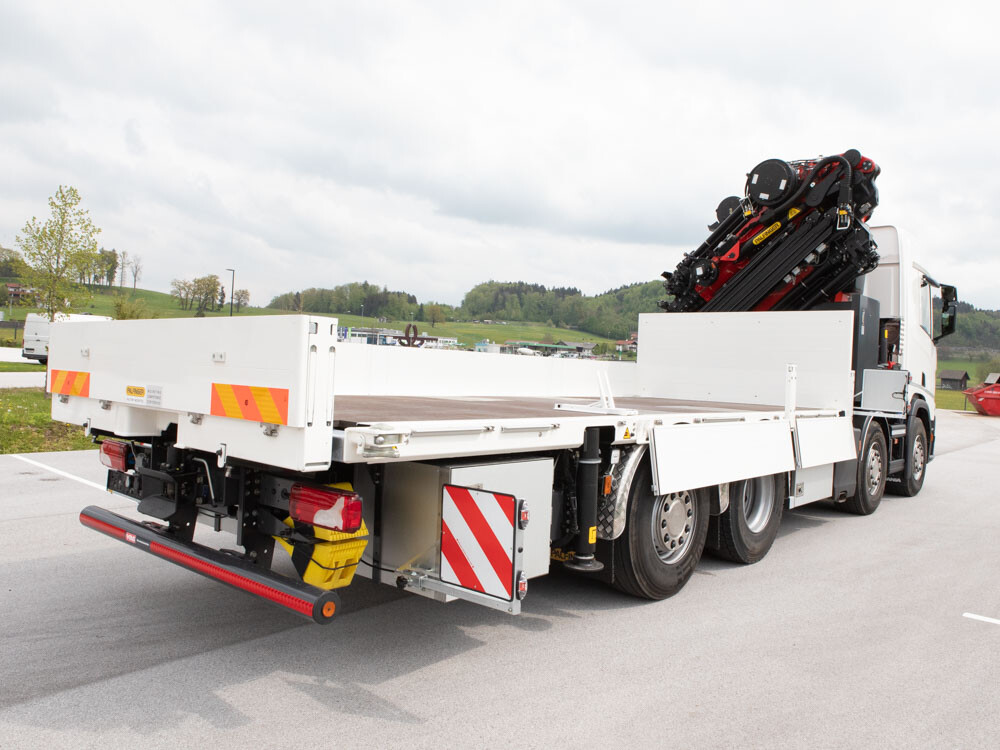

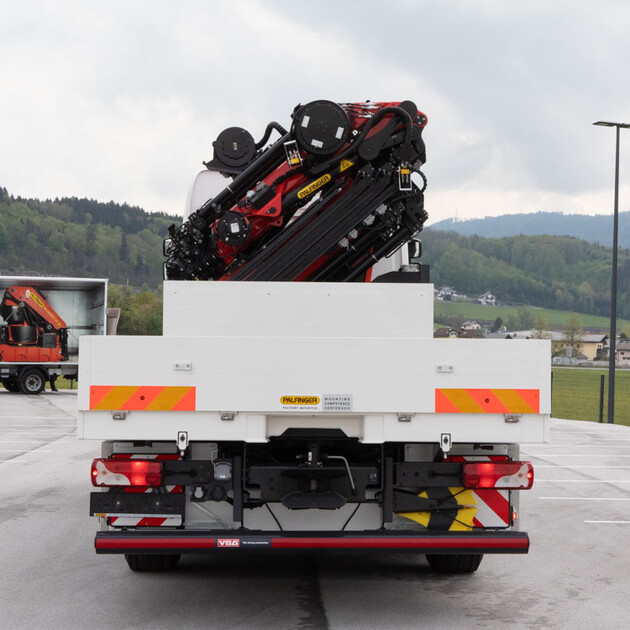

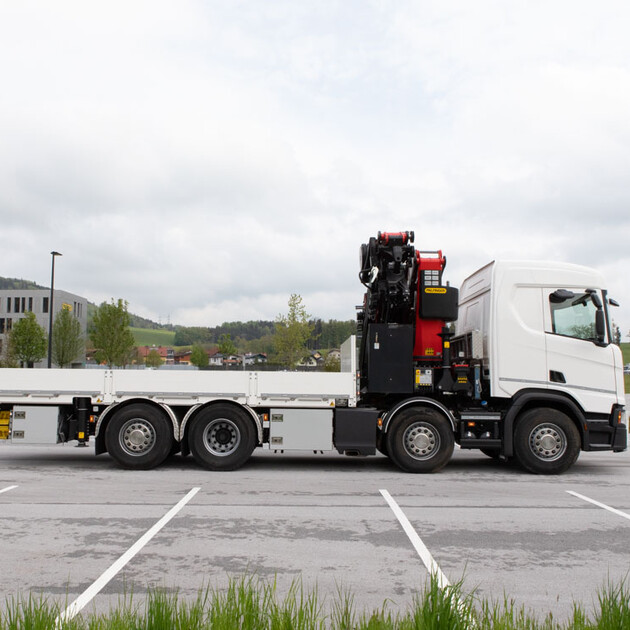

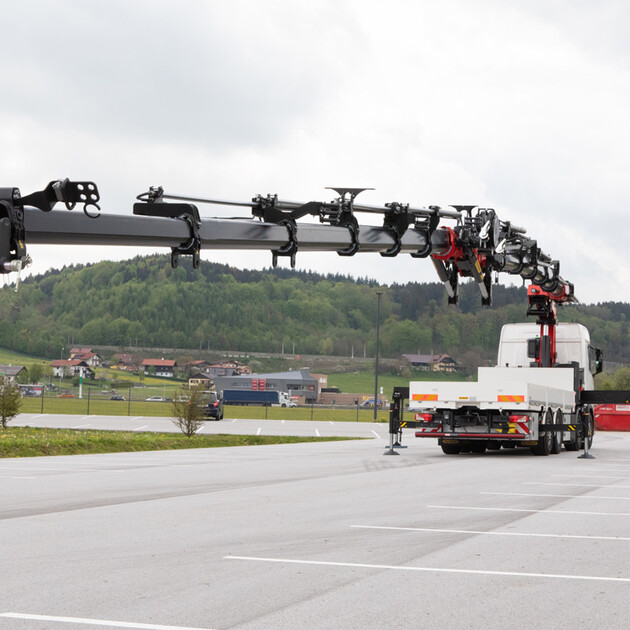

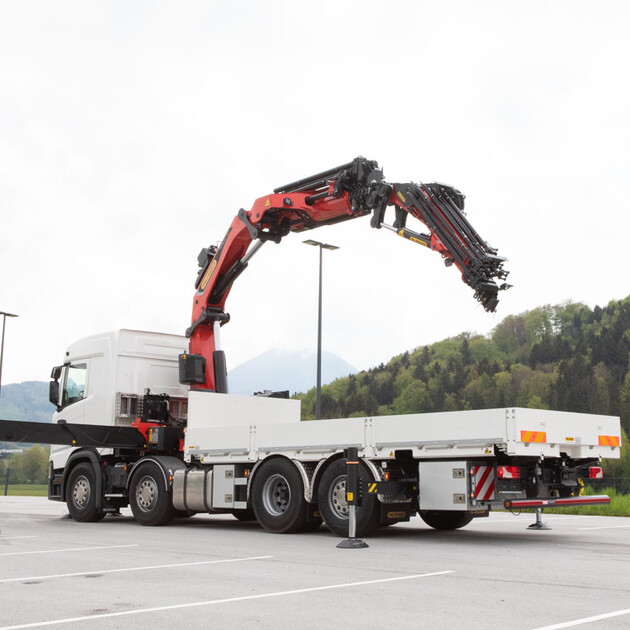

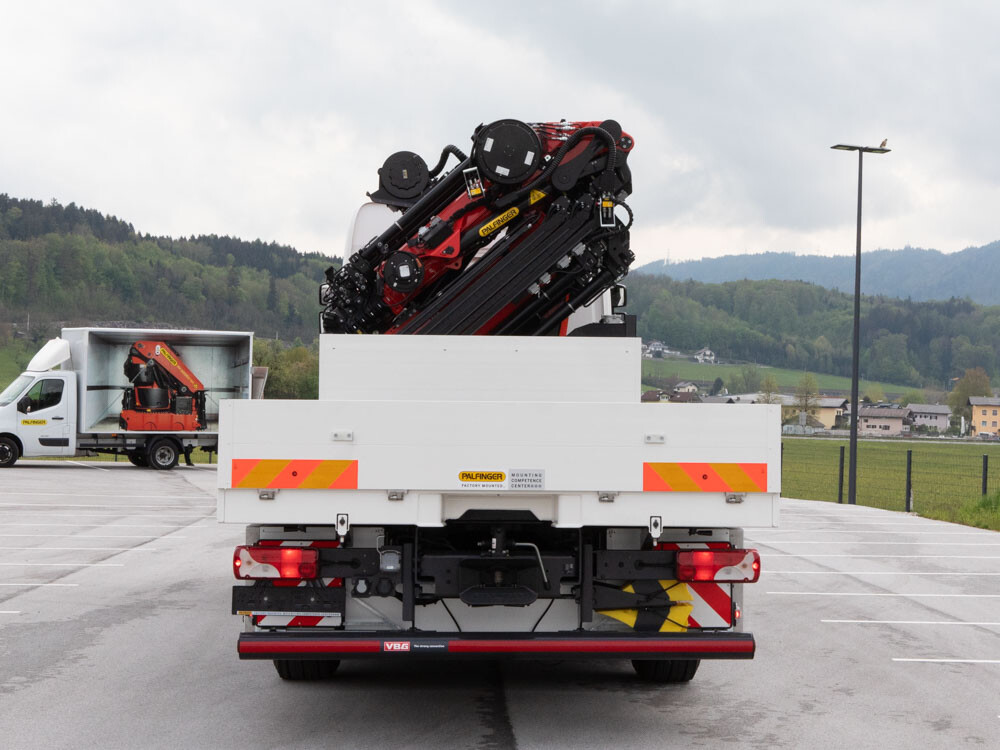

PK 48.002 TEC7

Specification

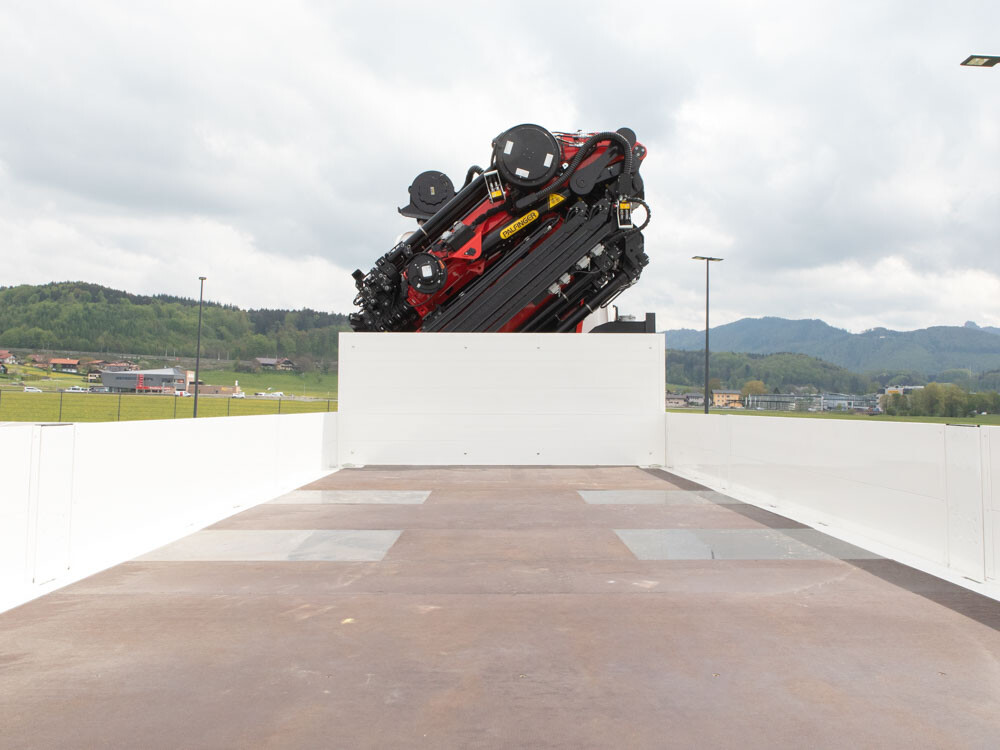

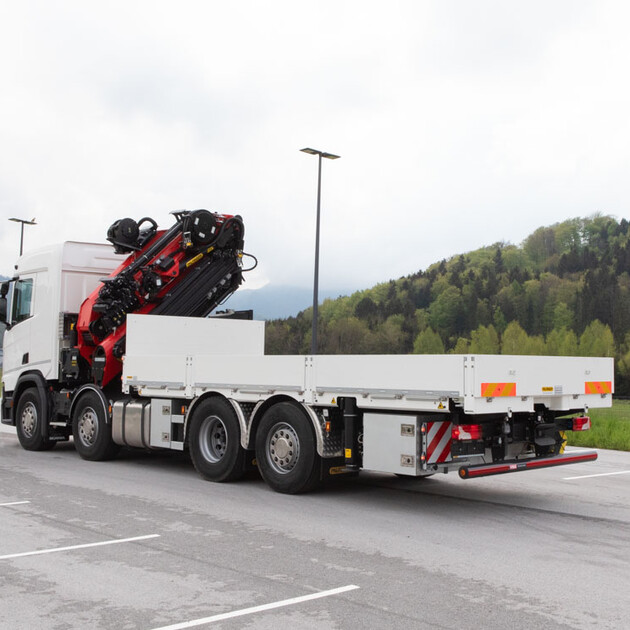

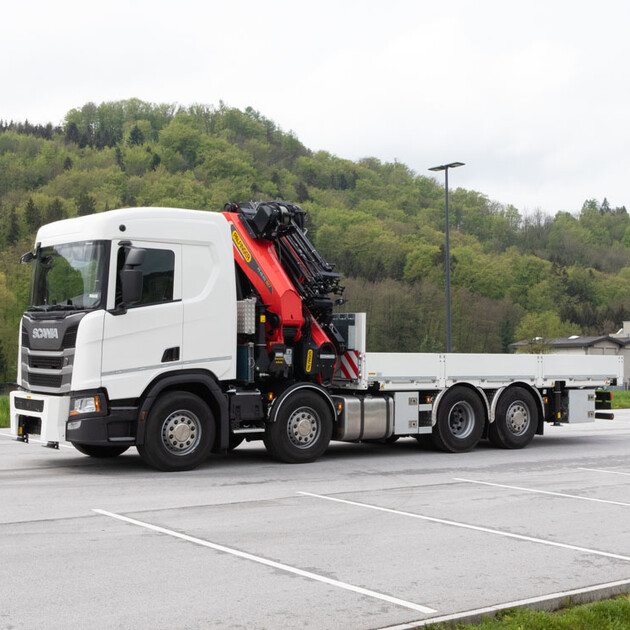

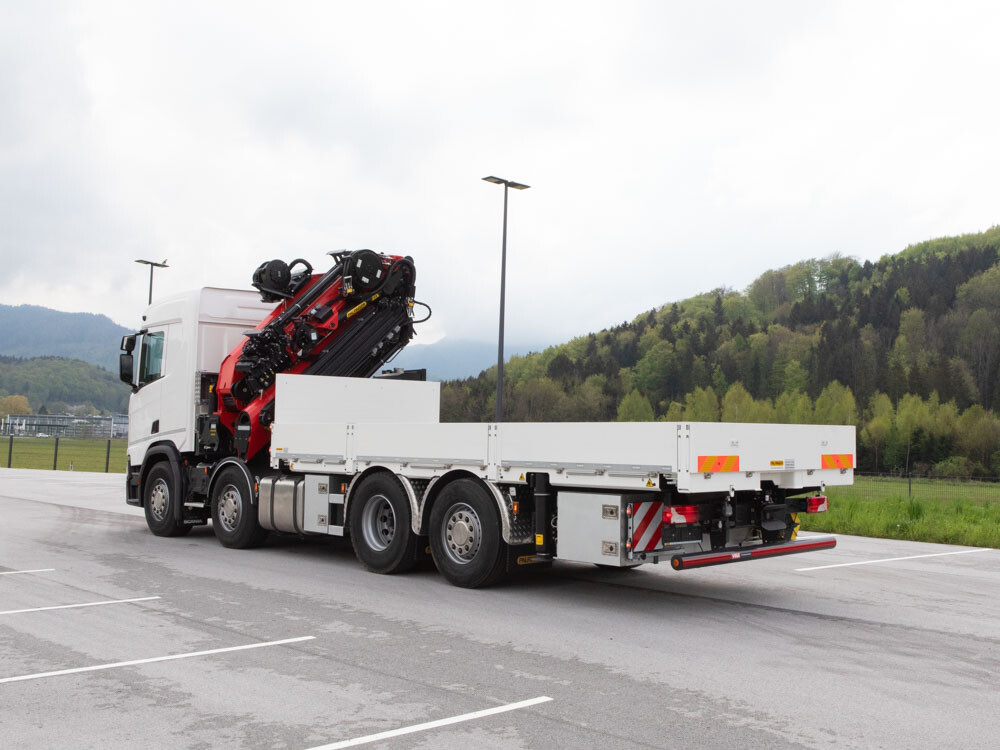

PK 48.002 TEC7

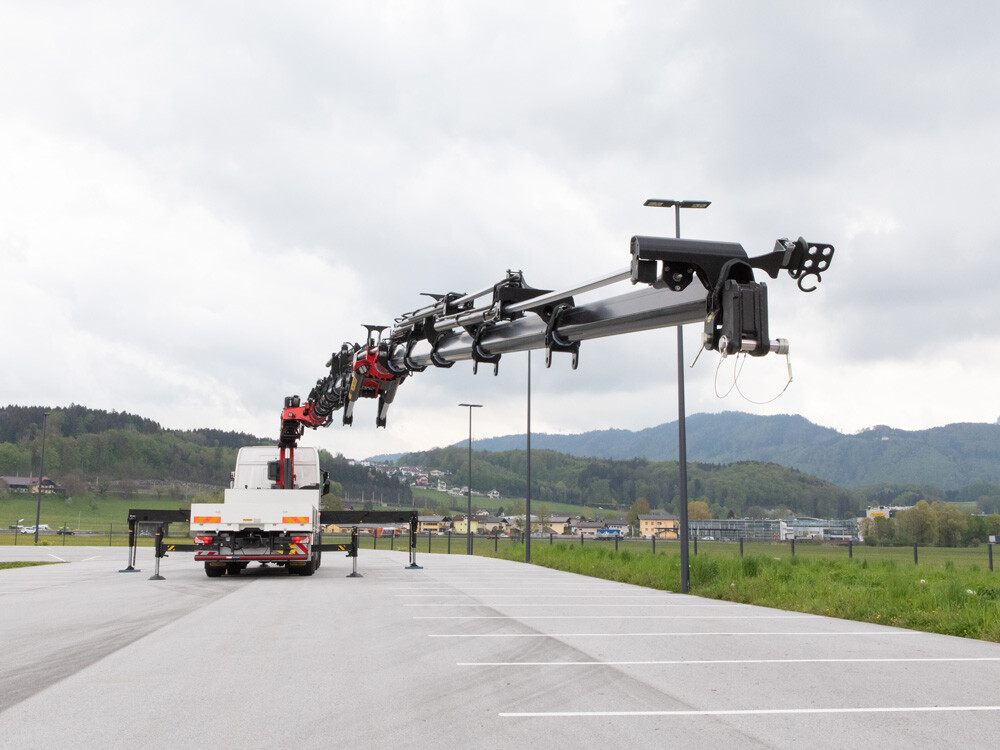

- Hydraulic 6-fold extension

- High-speed extension system with return oil recovery

- Endless swivel range

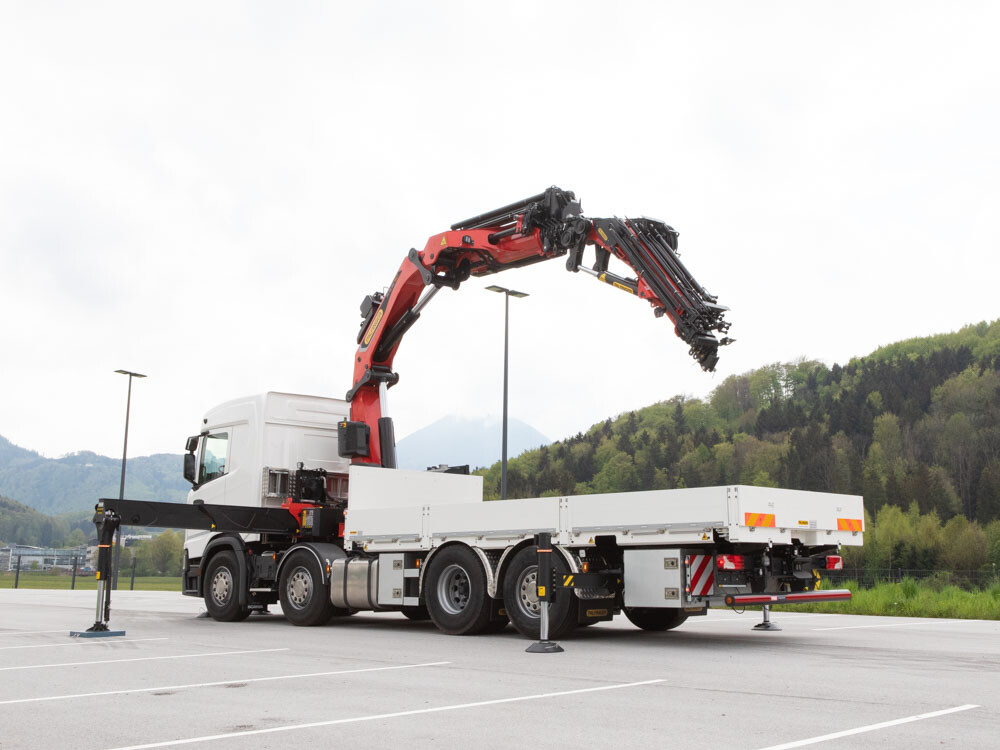

- Hydraulic support leg extension (max.support width 7,800mm)

- Additional hydraulic support (max.support width 4,400mm)

- Support legs can be swiveled hydraulically through 180 °

- Paltronic 150

- HPSC + LOAD

- P-FOLD

- PALcom P7 radio remote control

- Painting RAL3020

- Working lights on the articulated arm and on the fly jib (PJ150-E)

- Hose equipment for two additional devices including quick coupling (multi-faster)

- 2.5t cable winch on the main arm (can be folded down hydr.), Cable length: 65m

- 1-strand rope harness for crane operation with fly jib

- Automatic rope tensioning device (RTC) and rope winch synchronous control (SRC)

- Preparation for work basket operation

- 11.5t load hook

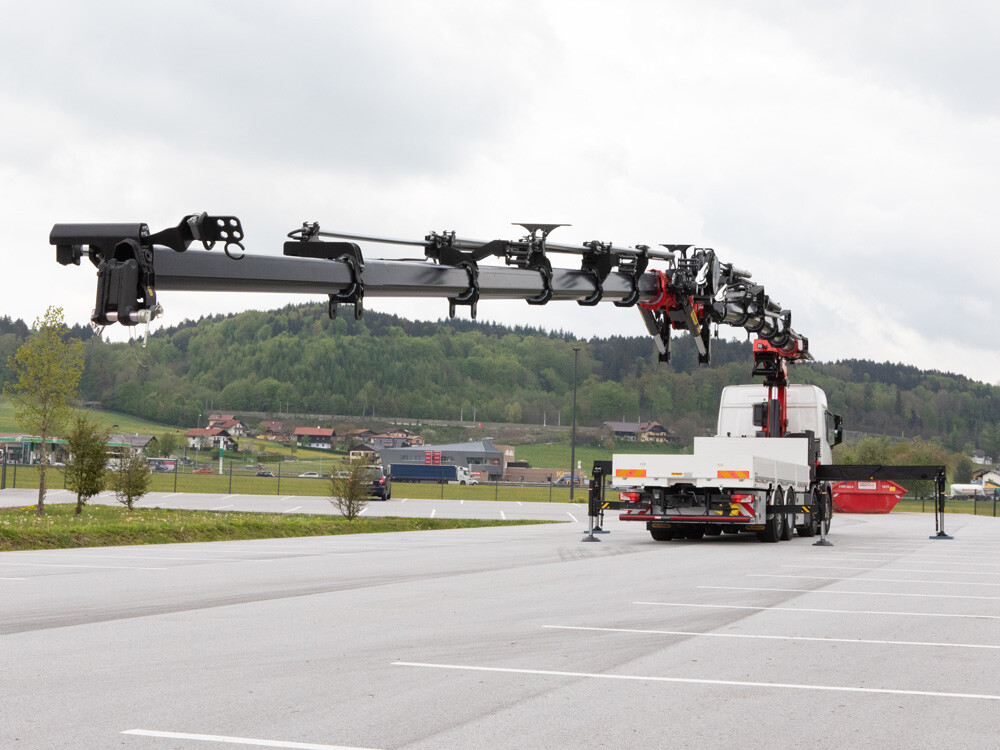

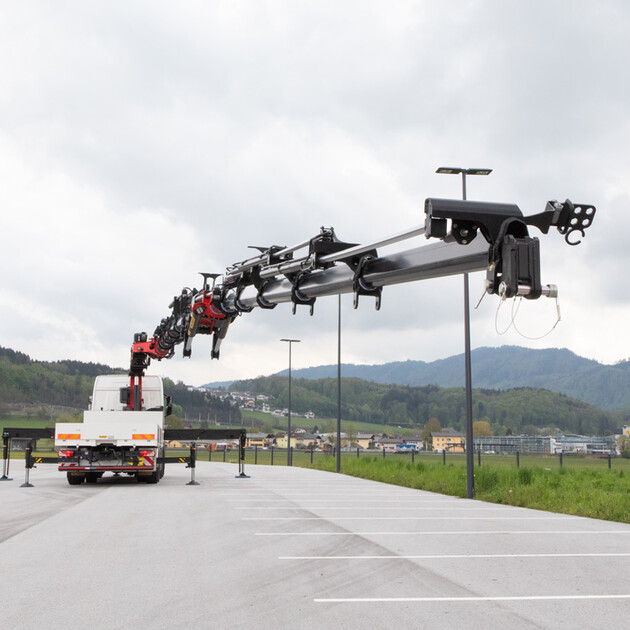

PJ150-E (additional knuckle arm)

- Hydraulic 6-fold extension

- Can be folded upwards hydraulically by 25 °

- Preparation for work basket operation

- Applications with additional devices possible (e.g. gripper, rotator ...) including quick coupling (multi-faster)

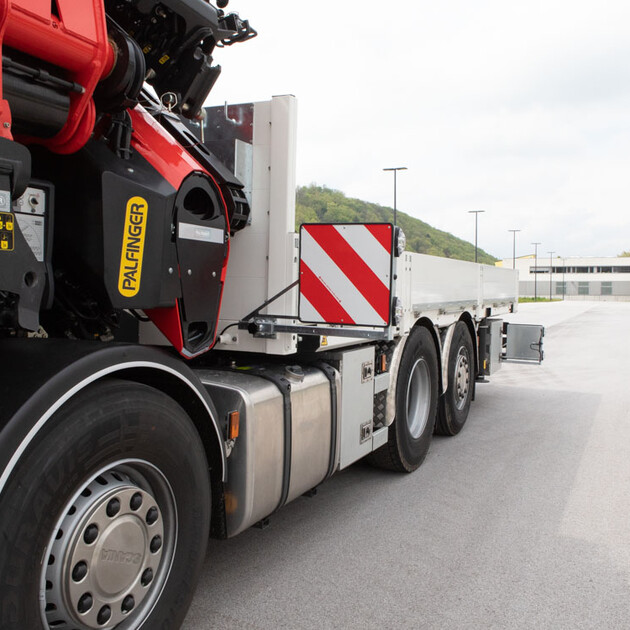

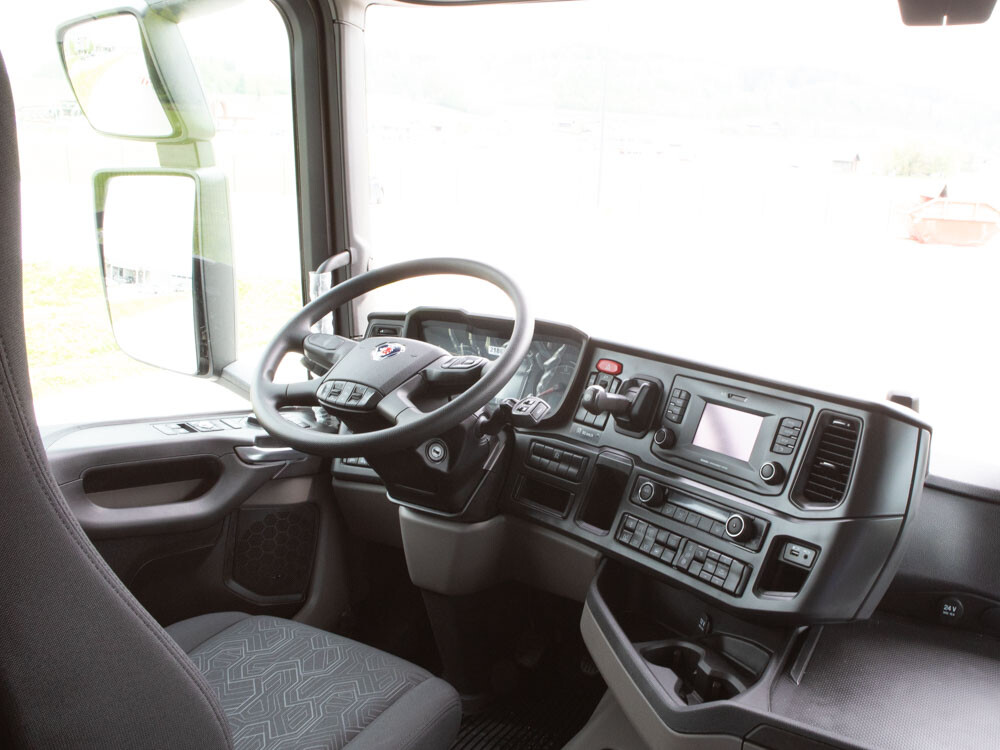

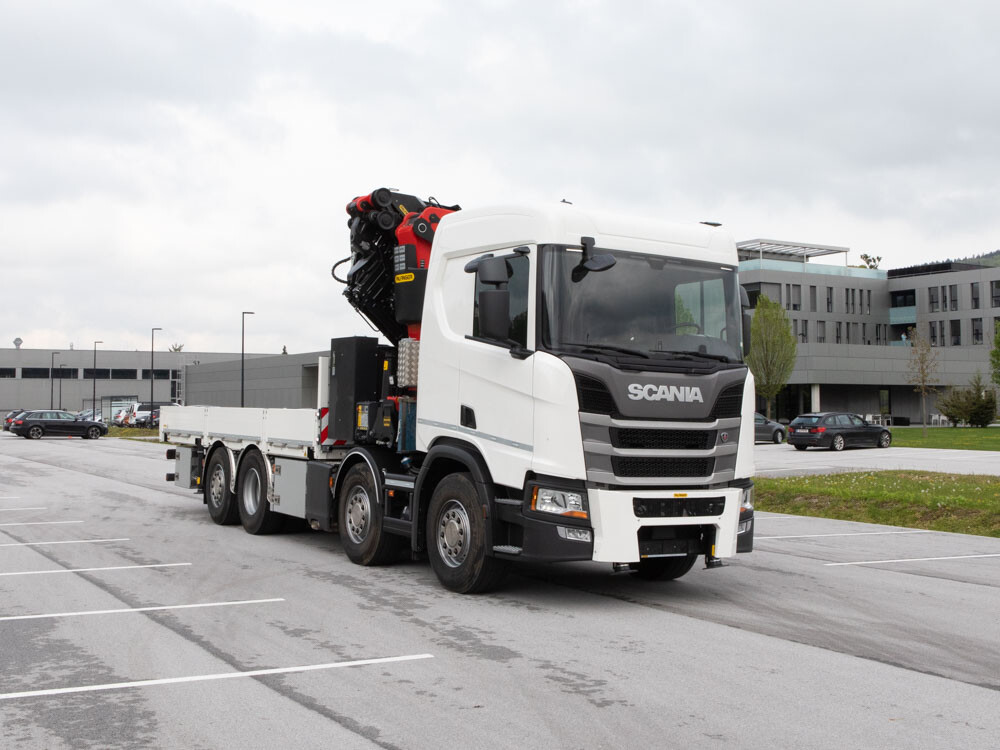

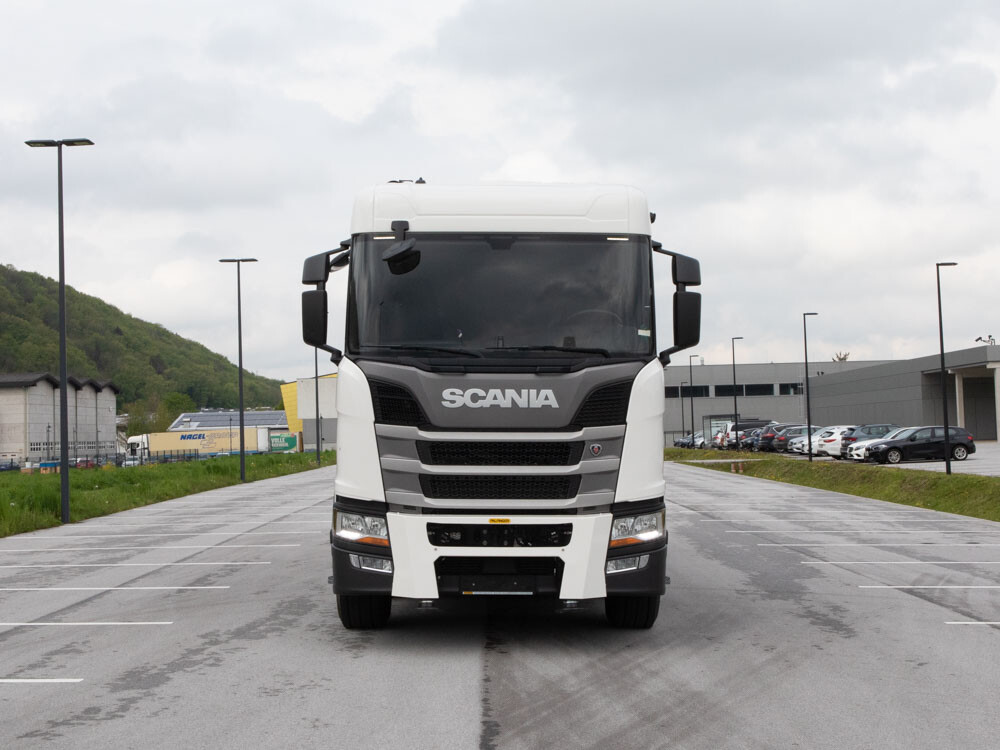

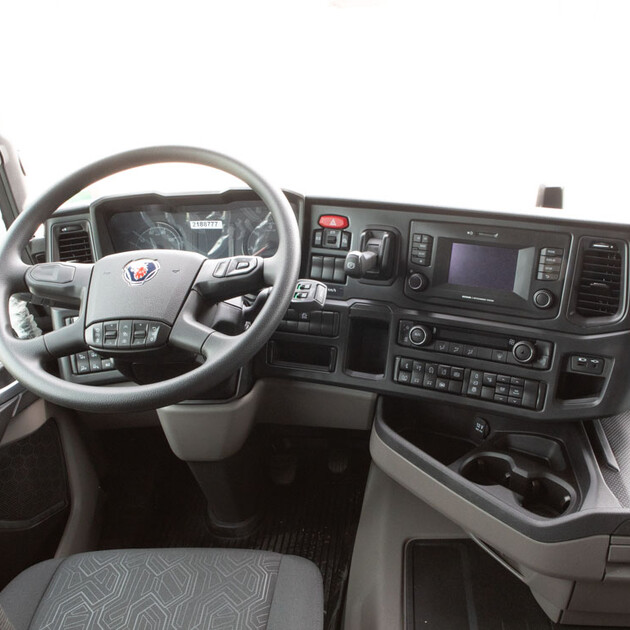

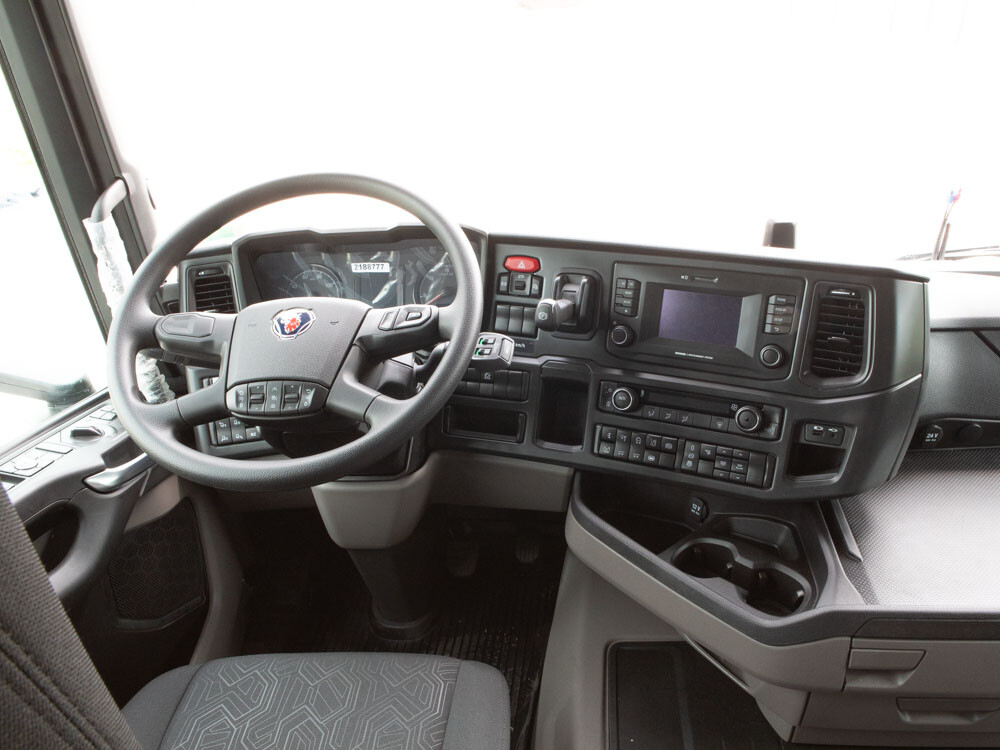

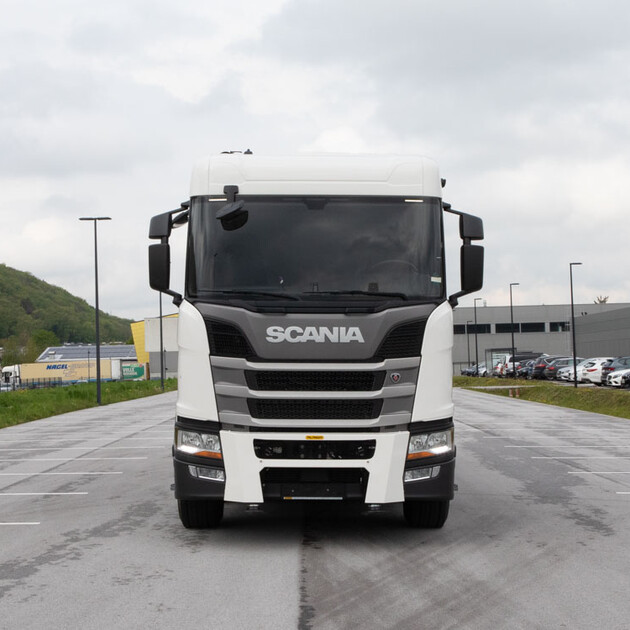

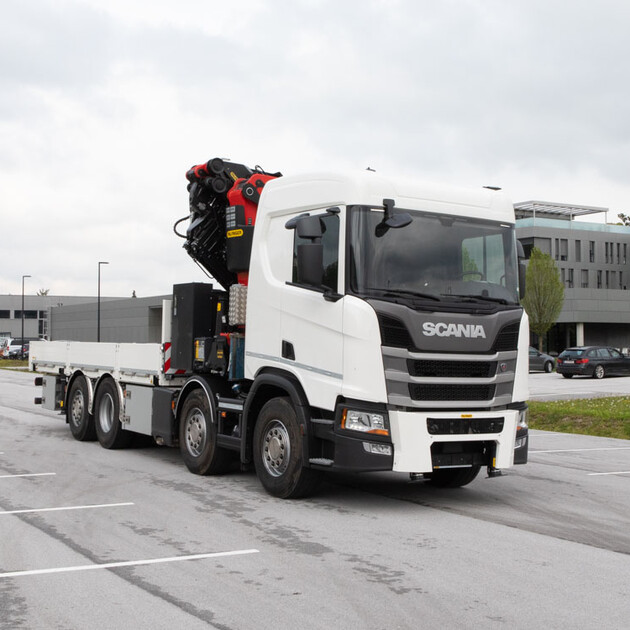

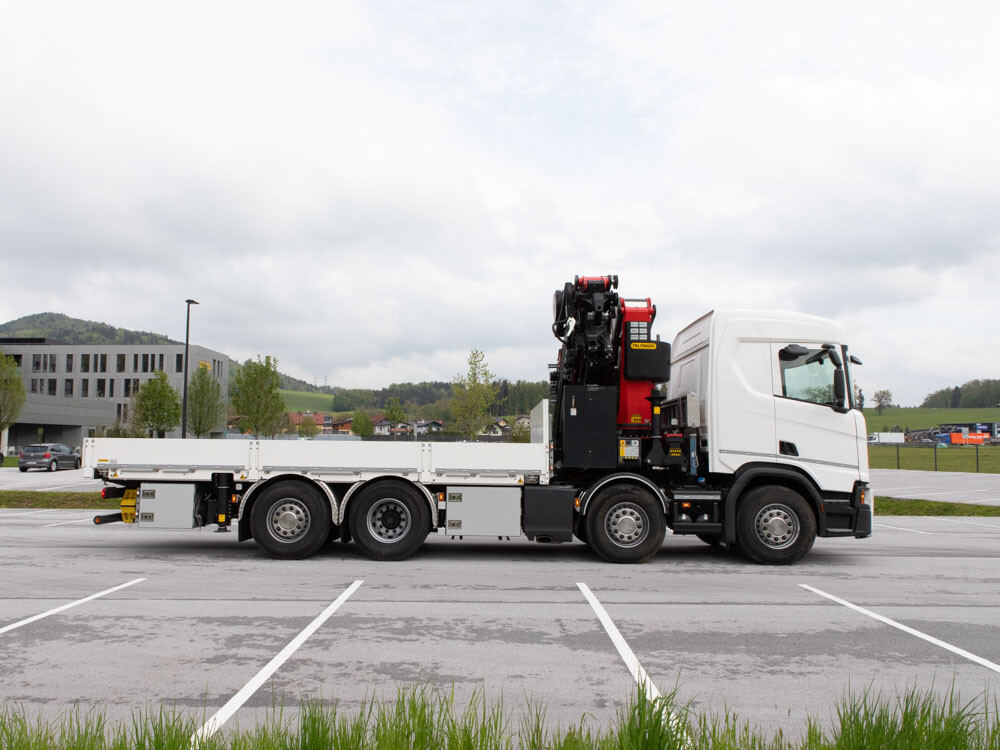

SCANIA

- R500 B8x2*6NB

- 500hp

- GRS905R gearbox + retarder

- Air suspension on all axles

- Fuel tank 400l / AD-Blue 47l

- Tires 1st 2nd and trailing axle 385/65 R22.5

- Driven axle tires 315/80 R22.5

- Cabin color: Ivory White / Chassis color: Sub Grey
