Smart class

P 220 AXE-E Smart Plus

Access Platform

P 220 AXE-E Smart Plus
Working Height 21.9 M
Basket Load 250 KG
Side Reach 13,0 m

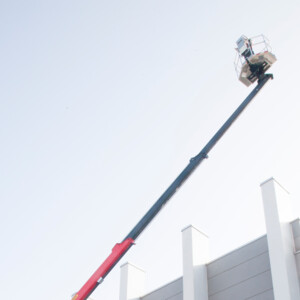

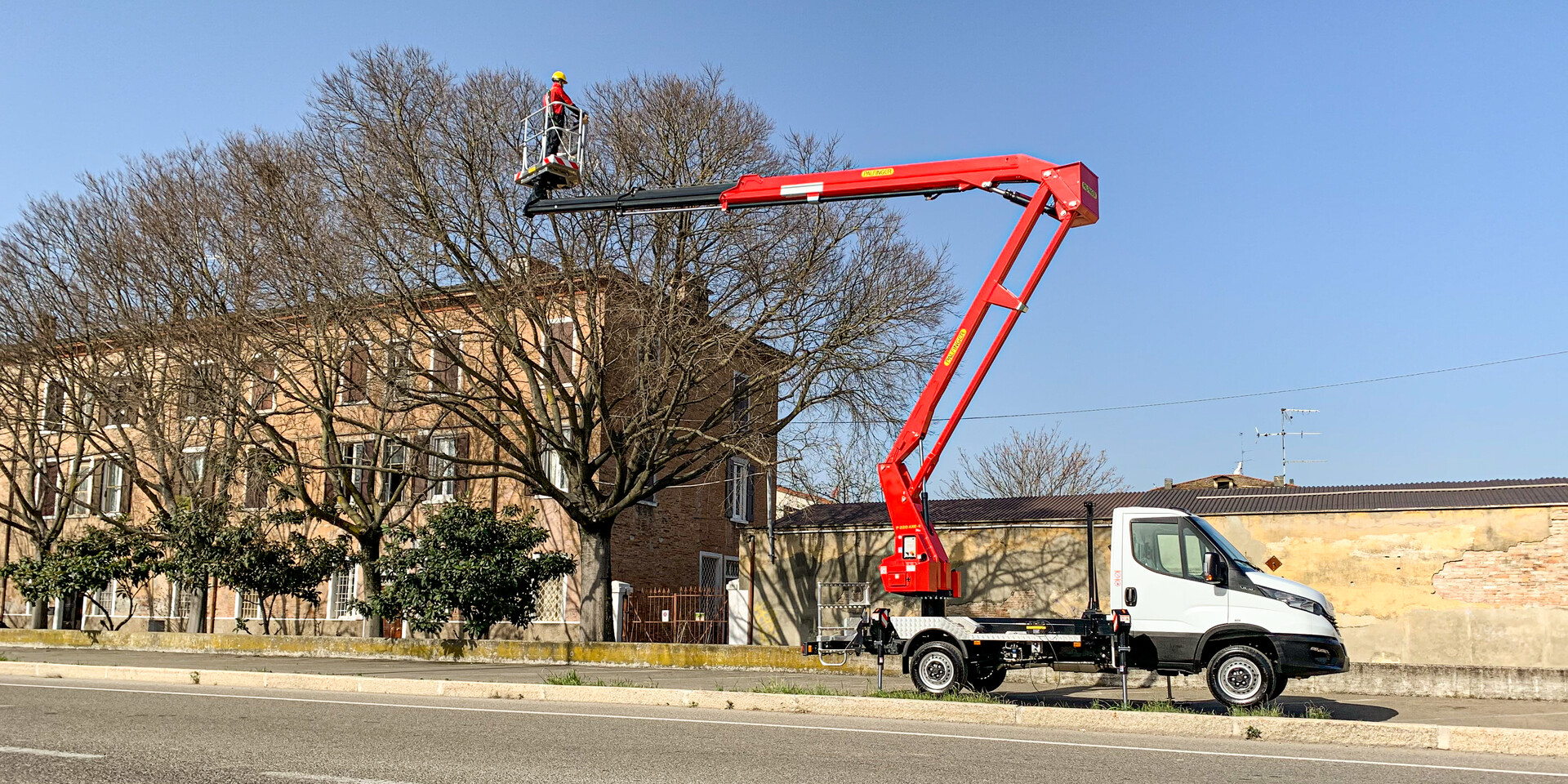

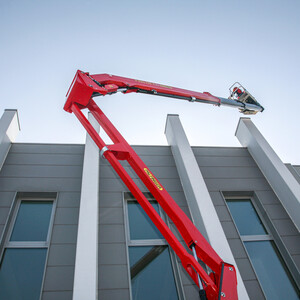

Articulated platform with unbeatable outreach. Ideal for working beyond overhead obstacles.

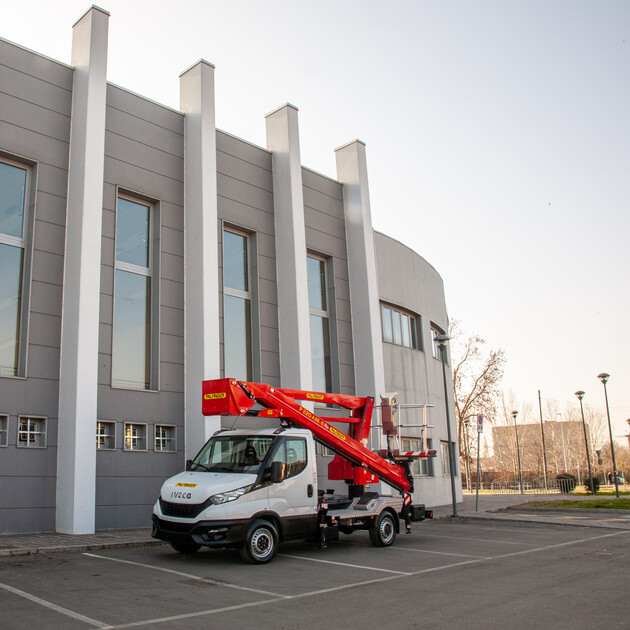

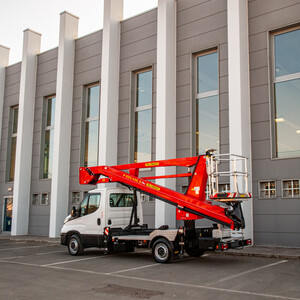

  • Lightweight and compact double articulated aerial platform for work in tight spaces, mounted on a 3.5 t truck. The double pantograph unit guarantees great versatility and the ability to move over in elevated positions.
  • Multifunction electric controls for greater precision, speed, and manoeuvring comfort

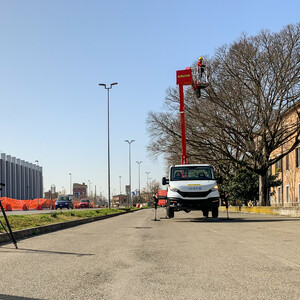

  • Vertical stabilisation with frontwards extending outriggers which compensate for uneven and sloping ground
  • Platform with three stabilisation options for all working conditions:
  1. Within the outer vehicle limits: for maximum compactness overall within small spaces
  2. With front outriggers extended: for maximum performance when working in elevated positions
  3. Partial stabilisation: for maximum performance with minimum overall dimensions
