STANDARD
GLS 55
Truck Mounted Forklift
Re•Envisioned | Side View (Left)
Contemporary Styling: Contemporary angular styling with 45° corners offer a sleek look that matches today's commercial vehicles
3-Point Entry and Exit: Ergonomically arranged steps and grab handles for ease of entry and exit
Ground Level Diesel Fuel Fill: Located within arms reach for easy ground level refueling when the forklift is either on the ground or when mounted on a truck.
Re•Envisioned | Side View (Right)
Spacious Ergonomic Operator Cabin: Rubber mounted to reduce vibration and increase operator comfort
Rigidly Mounted Radiator Panel: Robust steel construction for added impact protection
Main Frame Side Pods: Provide structural rigidity as well as a clean overall look
Re•Envisioned | Front View
Low Profile Engine Hood: A lower mounted engine enables a reduced hood height which greatly increases right-hand side visibility
Carriage Cylinders: Carriage cylinders are located and recessed below the mast carriage contributing to a lower machine center of gravity along with giving protection from damage and abrasion caused by falling product debris
LED Work Lights
Front Street Lighting Kit
Re•Envisioned | Rear View
Main Frame Design: 45° rear corners minimize turning radius and extend beyond the inset body panels protecting them from impact
Rear Steering: A ring gear and flat face slew bearing driven by a hydraulic motor provides equal-input hydraulic power steering for smooth operation with a 180° rear-arm turning arc
ROPS and FOPS Tested and Approved Overhead Guard
Rear Street Lighting Kit
Folding SMV Sign
Corrosion Resistance and Guarding
- Wrap-around chassis that extends beyond the body work
- Composite body panels
- KLT-treated and powder painted chassis
- Galvanized steps, telescopic stabilizers, wheel motor guards, transport chain hanger brackets to withstand the rigors of everyday use
- Dacrotized mast chains
- Zinc-coated mast and chain rollers
- Wheel rim valve stem guards

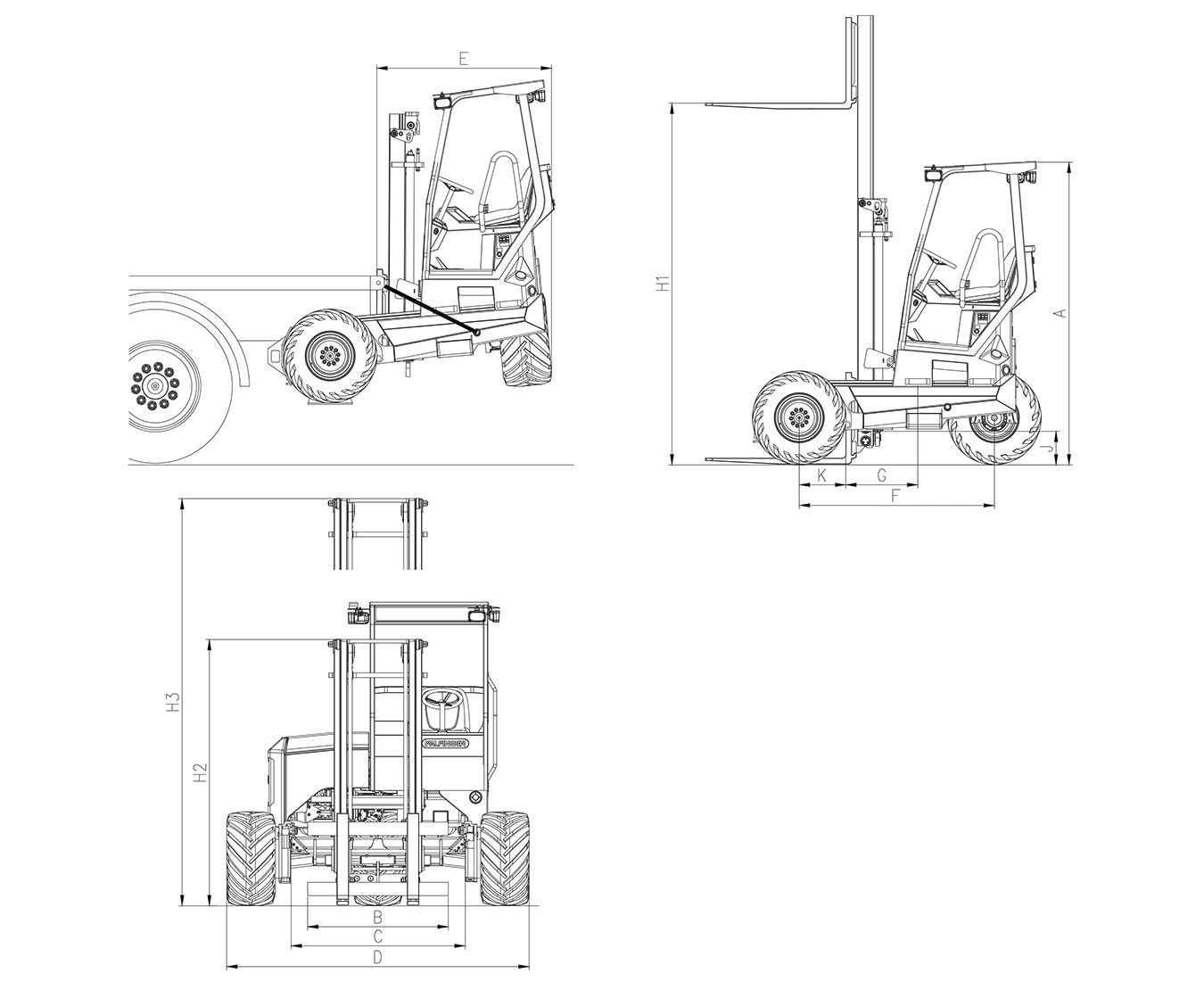

| Capacity @ 24'' Load center | 5500 lbs |
| Horsepower | 56 hp |
| Engine | Diesel |
| Engine emission compliance EPA | Tier 4 Final |
| Maximum engine RPM | 2700 rpm |
| Electrical system | 12 Volt |
| Drive wheels | 3 |
| Steering | Hydrostatic |
| Tire type: Front: Tractor grip | Skid steer | 31x15.5-15 8-PLY, 12 PLY |
| Tire type: Rear: Tractor grip | Skid steer | 31x15.5-15 8-PLY, 12-PLY |
| Tire outside diameter | 31" |
| Tire width | 15 1/2" |
| Maximum speed | 7 mph |
| Maximum gradability | 30% |
| Turning radius | 76" |
| Unladen weight | 5925 lbs | 6040 lbs |
| Working pressure for attachments | 3000 psi |
| Tilt of mast (Forward / Back) | 10° / 8° |
| Sideshift | 6" |
| Fork section: Pallet | 45" x 4" x 1 3/4" |
| Fork section: Brick & Block | 48" x 2" x 2" |
| Fork section: Lumber | 48" x 6" x 2" |
| Mast Carriage Travel | 31" |
| Counter Weights | No |
| Height to top of canopy | 101" |
| Fork carriage width | Fork boards | 47 1/4" | CLASS III at Class IV Spread |
| Frame opening | 58" |
| Overall width | 101 1/2" |
| Overhang | 60" |
| Wheel base | 65 1/2" |
| C. OF. G. from Forkface | 18 3/4" |
| Lift height | 120" | 144" |
| Mast height collapsed | 88 3/4" | 100 3/4" |
| Mast height raised | 148 3/4" | 172 3/4" |
| Ground clearance | 11" |
| Face of fork to center of Front tire | 15" |
| Ansi standard | B56.14 |
