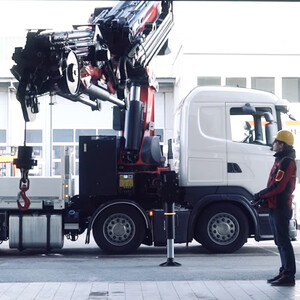

Knuckle Boom
PK 13002 High Performance
Knuckle Boom Crane
KTL

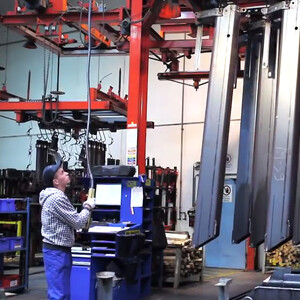

PRODUCT FEATURES
The right surface treatment is the foundation for durable and long-lasting surface protection. The components pass through the priming and painting process stages fully automatically. Through this innovative technology for surface coating, PALFINGER creates a quality standard that is usually only found in the automobile industry.
HOW IT WORKS
1. The crane components are cleaned of all impurities by means of cut steel shot blasting.
2. The components are degreased, rinsed, activated and coated with zinc phosphating in the individual immersion tanks.
3. After two additional rinsing processes, the surfaces are passivated as well as rinsed with ultra-pure water.
4. The electrostatic cathodic dip painting follows by immersing the crane components completely in the paint.
5. Excess paint is washed off in two additional operations with an ultra-filtration rinse.
6. Afterwards, the paint is cured at a temperature of 115 degrees for 1.5 hours.
7. At the end, the crane components are given a water-soluble, environmentally friendly two-component finish coat of paint by a painting robot.
HPSC
PRODUCT FEATURES
The High Performance Stability Control (HPSC) is a fully proportional system for monitoring the stability of the crane vehicle. Sensors for proportional path measurement in the stabilizer supports permit completely variable support positioning. Hence, the permissible, safe working range can be calculated for any support situation.
HOW IT WORKS
The HPSC system calculates the permissible working range for any slewing angle of the boom system and for any support situation. The position of the stabilizer support is detected by means of a cable extension transducer or magnetostrictive position sensor. Based on the intelligent calculation algorithm developed by PALFINGER, it works more efficiently than comparable systems that are available in the market.
* Optional feature/country-specific-equipment
| Max. lifting moment | 86780.0 ft lbs |
| Max. lifting capacity | 13670 lbs |
| Max. hydraulic outreach | 55' 9" |
| Max. manual outreach | 62' 4" |
| Slewing angle | 420° |
| Slewing torque | 11580.0 ft lbs |
| Stabilizer spread (std) | 16' 5" |
| Fitting space required (std) | 2' 9" |
| Width folded | 8' 3" |
| Max. operating pressure | 4640 psi |
| Pump capacity | 9.2 - 13.2 gpm |
| Dead weight (std) | 3890 lbs |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
| Max. lifting moment | 11.2 mt |
| Max. lifting capacity | 6100 kg |
| Max. hydraulic outreach | 17.0 m |
| Slewing angle | 420° |
| Slewing torque | 1.6 mt |
| Stabilizer spread (std) | 5.0 m |
| Fitting space required (std) | 0.71 m |
| Width folded | 2.50 m |
| Max. operating pressure | 320 bar |
| Pump capacity | 35 - 50 l/min |
| Dead weight (std) | 1764 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (ft_lbs) |
Outreach |
Slewing angle (°) |
Slewing torque (ft_lbs) |
Pressure (psi) |
Pump capacity (gpm) |
Crane Weight (lbs) |

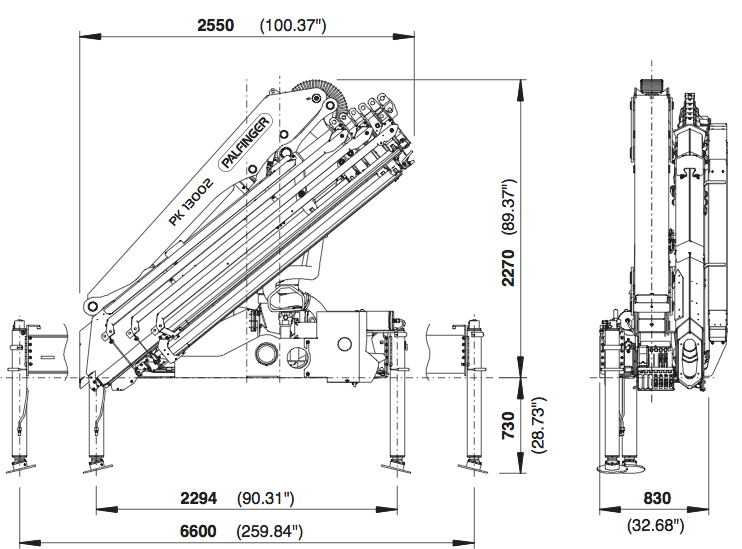

Crane Height (inch) |
Crane Width (inch) |
Installation Width (inch) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| A | 83203.0 | 26' 7'' | 420 | 11573 | 4640.0 | 9.2 - 13.2 | 3889 | 89.37 | 98.82 | 32.68 |
| B | 76691.0 | 48' 7" | 420 | 11573 | 4640.0 | 9.2 - 13.2 | 4182 | 89.37 | 98.82 | 32.68 |
| C | 68733.0 | 55' 9" | 420 | 11573 | 4640.0 | 9.2 - 13.2 | 4420 | 89.37 | 98.82 | 35.43 |
| D | 59327.0 | 62' 4" | 420 | 11573 | 4640.0 | 9.2 - 13.2 | 4643 | 89.37 | 98.82 | 37.01 |
| E | 48475.0 | 62' 4" | 420 | 11573 | 4640.0 | 9.2 - 13.2 | 4866 | 89.37 | 100.39 | 37.01 |
|
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| A | 11.5 | 8.1 | 420 | 1.6 | 32.0 | 35-50 | 1764 | 2270 | 2510 | 830 |
| B | 11.2 | 10.3 | 420 | 1.6 | 32.0 | 35-50 | 1897 | 2270 | 2510 | 830 |
| C | 10.9 | 12.6 | 420 | 1.6 | 32.0 | 35-50 | 2005 | 2270 | 2510 | 900 |
| D | 10.6 | 14.8 | 420 | 1.6 | 32.0 | 35-50 | 2106 | 2270 | 2510 | 940 |
| E | 10.3 | 17.0 | 420 | 1.6 | 32.0 | 35-50 | 2207 | 2270 | 2550 | 940 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
