Single

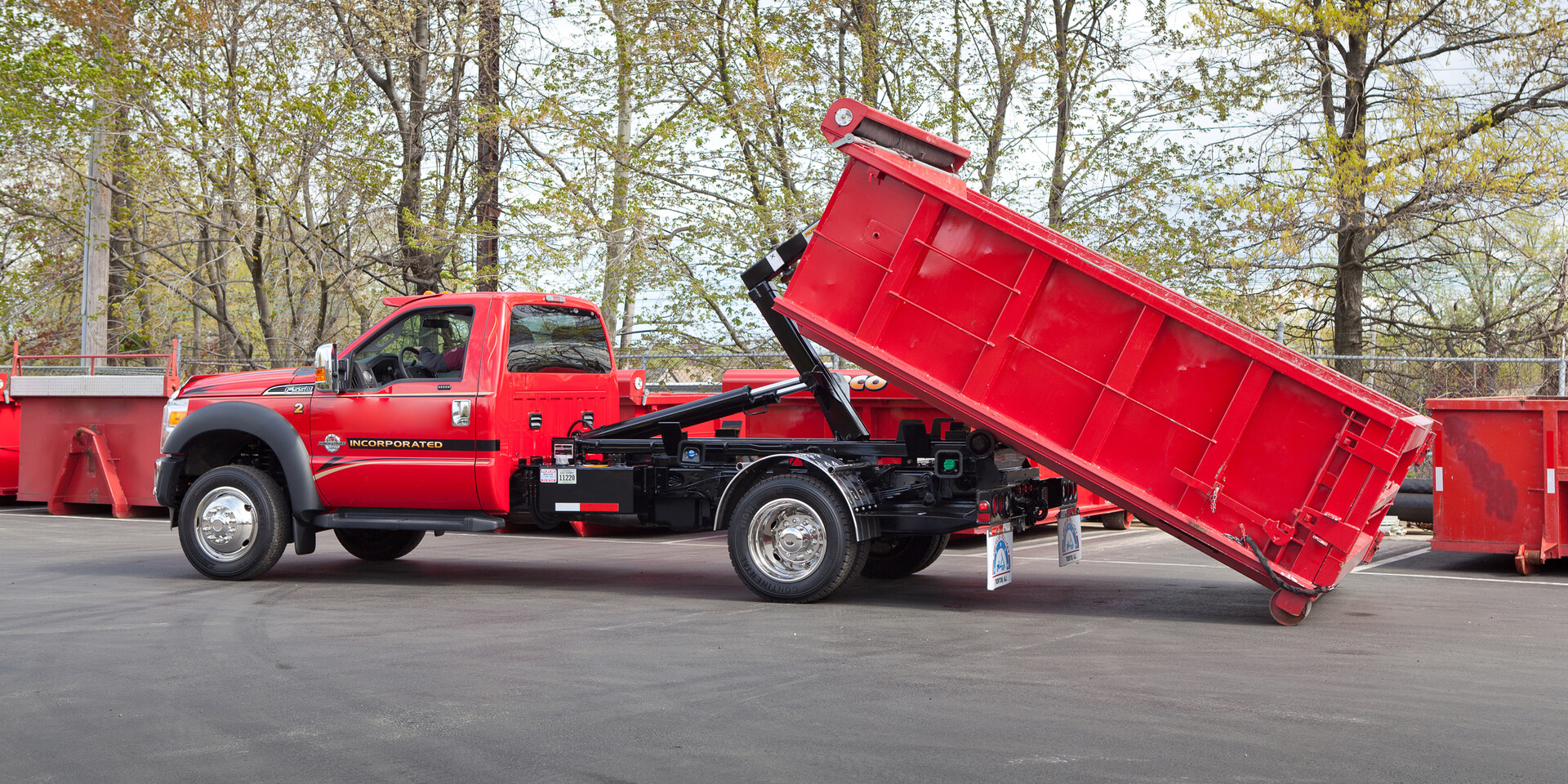

HAS 100
Hooklift
Single Axle
Imperial
Metric
Hook Height
Hook Height
920.75 mm
36 ¼"
Container Length
Container Length
3 – 4 m
10 – 13 ft
Min GVWR
Min GVWR
7937.9 kg
17,500 lbs.
This hoist features in-cab and outside controls. Low pressure hydraulics, Single point of articulation.
10,000 lbs. capacity
| Lift / DumpCapacity (lb.) | CA Range (in.) | Optimum CA (in.) | Min. GVWR (lb.) | Min RBM (in. lb.) | Hooklift length | Clear Frame Rail (in.) | Body Length Range (ft.) | Optimum Body Lenghts (ft.) | Jib Height (in.) | Jib Action | Max. Dump Angle | Pivot | # of Lift / Dump Cylinders | Operating Pressure (PSI) | Pump Type | Fitting Hoses | Shipping Weight (lb.) | Paint | Construction | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 10000 | 84-96" | 84 | 17500 | 500,000 | 126 | 131 | 10-12' | 10-12' | 36.25" | Telescopic | 50 to 38 degrees | Single | 2/2 | 2900 | Gear - Direct mount | JIC/SAE | 2060 | Primer | A709 (Grade 50) |
| L | 10000 | 96-108'' | 108 | 17500 | 500,000 lbs. | 144 | 149 | 11-13' | 11-13' | 36.25'' | Telescopic | 52 to 46 degrees | Single | 2/2 | 2900 | Gear - Direct mount | JIC/SAE | 2300 | Primer | A709 (Grade 50) |
| Lift / DumpCapacity (lb.) | CA Range (in.) | Optimum CA (in.) | Min. GVWR (lb.) | Min RBM (in. lb.) | Hooklift length | Clear Frame Rail (in.) | Body Length Range (ft.) | Optimum Body Lenghts (ft.) | Jib Height (in.) | Jib Action | Max. Dump Angle | Pivot | # of Lift / Dump Cylinders | Operating Pressure (PSI) | Pump Type | Fitting Hoses | Shipping Weight (lb.) | Paint | Construction | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 4535 | 84-96" | 84 | 17500 | 500,000 lbs. | 320 | 333 | 3.05-3.66m | 3.05-3.66 m | 92.07 cm | Telescopic | 50 to 38 degrees | Single | 2/2 | 200 | Gear - Direct mount | JIC/SAE | 935 | Primer | A709 (Grade 50) |
| L | 4535 | 96-108" | 108 | 17500 | 500,000 lbs. | 366 | 378 | 3.3-3.96 m | 3.35-3.96 | 92.07 cm | Telescopic | 52 to 46 degrees | Single | 2/2 | 200 | Gear - Direct mount | JIC/SAE | 1044 | Primer | A709 (Grade 50) |
- Single Pivot Design
- Simple design to help keep costs down, when dump cabability isn ot required in daily operation
- Low Pressure Hydraulics
- Designed to work closer with other hydraulically powered equipment
- Container Hold Downs
- Used to secure body during transport
- Inside (HAS 100 models)
- Inside & Outside (HAS 150 & HAS 200)
- Outside (HAS 200M & HAS 200L)
- Telescopic Jib
- Allows the body to glide effortlessly across the hoist's platform and into the container hold downs
- Provides better center of gravity for loaded bodies
- Adjustable Jib
- Optional - HAS 200S only - 36" or 54"
- Designed to mange bodies setup at various hook heights
- Inside & Outside Controls
- Convenient hoist operation
- Greasable with bronze bushings at all pivot points
- Serviceable working points with replaceable bushings
- Suports/Guides
- Steel - no wearable/replaceable pads necessary
- Frame
- Tubular design for optimal strength and support
- 3-Year Limited Warranty
- Structural parts
