Single

HAD 130

  1. Go back
  2. Home
  3. Products
  4. Hooklifts
  5. Models
  6. HAD 130

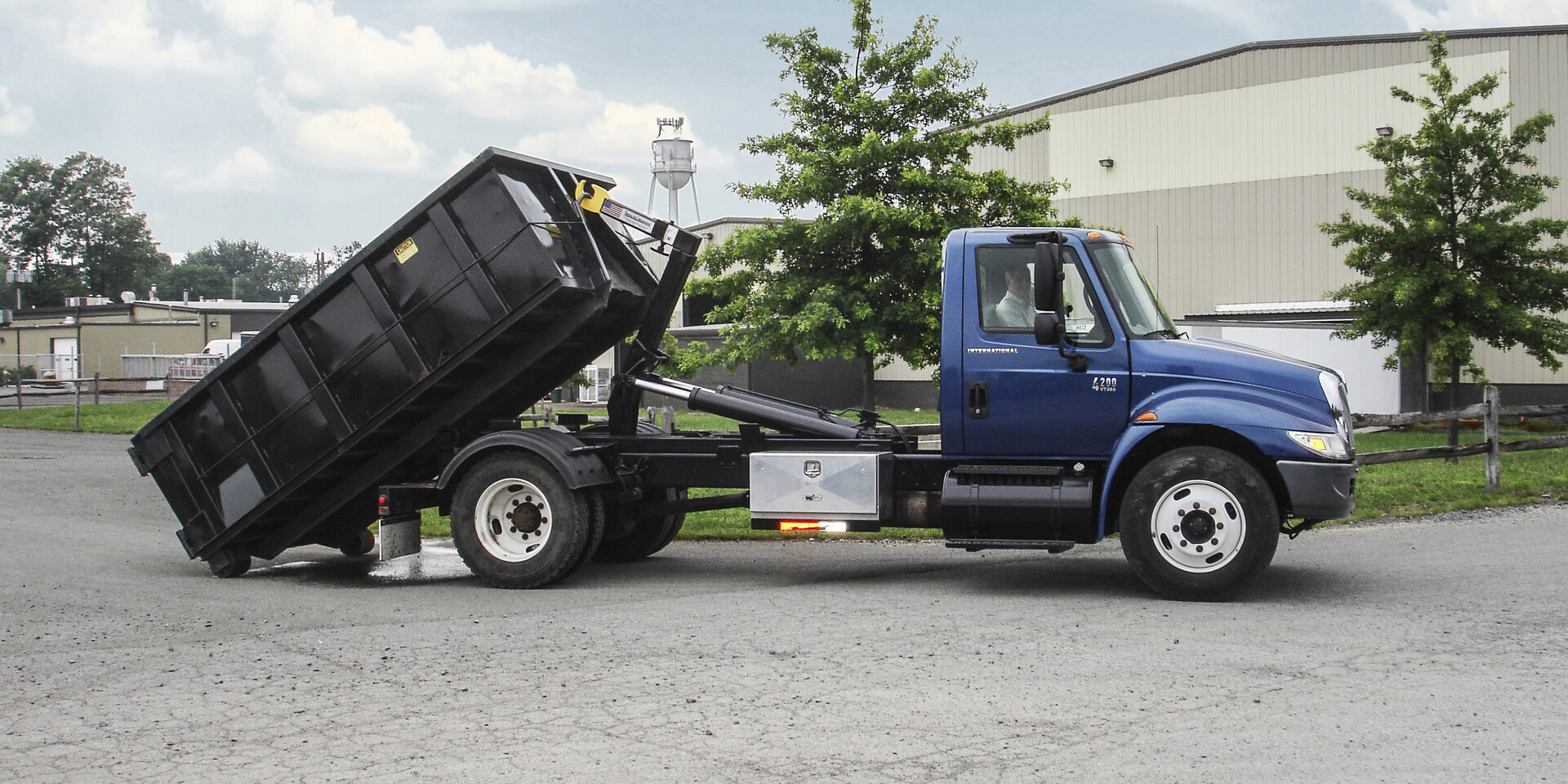

Hooklift

Single Axle
Imperial Metric
Hook Height 36 ¼"
Container Length 8 – 13 ft
Min GVWR 19,500 lbs.
Technical Data

This hoist features in-cab and outside controls.  Low pressure hydraulics. Dual points of articulation.

13,000 lbs. capacity

Downloads
Lift / DumpCapacity (lb.) CA Range (in.) Optimum CA (in.) Min. GVWR (lb.) Min RBM (in. lb.) Hooklift length Clear Frame Rail (in.) Body Length Range (ft.) Optimum Body Lenghts (ft.) Jib Height (in.) Jib Action Max. Dump Angle Pivot # of Lift / Dump Cylinders Operating Pressure (PSI) Pump Type Fitting Hoses Shipping Weight (lb.) Paint Construction
S 13000 84-96'' 96 19500 500,000 lbs. 131 138 8-12' 10-12' 36.25'' Telescopic 58 degrees Dual 2/2 2900 Gear - Direct mount JIC/SAE 2200 Primer A709 (Grade 50)
L 13000 108 -120'' 120 19500 500,000 lbs. 153 158 9-13' 11-13' 36.25'' Telescopic 54 degrees Dual 2/2 2900 Gear - Direct mount JIC/SAE 2270 Primer A709 (Grade 50)
Lift / DumpCapacity (lb.) CA Range (in.) Optimum CA (in.) Min. GVWR (lb.) Min RBM (in. lb.) Hooklift length Clear Frame Rail (in.) Body Length Range (ft.) Optimum Body Lenghts (ft.) Jib Height (in.) Jib Action Max. Dump Angle Pivot # of Lift / Dump Cylinders Operating Pressure (PSI) Pump Type Fitting Hoses Shipping Weight (lb.) Paint Construction
S 5896 84-96" 96 19500 500,000 lbs. 333 357 2.44-3.66 m 3.05-3.66 m 92.07 cm Telescopic 58 degrees Dual 2/2 200 Gear - Direct moun JIC/SAE 998 Primer A709 (Grade 50)
L 5896 108-120" 120 19500 500,000 lbs. 389 401 2.74-3.96 m 3.35-3.96 m 92.07 cm Telescopic 54 degrees Dual 2/2 200 Gear - Direct mount JIC/SAE 1030 Primer A709 (Grade 50)
  • Dual Pivot Design
    • Flexible design with true dumping capabilities
  • Low Pressure Hydraulics
    • Designed to work closer witih other hydraulically powered equipment
  • Container Hold Downs
    • Used to secure body during transport
    • Located outside (standard on all models)
  • Dual Lift/Dump Cylinders
    • Steady and secure handling of bodies during loading, unloading and dumping operations
  • Dual Counter Balance Valves
    • Safety feature providing pwer up and power down.
    • Accessible and serviceable
  • Telescopic Jib
    • Allows the body to glive effortlessly across the hoist's platform and into the container hold downs
    • Provides better center of gravity for loaded bodies
    • Allows for dumping of overloaded loads (use long hold down plates)
  • Patented Mechanical Jib Locking Design
    • Patented feature that prevents jib operation while in dump mode, without the need for proximity or hydraulic sensors
  • Adjustable Height Jib (optional - HAD 185 only - 36" and 54")
    • Designed to manage bodies set up at various hook heights
  • Inside & Outside Controls
    • Convenient hoist operation
  • Greasable with bronze bushings at all pivot points
    • Servicable working points with replaceable bushings
  • Supports/Guides
    • Steel - no wearable/replacable pads necessary (all models)
    • Steel rollers (HAD 250 and HAD 300 only)
  • Body Bumper (HAD 250 & HAD 300 only)
    • Snugs up to the head sheet to m inimize road chatter
  • Frame
    • Tubular design for optimal strength and support
  • 3-Year Limited Warranty
    • Structural parts
