ART Models

Cable Hoist
Imperial Metric
Type ART
Max Length 24 ft
Max Capacity 75000 lbs
Technical Data

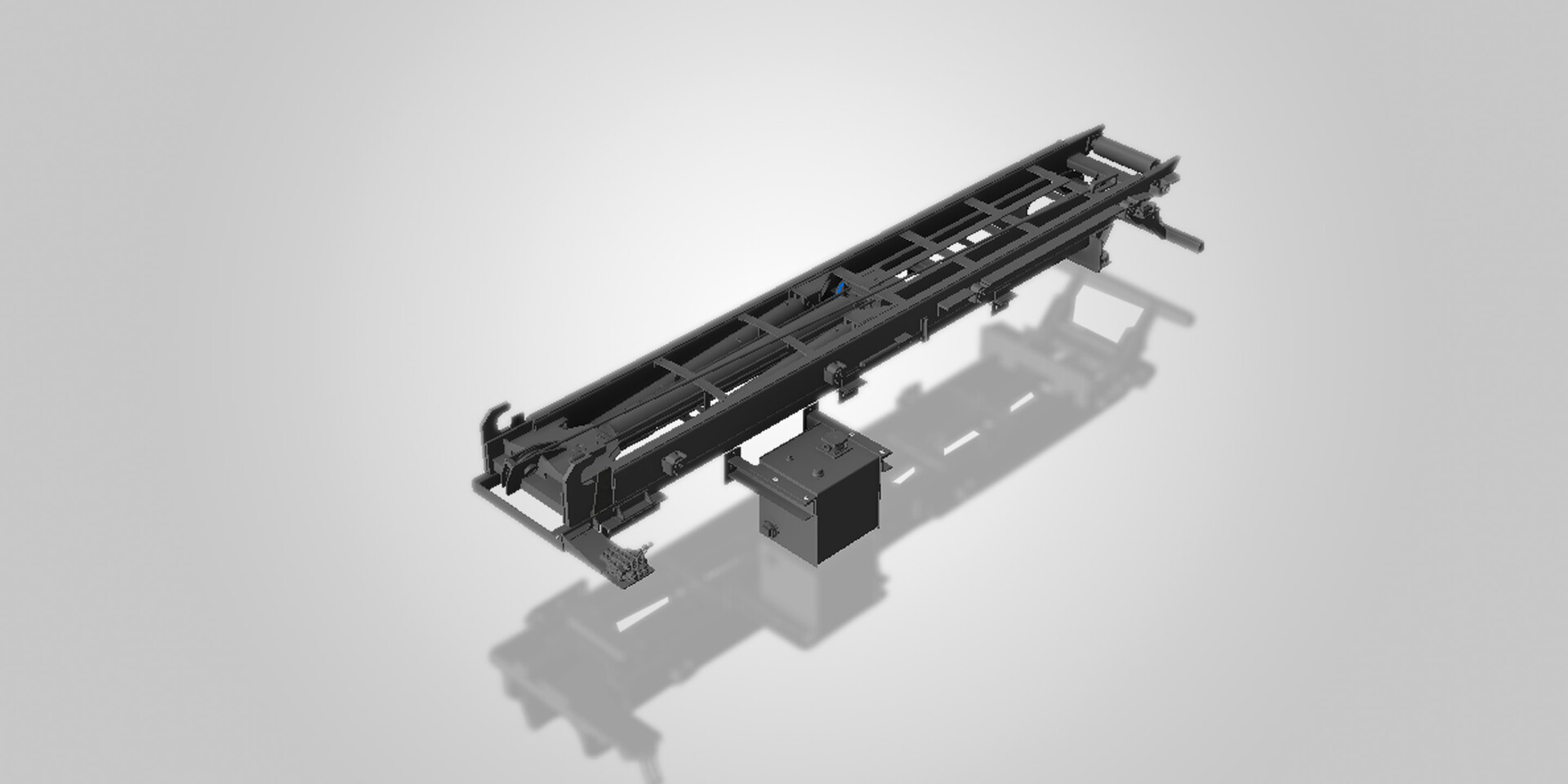

Designed for a long life with minimal maintenance, our patented Top Mount Cable Roll-off Hoists are unique to the market.  The innovative top mount design is suitable for single and multiple axle chassis, making these hoists perfect for mounting on top of any chassis configuration, including CNG tanks.  Plus, our top mount design also offers the most diverse capacity range, from 12,000 – 75,000 lbs

Downloads
Capacity (lb) Container length (ft.) Dump angle Min C/A (in.) Min C/T (in.) Hoist length (in.) GVWR F/R (lb.)
ART 12-12 12000 10-12 ft. 53 84 188 7,000/12,500
ART 12-14 12000 12-14 ft. 48 108 217 7,000/12,500
ART 20-16 20000 12-16 ft. 56 120 212 7,000/12,500
ART 20-18 20000 14-18 ft. 52 140 236 7,000/12,500
ART 30-16 30000 12-16 ft. 56 125 222 12,000/21,000
ART 30-16 ET 30000 12-16 ft. 56 125 232 12,000/21,000
ART 30-22 30000 18-22 ft. 48 186 289 12,000/21,000
ART 30-22 ET 30000 18-22 ft. 52 186 320 12,000/21,000
ART 40-16 40000 12-16 ft. 56 164 118 222 12,000/40,000
ART 40-16 ET 40000 12-16 ft. 56 164 118 232 12,000/40,000
ART 40-22 40000 18-22 ft. 48 176 289 12,000/40,000
ART 40-22 ET 40000 18-22 ft. 52 176 320 12,000/40,000
ART 60-22 60000 18-22 ft. 49 - 176 289 18,000/46,000
ART 60-22 ET 60000 18-22 ft. 51 - 176 321 18,000/46,000
ART 60-22 IO 60000 18-22 ft. 51 - 176 289 18,000/46,000
ART 75-22 75000 18-22 ft. 48 - 176 289 18,000/46,000
ART 75-22 ET 75000 18-22 ft. 51 - 176 321 18,000/46,000
ART 75-22 IO 75000 18-22 ft. 48 - 176 289 18,000/46,000
ART 75-24 75000 20-24 ft. 48 - 194 307 18,000/46,000
ART 75-24 ET 75000 20-24 ft. 47 - 194 367 18,000/46,000
ART 75-24 IO 75000 20-24 ft. 48 - 194 307 18,000/46,000
Capacity (kg) Container length (m) Dump angle Min C/A (in) Min C/T (in) Hoist length (cm) GVWR F/R (lbs.)
ART 12-12 5443 3.05-4.27 m 53 84 - 477.52 7,000/12,500
ART 12-14 5443 3.66-4.27 m 48 108 - 551.18 7,000/12,500
ART 20-16 9071 3.66-4.88 m 56 120 - 538.48 7,000/12,500
ART 20-18 9071 4.27-5.49 m 52 140 - 599.44 7,000/12,500
ART 30-16 13607 3.66-4.88 m 56 125 - 563.88 12,000/21,000
ART 30-16 ET 13607 3.66-4.88 m 56 125 - 589.28 12,000/21,000
ART 30-22 13607 5.49-6.71 m 48 186 - 734.06 12,000/21,000
ART 30-22 ET 13607 5.49-6.71 m 52 186 - 812.8 12,000/21,000
ART 40-16 18143 3.66-4.88 m 56 164 118 563.88 12,000/40,000
ART 40-16 ET 18143 3.66-4.88 m 56 164 118 589.28 12,000/40,000
ART 40-22 18143 5.49-6.71 m 48 - 176 734.06 12,000/40,000
ART 40-22 ET 18143 5.49-6.71 m 52 - 176 812.8 12,000/40,000
ART 60-22 27215 5.49-6.71 m 49 - 176 734.06 18,000/46,000
ART 60-22 ET 27215 5.49-6.71m 49 - 176 815.34 18,000/46,000
ART 60-22 IO 27215 5.49-6.71 m 49 - 176 734.06 18,000/46,000
ART 75-22 34019 5.49-6.71 m 48 - 176 734.06 18,000/46,000
ART 75-22 ET 34019 5.49-6.71 m 51 - 176 815.34 18,000/46,000
ART 75-22 IO 34019 5.49-6.71 m 48 - 176 734.06 18,000/46,000
ART 75-24 34019 6.10-7.32 m 48 - 194 779.78 18,000/46,000
ART 75-24 ET 34019 6.10-7.32 m 47 - 194 932.18 18,000/46,000
ART 75-24 IO 34019 6.10-7.32 m 48 - 194 779.78 18,000/46,000
  • Single reeve cylinder
  • Ideal for installation on multiple axle chassis and CNG tanks
  • Top mount installation leaves room for bigger fuel tanks, battery boxes and tool boxes
  • Patented folding rear bumper
