Bucket Trucks

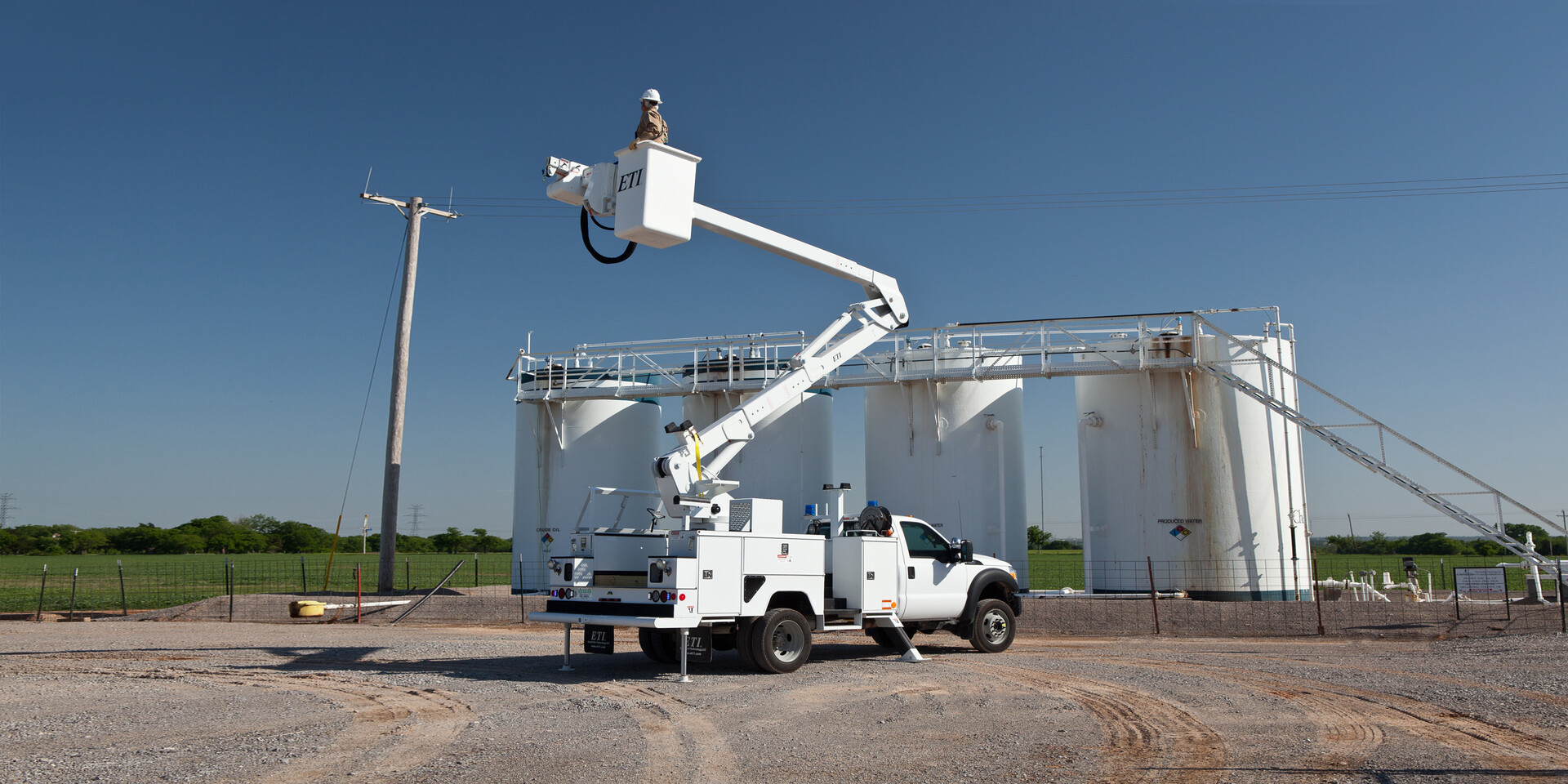

Insulated Over-Center Material Handler

The ETO 40 Material Handler is an insulated, articulating over-center material handler that offers competitive features for a unit of its class. With a working height of 45 ft, this unit offers continuous rotation, full pressure hydraulic controls, outriggers, and a 400 lbs. bucket capacity.

This ETO 40 MH aerial lift truck offers powerful material handling capabilities with a hydraulic winch and 5' jib that can lift up to 1,000 lbs.

Height to bottom of bucket Working height Side reach Rated bucket capacity Operating pressure Operating volume GVWR (dual rear wheels) GAWR (front) GAWR (rear) C.A.
ETO 40 MH 39' - 7" 44' - 7" 33' - 4" 400 2400 8 15000 6000 13500 84
Height to bottom of bucket Working height Side reach Rated bucket capacity Operating pressure Operating volume GVWR (dual rear wheels) GAWR (front) GAWR (rear) C.A.
ETO 40 MH 12.06 m 13.59 m 10.16 m 181.4 165.47 30 6804 2722 6124 213.36
  • Continuous rotation is standard on all ETO MH units.
  • Full pressure hydraulic controls located at basket and turret with full feathering capabilities from both upper and lower controls.
  • Positive chain and rod leveling based on parallelogram system ensuring long life and minimum leveling system maintenance.
  • Shear ball rotation with an extended shaft for manual rotation.
  • Internally mounted holding valves (integral part of cylinder) lock cylinders in place in the event of a hydraulic failure.
  • All pins turn on maintenance free replaceable bushings.
  • 90 degree bucket rotator.
  • Single handle upper control.
  • Lower boom fiberglass insert.
  • Hydraulic winch and 5 ft. jib - up to 1,000 lbs. material handling capacity.
  • 24“ x 30“ basket.
  • 2 sets of outriggers.
  • Up to 400 lbs. bucket capacity.
  • Emergency hydraulic power (12VDC).
  • Engine start/stop at bucket.
  • Hydraulic tool circuit.
  • Two speed throttle.
  • Bucket tilt/rescue
  • 69 KV Rating - Category B.
  • Bucket liner.
  • Bucket cover.
  • Hydraulic extend jib.
  • Outrigger/boom interlock.
  • Single set outrigger.
