Non-insulated Bucket Van model

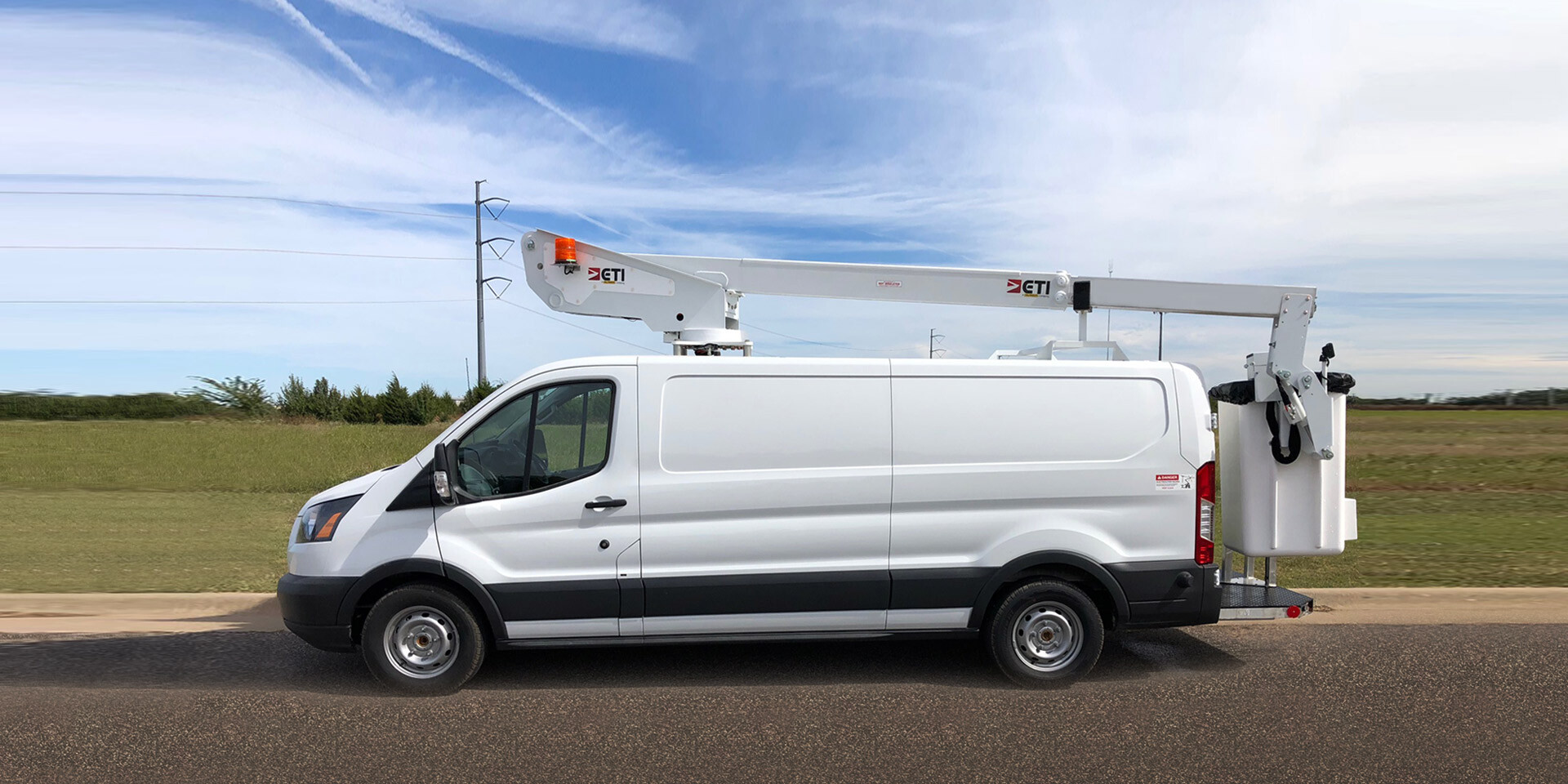

The ETT 29 SNV is a van-mounted non-insulated aerial unit. With a working height of up to 35 feet, this unit is available on the Sprinter and Transit van chassis.
One of the many innovative features of this unit is that the inside of the van is designed with a bridge frame to provide increased storage capacity and greater accessibility. Standard features include a hydraulic platform leveling, an inner boom actuated by a cylinder extension system, and internally mounted holding valves that lock cylinders in place in the event of a hydraulic failure. This unit offers various options, from adding an electric tool circuit to an oversized bucket to satisfy every equipment need.
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Ford Transit T350 | 29' | 34' | 20' 9" | 350 | 2250 | 2.5 | 9500 | 4130 | 5515 | 14 |
| Sprinter Van | 30' | 35' | 20' 9" | 350 | 2250 | 2.5 | 11030 | 4410 | 7720 | 14 |
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Ford Transit T350 | 8.84 m | 10.36 m | 6.32 m | 158 | 155.13 | 9.5 | 4309 | 1873 | 2502 | 35.6 |
| Sprinter Van | 9.14 m | 10.67 m | 6.32 m | 158 | 155.13 | 9.5 | 5003 | 2000 | 3502 | 35.6 |
- Van mounted units utilize a bridge frame in lieu of pedestal providing increased storage capacity and greater accessibility to van interior.
- Shear ball rotation gear driven by internal drive gear box.
- All pins turn on replaceable bushings.
- The gear box has an extended shaft for manual rotation.
- Inner boom is actuated by a cylinder extension system.
- Adjustable wear pads.
- Internally mounted holding valves (integral part of cylinder) lock cylinders in place in event of hydraulic failure.
- Lower controls accessible from the ground.
- Hydraulic platform leveling
- Splicer bucket
- Emergency hydraulic power system
- Start/stop system
- Bucket cover
- Airline to bucket
- Electric tool circuit
- Oversize bucket (24” x 30” x 42”)
- Inverter
- LED Interior lighting
- Interior shelving
- Generator
Hydraulic Power Options
- Fan belt pump
- DC Power
- Generator
