Non-insulated
ETC 43 SNT
- Go back
- Home
- Products
- Bucket Trucks
- Models
- ETC 43 SNT
Bucket Trucks
Articulated Telescopic Non-Insulated
Imperial
Metric
Type
Type
Articulated Telescopic
Articulated Telescopic
Working height
Working height
14.63 m
48'
Side reach
Side reach
9.07 m
29' 9"

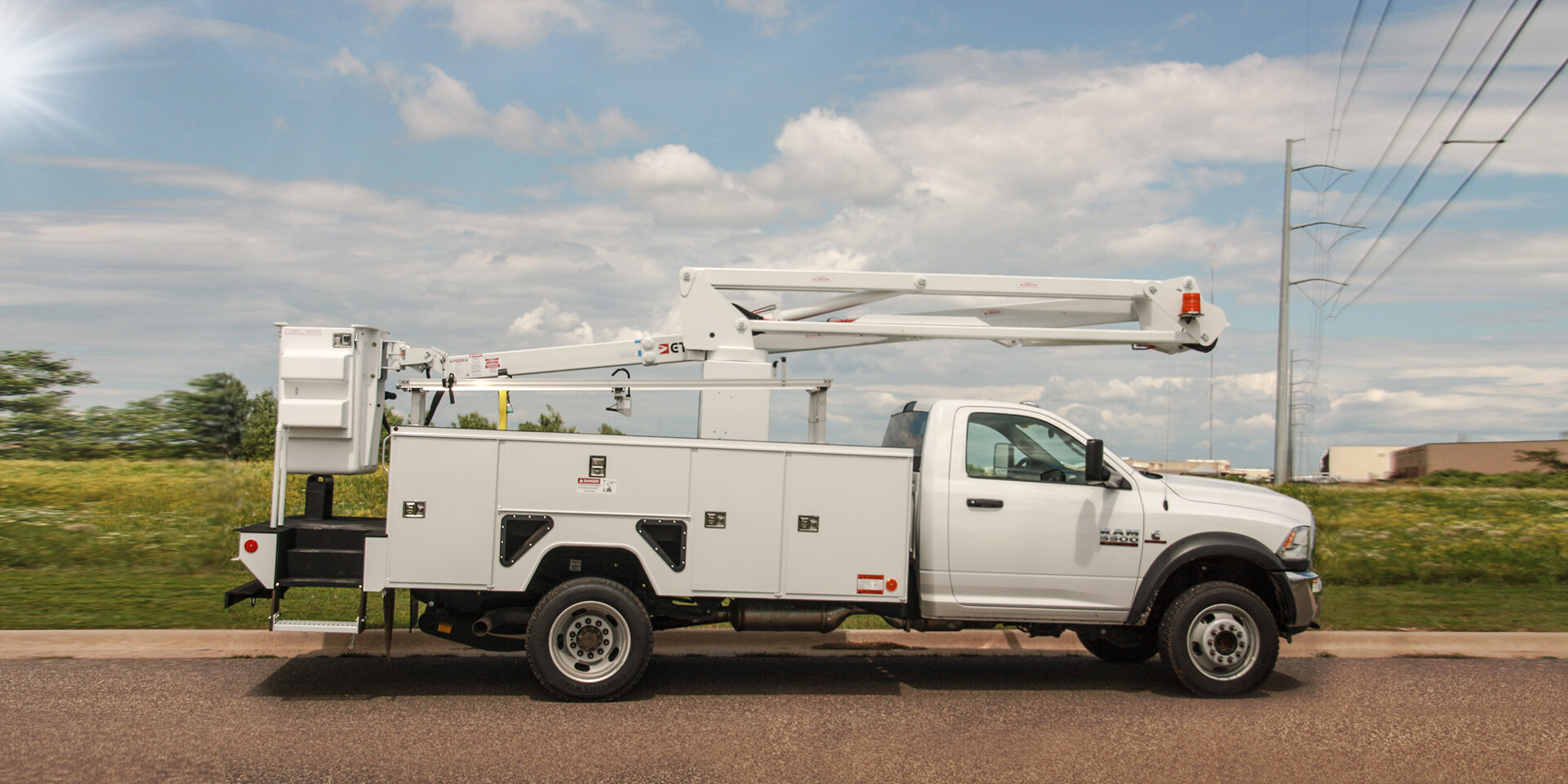

The ETC 43 SNT is a non-insulated unit with 48’ of working height and 390 degrees of non-continuous rotation. This aerial is an articulated, telescoping model providing the end user a powerful solution to meet all personnel lifting needs in the field.
Bucket mounted controls, variable speed controls and hydraulic bucket leveling are standard on this unit with a multitude of available options to suit each customized need.
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| ETC 43 SNT | 43' | 48' | 29' - 9" | 350 | 2250 | 4.5 | 19500 | 7000 | 13500 | 84 |
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| ETC 43 SNT | 13.12 m | 14.63 m | 9.07 m | 158.7 | 155.13 | 17 | 8845 | 3175 | 6124 | 213.4 |
- Bucket mounted controls.
- Variable speed controls.
- Hydraulic bucket leveling.
- Emergency upper boom controlled descent.
- Engine start/stop at bucket.
- Hoses inside Boom are contained in a cat trac.
- 12 gallon oil reservoir.
- Emergency hydraulic power (12VDC).
- Air line to bucket.
- 180 degree bucket rotator.
- PTO Power source.
- 12VDC power source.
