Knuckle Boom Crane
SPK 15500
SPK 15500

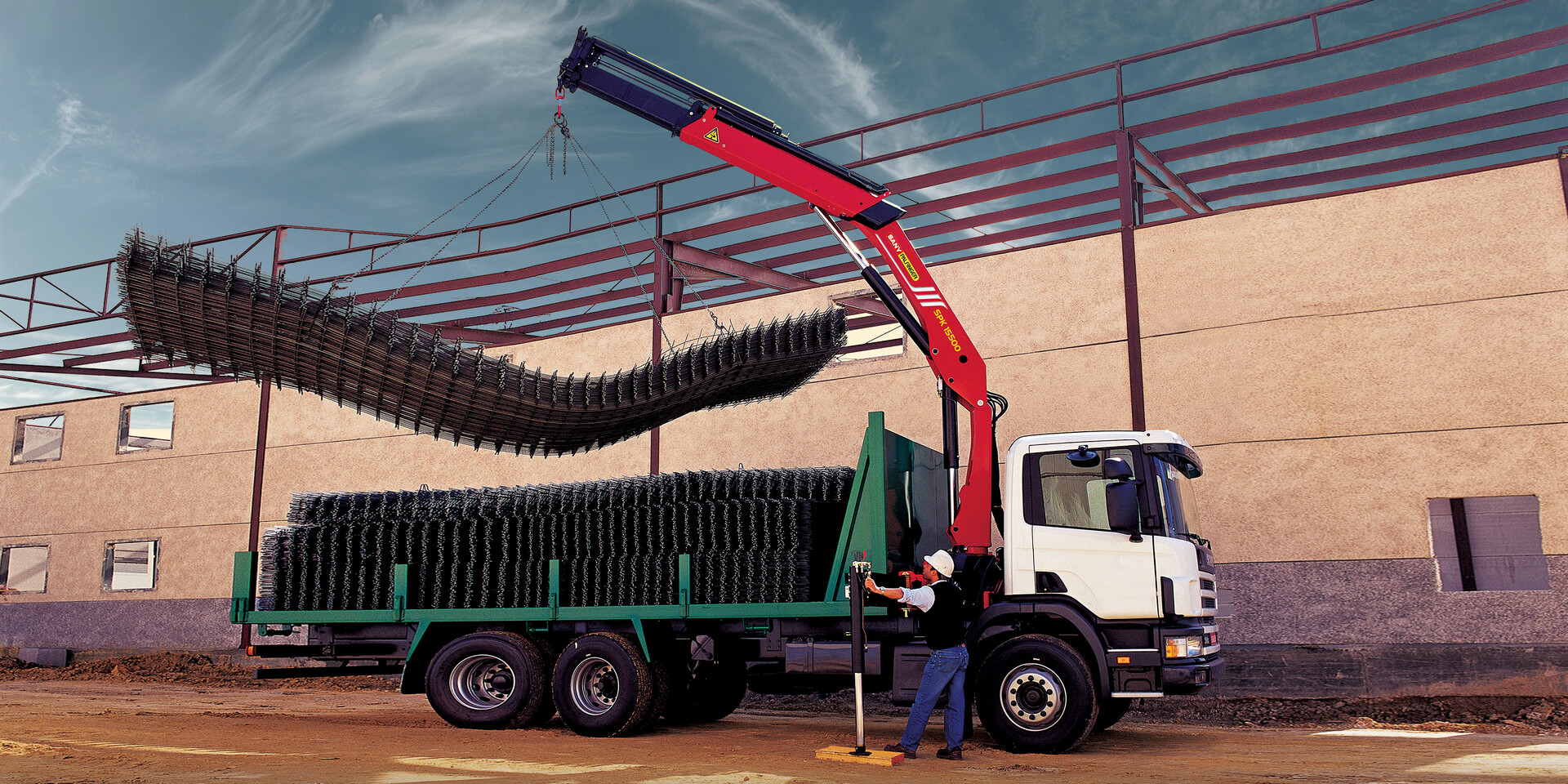

SANY PALFINGER Knuckle Boom Crane
| Max. lifting moment | 14.6 mt |
| Max. lifting capacity | 6200 kg |
| Max. hydrauic outreach | 6.2 m (Std.) / 8.1 m (A) / 10.3 m (B) / 12.4 m (C) |
| Slewing angle | 420° |
| Slewing torque | 1.80 mt |
| Stabilizer spread (std.) | 5600 mm (R2 / R2X) |
| Fitting space required (std.) | 810 mm |
| Width folded | 2500 mm |
| Max. operating pressure | 300 bar |
| Pump capacity | 40 - 60 l/min |
| Dead weight (std.) | 1689 kg |
