ARD Models

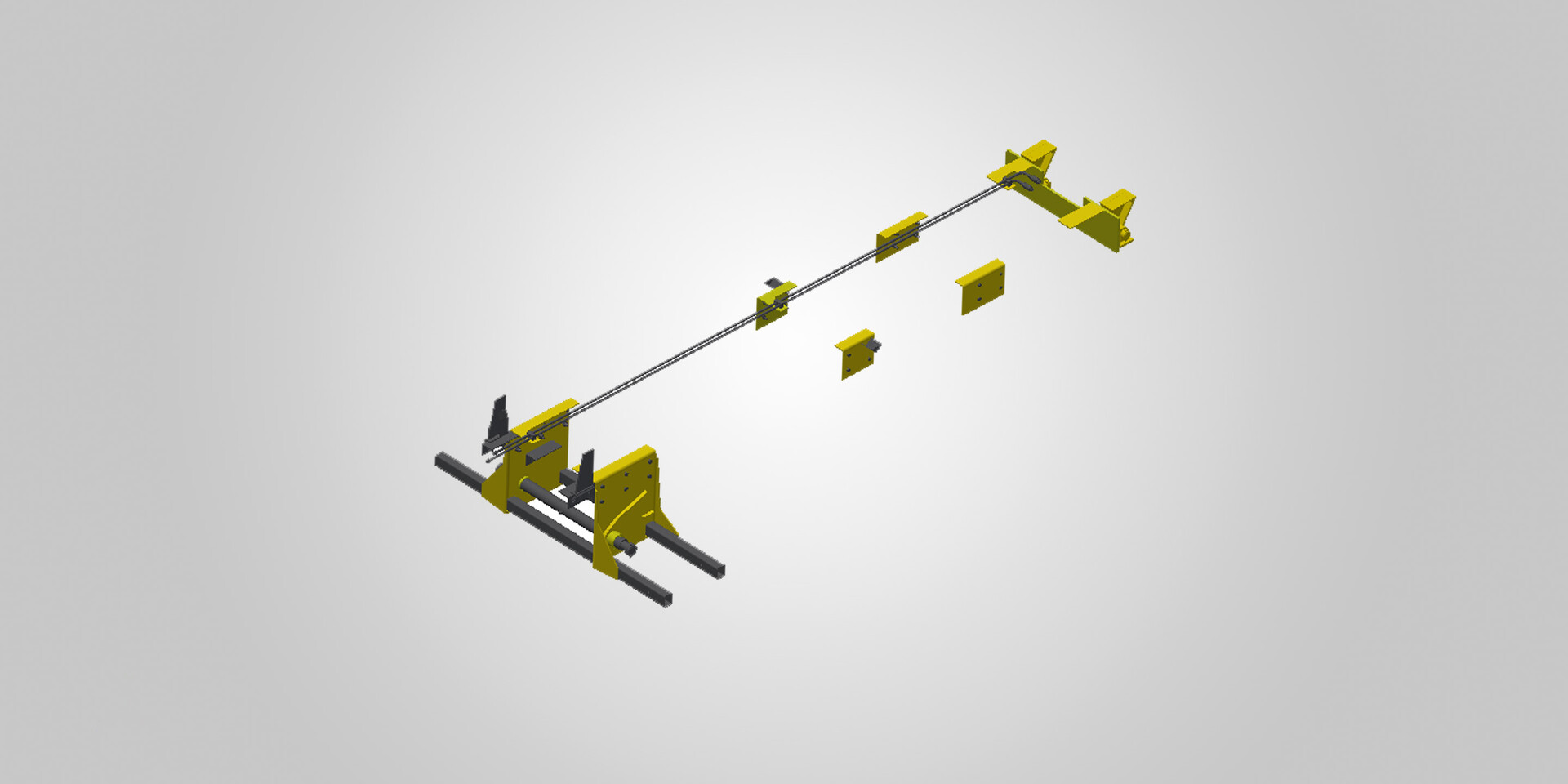

A lighter alternative to our Basic Mount Series, the PALFINGER Direct Mount Cable Roll-off Hoists have the same features and benefits as our Basic Mount Cable Roll-off hoist but by eliminating the sub frame, you connect the hoist right to your chassis.
| Capacity (lb) | Container length (ft.) | Dump angle | Min C/T (in.) | Hoist length (in.) | GVWR F/R (lb.) | |
|---|---|---|---|---|---|---|
| ARD 60-22 | 60000 | 12-22 ft. | 48 | 176 | 236 | 18,000/46,000 |
| ARD 75-22 | 60000 | 12-22 ft. | 48 | 176 | 236 | 18,000/46,000 |
| ARD 75-22 ET | 60000 | 12-22 ft. | 48 | 176 | 236 | 18,000/46,000 |
| ARD 75-22 IO | 60000 | 12-22 ft. | 48 | 176 | 236 | 18,000/46,000 |
| ARD 75-24 | 75000 | 12-24 ft. | 48 | 194 | 254 | 18,000/46,000 |
| ARD 75-24 IO | 75000 | 12-24 ft. | 48 | 194 | 254 | 18,000/46,000 |
Offering capacity ranges of 60,000 and 75,000 lbs., our Direct Mount Cable Roll-off Hoists are strong solutions for your needs. Eliminate the sub frame and connect the hoist right to your chassis with our Direct Mount Hoist.
| Capacity (kg) | Container length (m) | Dump angle | Min C/T (in) | Hoist length (cm) | GVWR F/R (lbs.) | |
|---|---|---|---|---|---|---|
| ARD 60-22 | 27215 | 3.66-6.71 | 48 | 176 | 599.44 | 18,000/46,000 |
| ARD 75-22 | 27215 | 3.66-6.71 m | 48 | 176 | 599.44 | 18,000/46,000 |
| ARD 75-22 ET | 27215 | 3.66-6.71 | 48 | 176 | 599.44 | 18,000/46,000 |
| ARD 75-22 IO | 27215 | 3.666.71 m | 48 | 176 | 599.44 | 18,000/46,000 |
| ARD 75-24 | 34019 | 3.667.32 m | 48 | 194 | 645.16 | 18,000/46,000 |
| ARD 75-24 IO | 34019 | 3.66-7.32 m | 48 | 194 | 645.16 | 18,000/46,000 |
Offering capacity ranges of 60,000 and 75,000 lbs., our Direct Mount Cable Roll-off Hoists are strong solutions for your needs. Eliminate the sub frame and connect the hoist right to your chassis with our Direct Mount Hoist.
- Fixed front locks
- Reeving cylinder
- Lifting cylinider
- Heavy duty hinges and pivots
- Low profile track
- Casted lift cylinder baskets
- Hydraulic return filter
- Support steel ramps
- Extendable tail
- Tail cylinder under track
