ARB Models

Cable Hoist
Imperial Metric
Type ARB
Max Length 7.32 m
Max Capacity 34019 kg
Technical Data

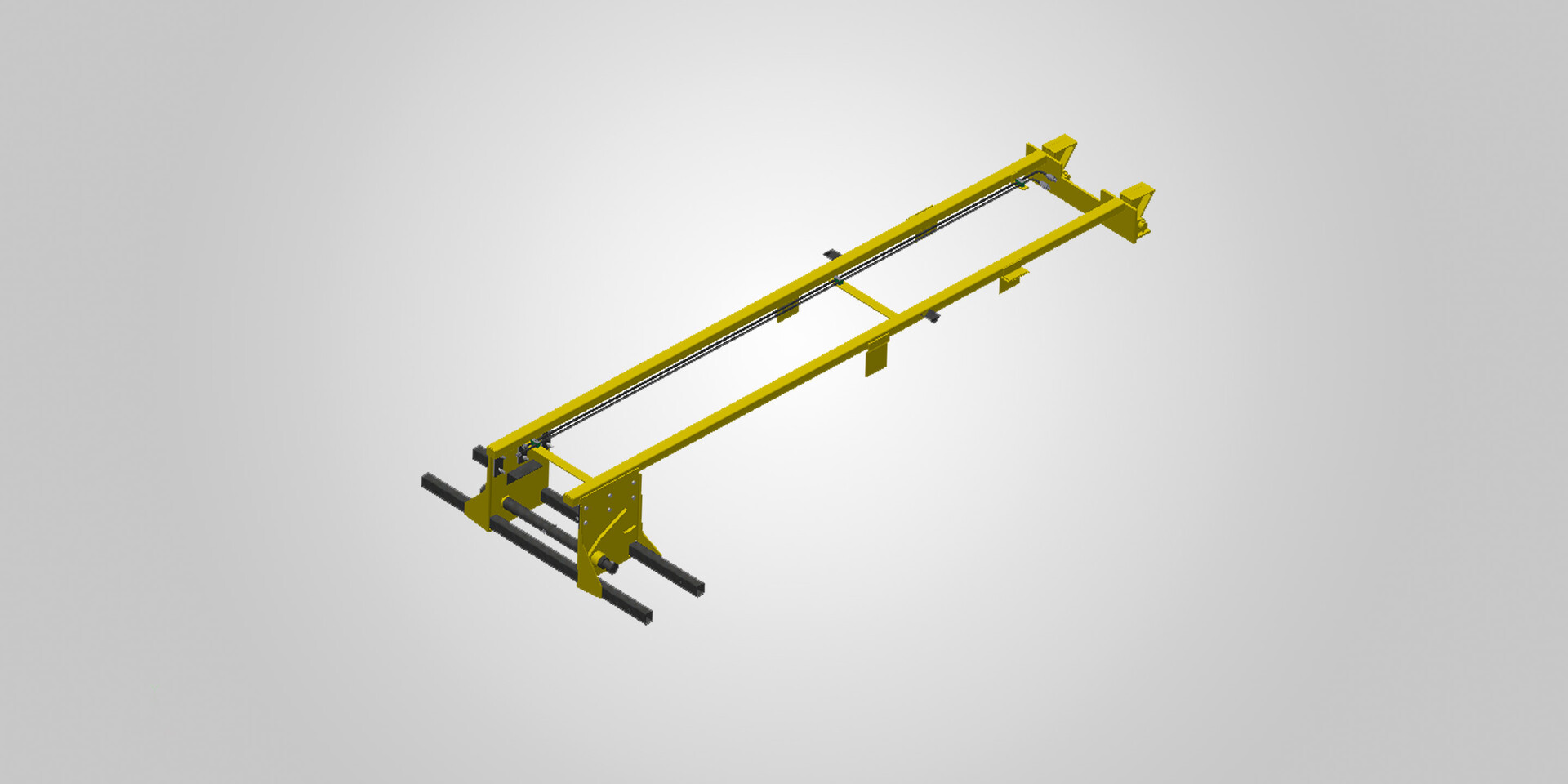

Offering capacity ranges of 60,000 and 75,000 lbs., our Basic Mount Cable Roll-off Hoists are strong solutions for your needs. In addition, the Basic Mount offers a standard subframe to mount the hoist to your chassis, adding significant strength to the unit. For a lighter alternative, eliminate the subframe and connect the hoist right to your chassis with our Direct Mount.

Downloads
Capacity (lb) Container length (ft.) Dump angle Min C/A (in.) Min C/T (in.) Hoist length (in.) GVWR F/R (lb.)
ARB 60-22 60000 12-22 ft. 48 176 289 18,000/46,000
ARB 75-22 75000 12-22 ft. 48 - 176 289 18,000/46,000
ARB 75-22 ET 75000 12-22 ft. 48 - 176 320 18,000/46,000
ARB 75-24 75000 12-24 ft. 48 - 194 307 18,000/46,000
ARB 75-24 ET 75000 12-24 ft. 48 - 194 367 18,000/46,000
Capacity (kg) Container length (m) Dump angle Min C/A (in) Min C/T (in) Hoist length (cm) GVWR F/R (lbs.)
ARB 60-22 27215 3.66-6.71 m 48 176 734.06 18,000/46,000
ARB 75-22 34019 3.66-6.71 m 48 - 176 734.06 18,000/46,000
ARB 75-22 ET 34019 3.66-6.71 m 48 - 176 812.8 18,000/46,000
ARB 75-24 34019 3.66-7.32 m 48 - 194 779.78 18,000/46,000
ARB 75-24 ET 34019 3.66-7.32 m 48 - 194 932.18 18,000/46,000
  • Durable fixed front locks
  • Solid rod reeving cylinders
  • JIC hydrualic tubes
  • Heavy duty hinges and pivots
  • Low profile track
  • Casted lift cylinder baskets
  • Hydraulic return filter
  • Support steel ramps
  • Tail cylinder under track
