Bucket Trucks

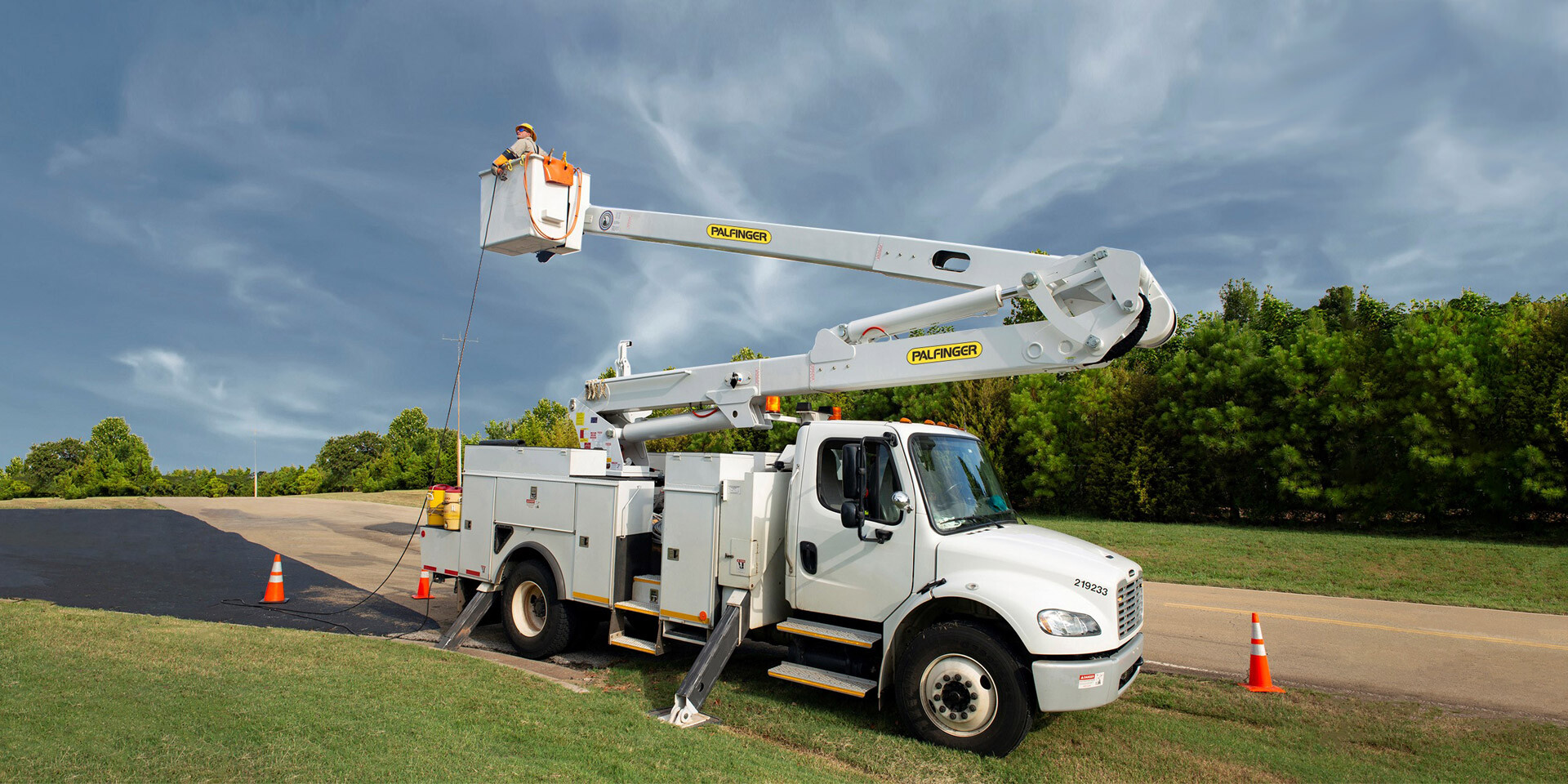

The ETO 55 Material Handler is an insulated, over-center material handler that offers competitive features for a unit of its class. With a working height of nearly 60 feet, this unit offers continuous rotation, full pressure hydraulic controls, outriggers, and a 800 pound bucket capacity.
The ETO MH 55 IH aerial lift truck offers unique features such as a new generation leveling system and bucket access design in the non-overcenter position giving the end-user the benefit of thoughtful, customer-focused engineering.
This model also offers powerful material handling capabilities with a hydraulic winch and 5‘ jib that can lift up to 2,000 lbs.
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| ETO MH 55 IH | 54' - 8" | 59' 8" | 48' 11" | 800 | 3000 | 13 | 33000 | 14000 | 21000 | 120 |
| ETO 55 MHE | 54' 8" | 59' 8" | 48' 11" | 800 | 3000 | 13 | 33000 | 14000 | 21000 | 120 |
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| ETO MH 55 IH | 16.66 m | 18.19 m | 14.91 m | 362.8 | 206.84 | 49 | 14969 | 6350 | 9525 | 304.8 |
| ETO 55 MHE | 16.66 m | 18.19 m | 14.91 m | 362.8 | 206.84 | 49 | 14969 | 6350 | 9525 | 304.8 |
- Continuous rotation is standard on all ETO MH units.
- Full pressure hydraulic controls located at basket and turret with full feathering capabilities from both upper and lower controls.
- Shear ball rotation with an extended shaft for manual rotation.
- Internally mounted holding valves (integral part of cylinder) lock cylinders in place in the event of a hydraulic failure.
- All pins turn on maintenance free replaceable bushings.
- 90 degree bucket rotator.
- Single handle upper control.
- Lower boom fiberglass insert.
- Hydraulic winch and 5 ft. jib - up to 2,000 lbs. material handling capacity.
- 24“ x 30“ or 24” x 48” basket.
- 2 sets of outriggers.
- Up to 800 lbs. bucket capacity.
- Emergency hydraulic power (12VDC).
- Engine start/stop at bucket.
- Single or Dual Hydraulic tool circuit.
- 69 KV Rating - Category B.
- Two speed throttle.
- Bucket liner.
- Bucket cover.
- Hydraulic extend jib.
