Insulated
ETC MH 37 IH
Bucket Trucks
ARTICULATED TELESCOPIC INSULATED MATERIAL HANDLING

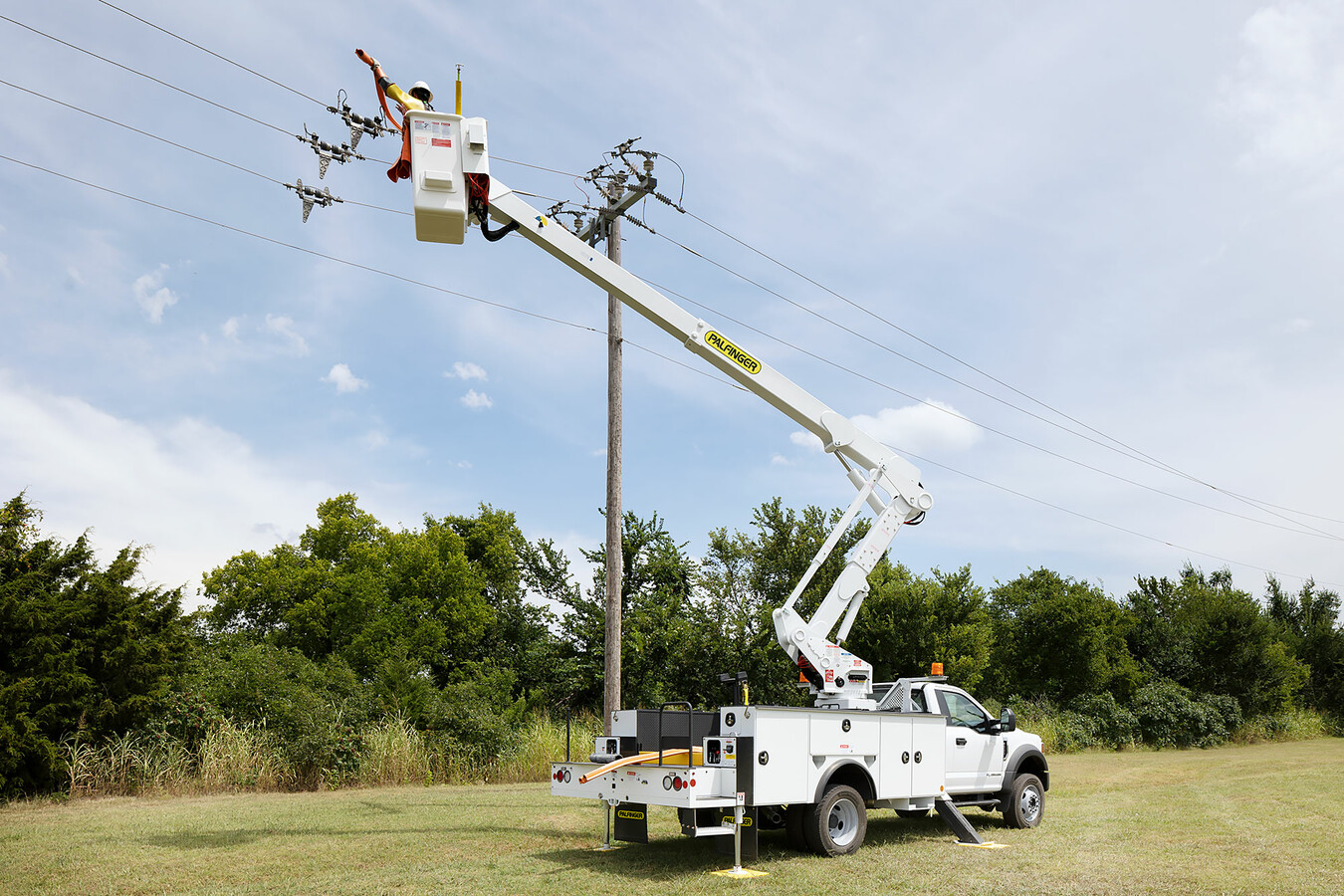

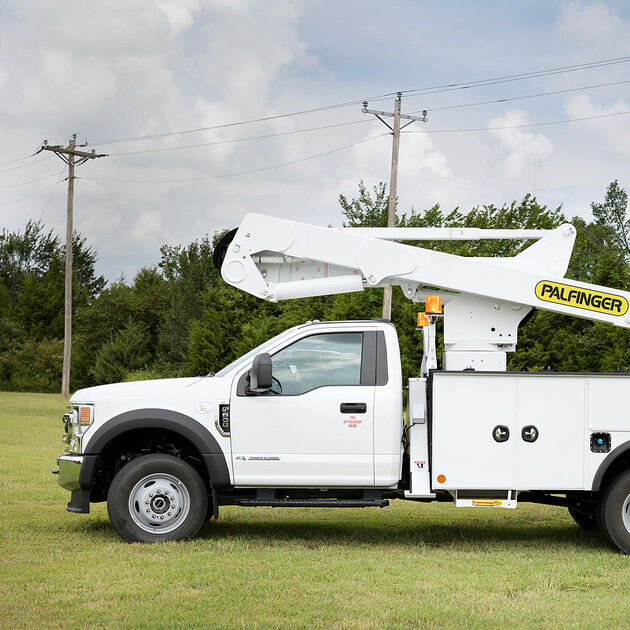

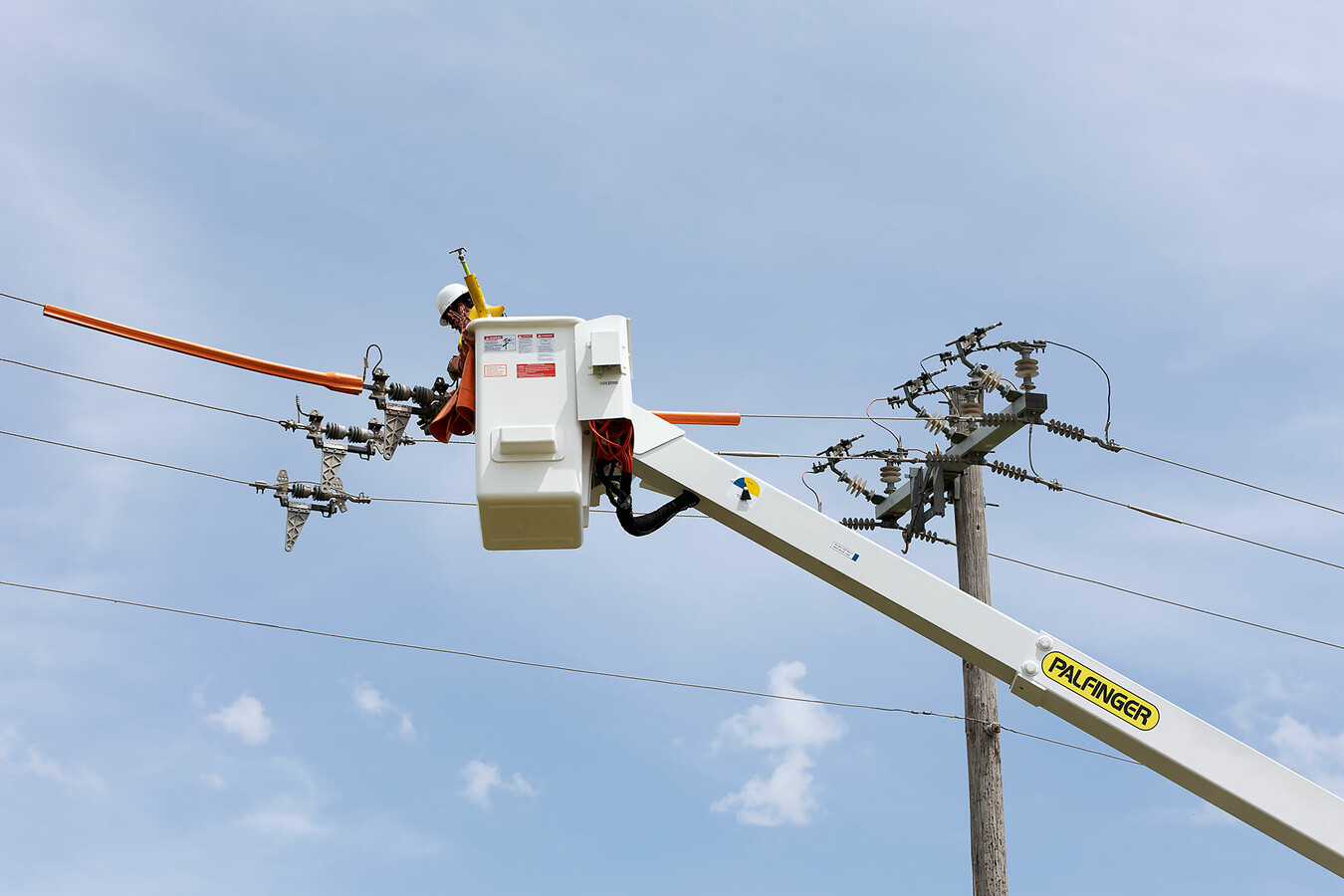

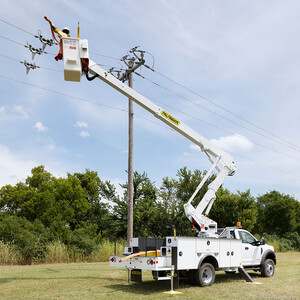

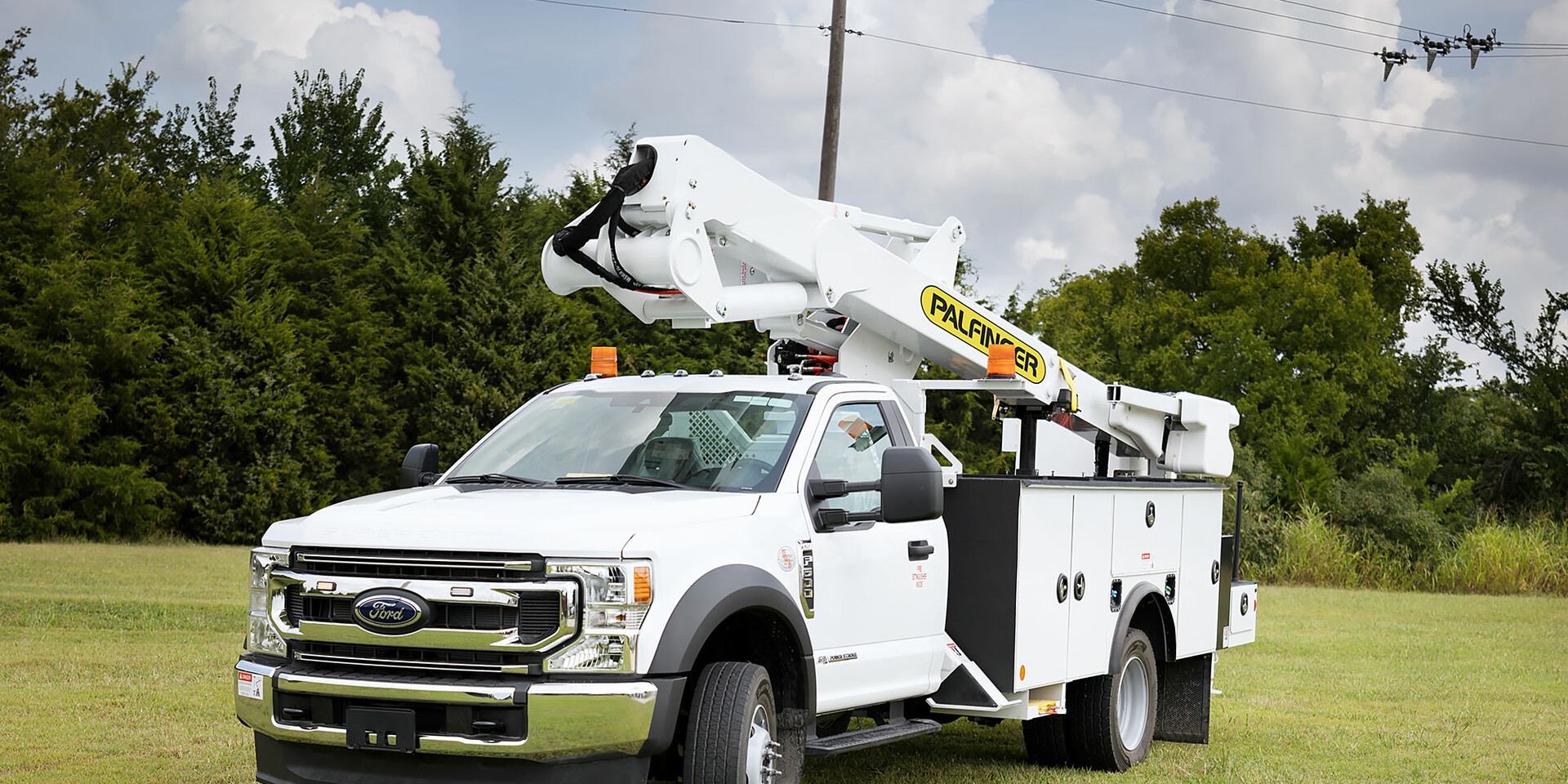

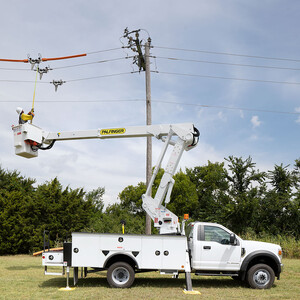

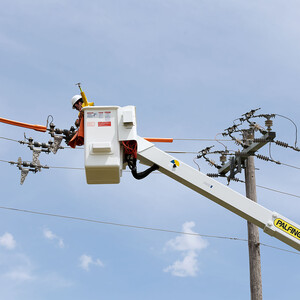

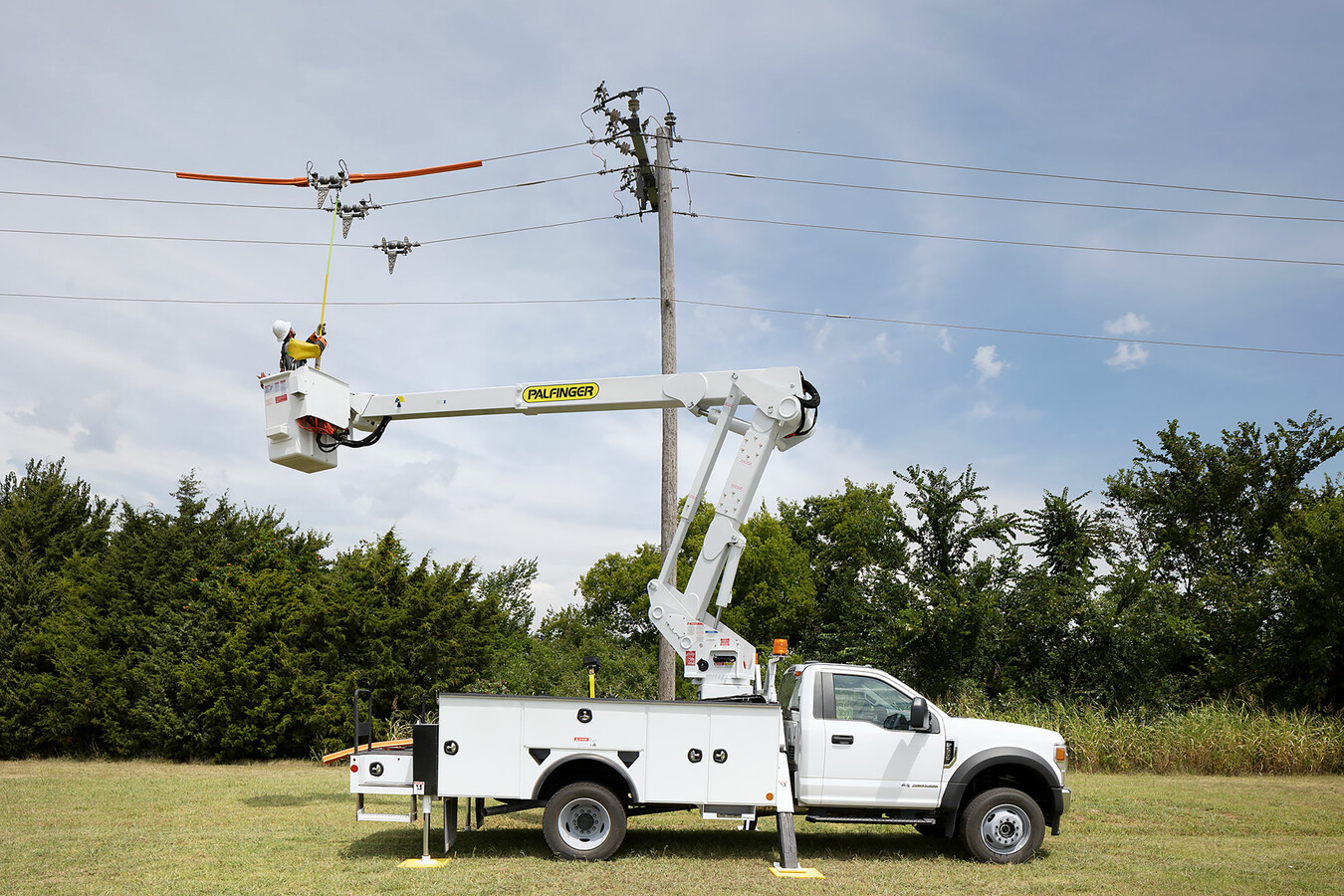

The ETC MH 37 IH is a versatile insulated unit that is well suited to those customers in need of an aerial unit that can offer powerful capabilities. With an articulating and telescoping aerial lift that reaches a height of 37’ to the bottom of the bucket, this unit has a standard option continuous rotation allowing for unrestricted rotation.
This model also offers material handling capabilities with a hydraulic winch and a 5’ jib that can lift up to 1,000 lbs. utilizing the full 27 ft - 5 in. of hydraulic reach.
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| ETC MH 37 IH | 37' - 0" | 42' - 0" | 27' - 5" | 400 | 2400 | 8 | 19500 | 7000 | 13500 | 84 |
| Height to bottom of bucket | Working height | Side reach | Rated bucket capacity | Operating pressure | Operating volume | GVWR (dual rear wheels) | GAWR (front) | GAWR (rear) | C.A. | |
|---|---|---|---|---|---|---|---|---|---|---|
| ETC MH 37 IH | 11.28 m | 12.80 m | 8.36 m | 181.4 | 165.47 | 30.3 | 8845 | 3175 | 6124 | 213.4 |
