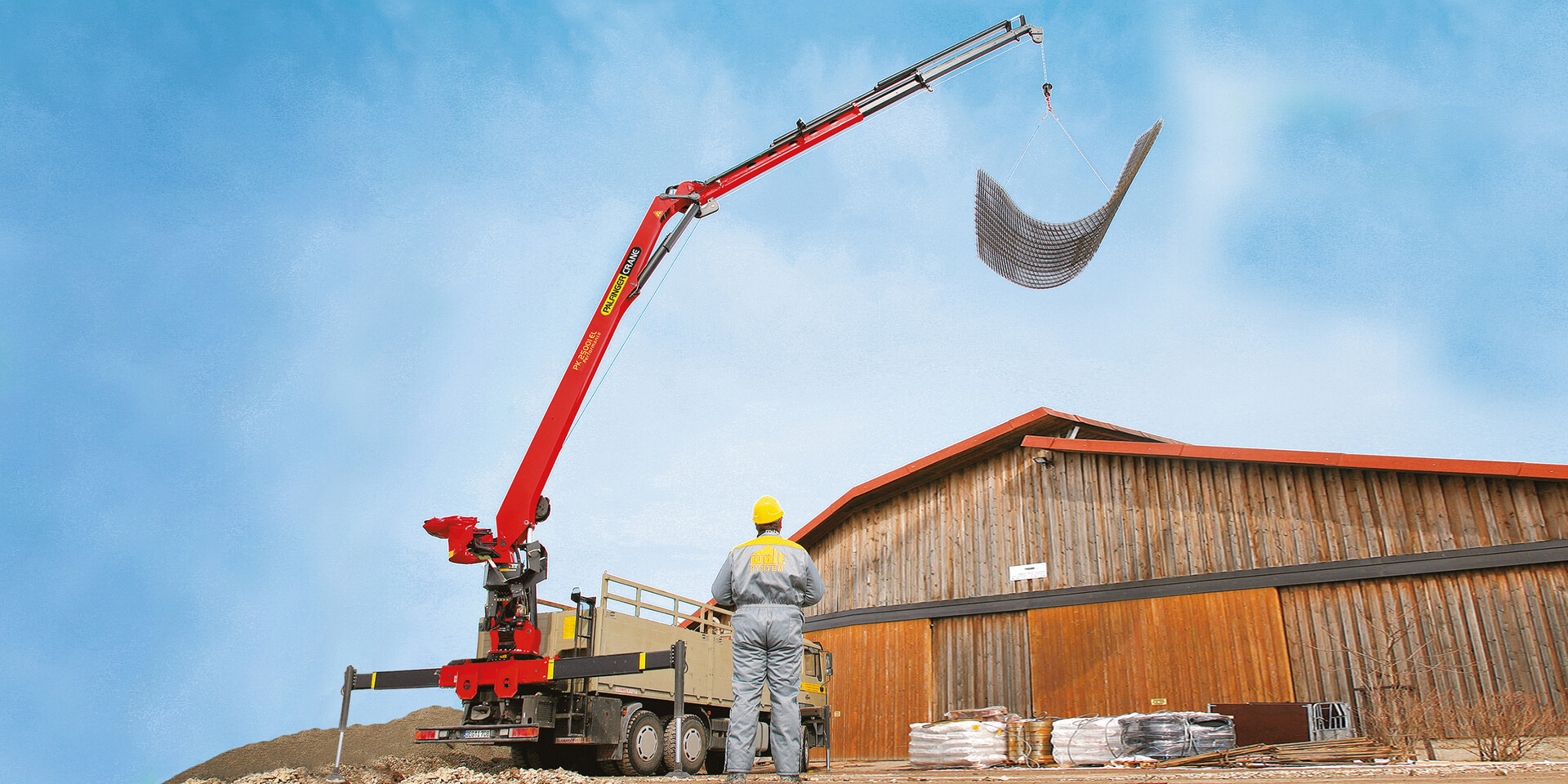

PK 25001 EL Performance
Loader Crane
PK 25001 EL Performance
| Max. lifting moment | 23.4 mt |
| Max. lifting capacity | 4850 kg |
| Max. hydraulic outreach | 25.5 m |
| Max. manual outreach | 32.5 m |
| Slewing angle | ∞ |
| Slewing torque with 1 gear | 3.3 mt |
| Slewing torque with 2 gears | 4.1 mt |
| Max. operating pressure | 330 bar |
| Pump capacity | 70 - 90 l/min |
| Dead weight (std) | 3298 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation With (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| A | 21.3 | 18.3 | ∞ | 3.3 | 33.0 | 70-90 | 3298 | 2534 | 2500 | - |
| B | 19.3 | 21.9 | ∞ | 3.3 | 33.0 | 70-90 | 3541 | 2534 | 2500 | - |
| C | 17.8 | 25.5 | ∞ | 3.3 | 33.0 | 70-90 | 3728 | 2534 | 2500 | - |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
