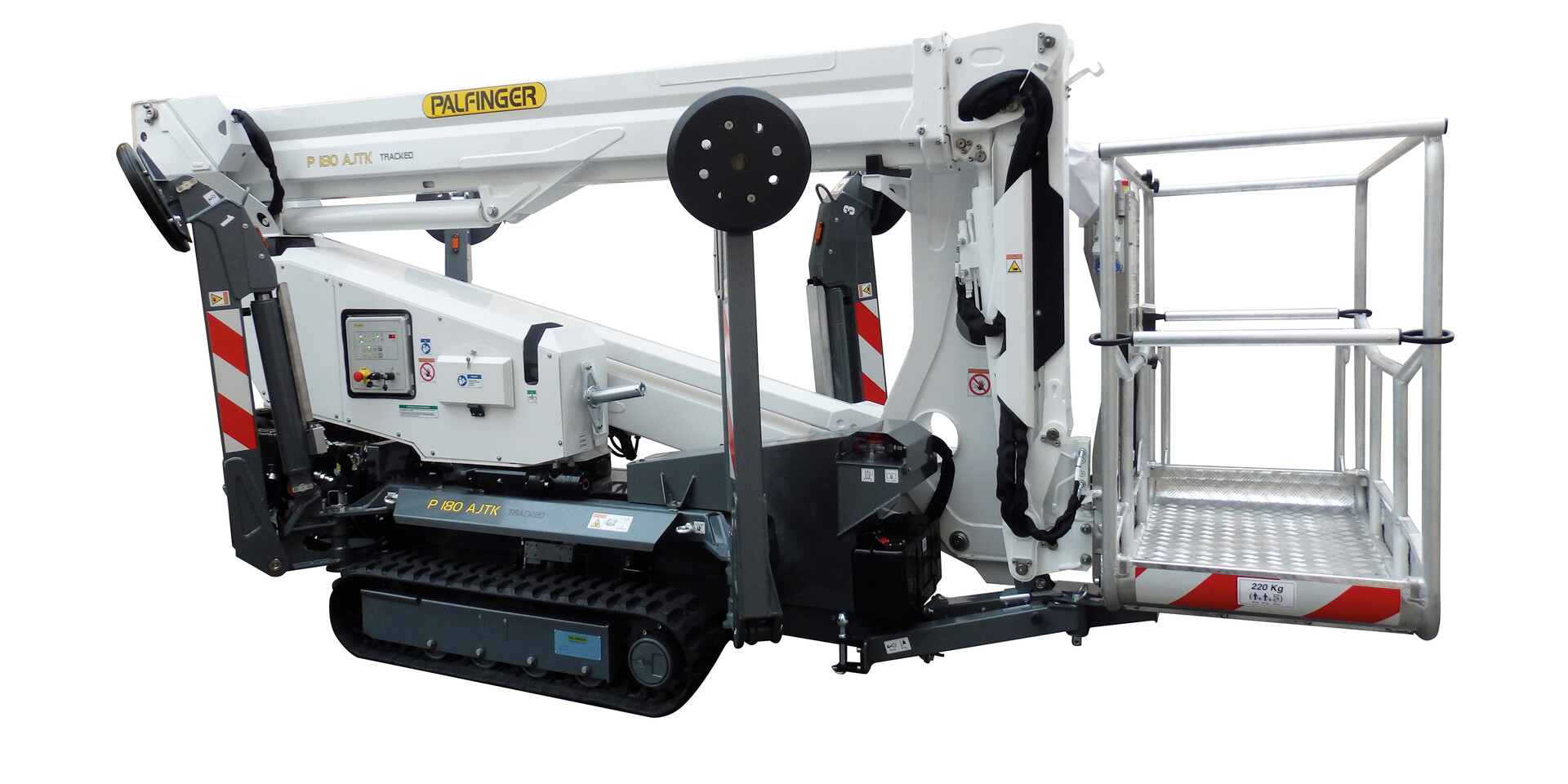

P 180 AJTK
P 180 AJTK
Working Height 17.7 m
Basket Load 220 kg
Side Reach 7,7 m With basket rotation (opt)
|Max. height of work||17.7 m|
|Max. basket floor height||15.7 m|
|Max. horizontal outreach /with basket load||7,7 m With basket rotation (opt)|
|max. basket load||220 kg|
|Workman basket - breadth / length / height||1,4 x 0,7 x 1,1 m removable|
|Angle of main boom||0° + 80°|
|Rotation angle of turntable||360°|
|Engine featured as standard||14 HP, petrol|
|Height in transport position||2.00 m|
|Width in transport position||1.40 m|
|Length in transport position||4.44 m|
|Overall weight||2400 kg|
*above mentioned values are standard values and vary depending on options and chassis
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
