PK 23001-EH High Performance

Loader Crane

PK 23001-EH High Performance

Single Link Plus and E-HPLS offer additional applications

  • More lifting power thanks to E-HPLS
  • High value retention due to coating technology
  • High value retention thanks to coating technology
  • Increased operating times thanks to low-maintenance extension system
  • Shorter load cycle times due to High Speed extension


The PALFINGER HIGH POWER LIFTING SYSTEM (HPLS) increases the capacity of a crane up to around 10% with reduced operating speed.The new electronic version (E- HPLS) is controlled by the PALTRONIC safety system.

Low-maintenance extension system

With sliding elements made of synthetic material and the high-quality KTL coating, this boom system significantly simplifies service performed by the operator. This saves time and money – and protects the environment.

Return oil utilisation

The high speed of the extension system is impressive. It results from return oil utilisation, which is installed as standard, and the generously dimensioned hydraulic lines. This increases efficiency in all types of applications!

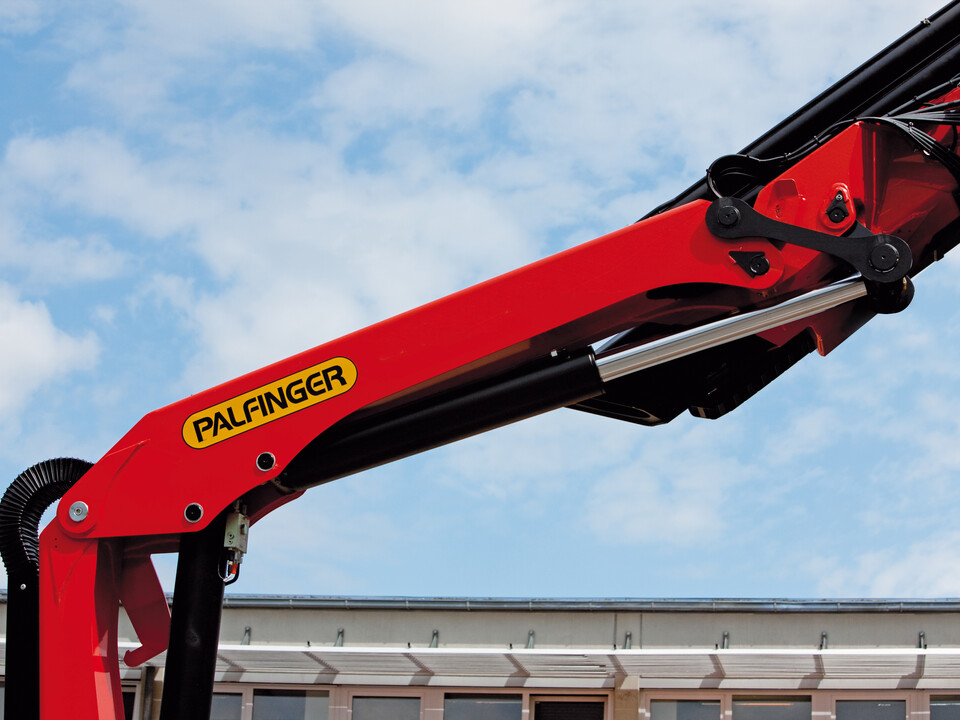

Single Link Plus

The knuckle joint on the crane's knuckle boom improves the crane's lifting power significantly in typical working positions. This knuckle boom, which has been specially developed by PALFINGER and can be angled upwards, also stands out by virtue of excellent movement geometry. Difficult crane jobs can be performed with precision even in the tightest spaces.



PK 20001 / 23001 EH

2,78 MB Download
