Skiploader

PS T 14 TEC

  1. Go back
  2. Home
  3. Products
  4. Hookloader and Skiploader
  5. Models
  6. PS T 14 TEC
Hooklift
Recommended Application
Lifting Capacity
Technical Data

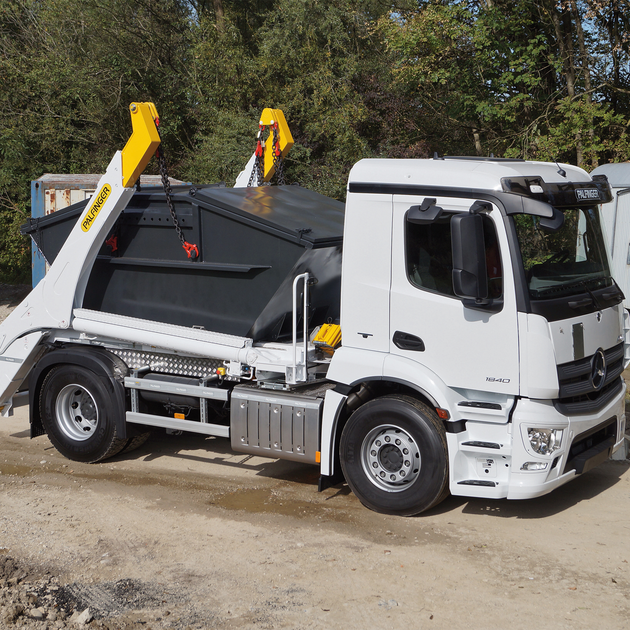

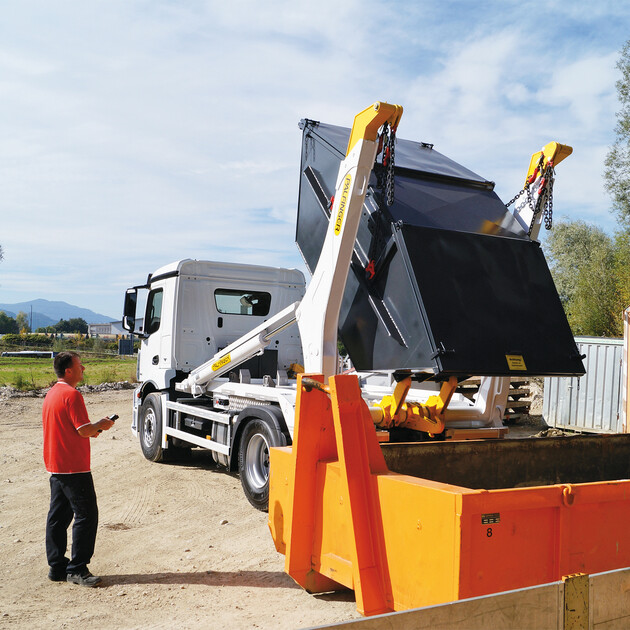

Thanks to its user-friendly design the PS T 14 TEC is able to load quickly and accurately unfavorable standing container. The skiploader is with its radio remote control easy to use. It convinces with lasting quality : ex-works final coated components and fully screwed trucks mounting.

  • Lateral hydraulic locking secures container in transport position
  • Radio remote control allows full visibility of the working area
  • Rapid motion increases the speed and reduces cycle time
  • The Stop&start button minimizes fuel consumption
  • Wide choice of options
Downloads
LiftingPower (Telescope stabilizer retracted) 14000 kg
Lifting power (Telecope stabilizer extended) 9000 kg
Telescope extension 1400 mm
Load in pit 800 mm
Telescopic arm extension extended 4310 mm
Hydraulic pump capacity ≥ 80 l
Working pressure 25 Mpa
Downloads

Brochures

Skiploader - PS T 14-18

1,64 MB Download

Hook and Skiploader - Mounting Accessories

14,15 MB Download
