Model details

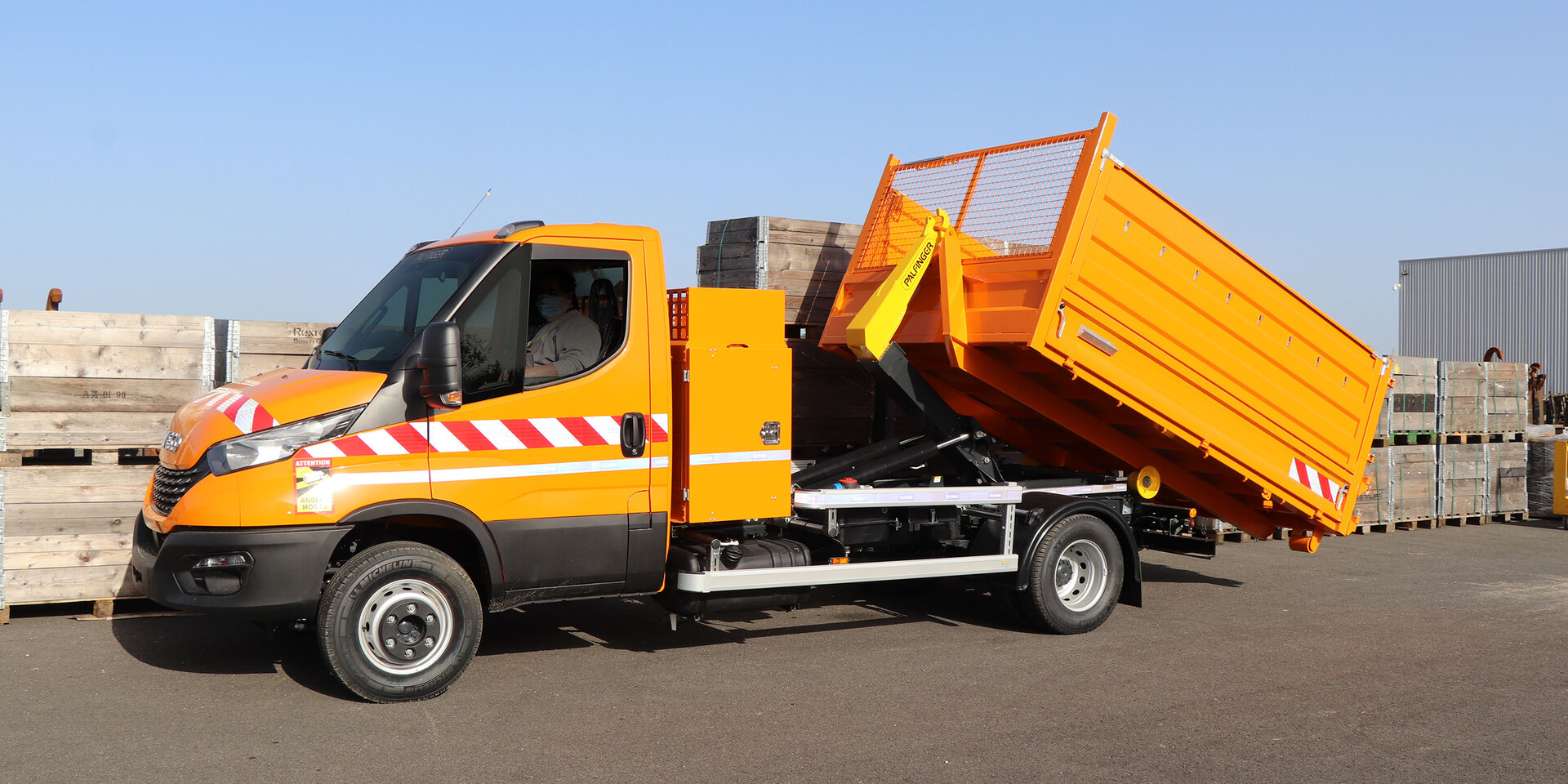

PH T 05 SLD

CHARACTERISTICS

The new Hookloader PALFINGER PH T05 SLD complete our versatility expert range. Its ease of use and the wide range of possible containers combine to increased payload fit to all demands. The user friendly and ergonomic cab control offer an excellent handling of your PALFINGER hookloader.

ADVANTAGES

  • User friendly
  • Ergonomic & intuitive control system
  • Safe operation
  • Loading containers of different lenghts
  • Proven reliability

Highlights

POP - PALFINGER Origin Protection

The main components are sand-blasted, degreased, primer painted and final coated (according to customer specification) before assembling, all other parts are zinc nickel anticorrosion treated (meets ISO 12944 standard specifications concerning surface protection, classification 3).

SAM - Secured Advanced Mounting

PALFINGER offers corrosion protected and fully boltable mounting plates and accessories

Unit length (mm) Container max. length (mm) Container min. length (mm) Transport height Weight (kg) Tipping angle (°)
3000 3800 2750 180 660 50
3150 4000 2750 180 665 50
3300 4250 3000 180 670 46
3600 4500 3200 180 685 48
3900 4800 3400 180 685 45
