MBB Trainlift

Passenger Lift

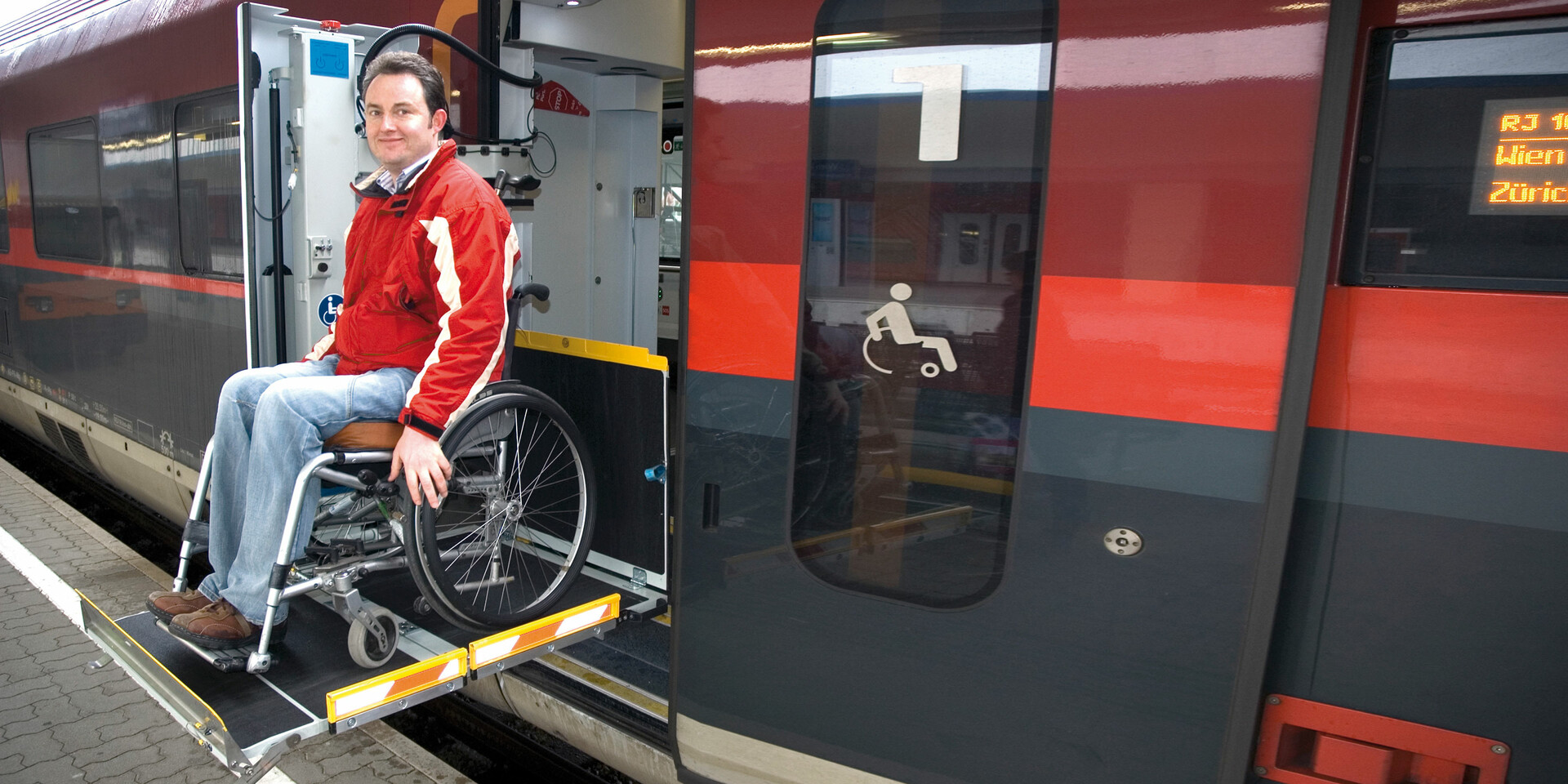

  • Semi-automatic lift installed in passenger trains
  • Specially developed and produced for vehicle manufacturer requirements
  • Enables wheelchair users to enter and exit the vehicle safely
  • Operation by trained staff only
  • Lifting height up to 1,400 mm
  • Retrofitting possible

 SAFETY DEVICES

  • Automatic roll stop
  • Lowering movement by gravity
  • Lifting/lowering only possible when swiveled out and engaged
  • Anti-slip surface
  • Lift drive secured with stroke limiting valve
  • Audible and visuel signals
  • Certified acc. to TSI PRM 1300/2014
  • Fire protection acc. to EN 45545
  • Elegant cover (option)
  • Protection against vandalism by special coating on request
Downloads Technical Data
TRAINLIFT TR 450 / TR 800 / TR 1000 TRB 1000 / TRB 1200 / TRB 1400 TRV 600 / TRV 1000 / TRV 1200
Special features Swivel lift 180° to 270° possible Swivel lift 180° Vertical lift
Lifting height  (mm) max. 1000 max. 1200 600 - 1200
Height (mm) 1060 - 1600 1200 - 1800 1200 - 1550
Depth (mm) 280 - 380 300 - 400 290
Width (mm) 1000 1000 1000
Capacity  (kg) 350 300 / 350 350
Length of the platform (mm) 1250 1250 / 1500 1250
Width of the platform  (mm) 800 800 800
Own weight  (kg) 180 - 295 180 - 250 230
Voltage  (DCV) 24 / 36/ 110 24 / 36/ 110 25 / 36/ 110
Cycle time (sec.) 120 120 120
Drive hydraulic elektric or hydraulic hydraulic
Option Design - cover Design - cover -
