PK 7.001K SLD 3
PK 7.001K SLD 3
Loader Crane
| Max. lifting moment | 6.2 mt |
| Max. lifting capacity | 3300 kg |
| Max. hydraulic outreach | 8.8 m |
| Max. manual outreach | 12.4 m |
| Slewing angle | 400° |
| Slewing torque with 1 gear | 0.8 mt |
| Stabilizer spread (std) | 3.0 m |
| Fitting space required (std) | 0.66 m |
| Width folded | 2.20 m |
| Max. operating pressure | 330 bar |
| Pump capacity | 30 l/min |
| Dead weight (std) | 735 kg |
Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
Lifting moment (mt) |
Outreach (m) |
Slewing angle (°) |
Slewing torque (mt) |
Pressure (MPa) |
Pump capacity (l/min) |
Crane Weight (kg) |
Crane Height (mm) |
Crane Width (mm) |
Installation Width (mm) |
|
|---|---|---|---|---|---|---|---|---|---|---|

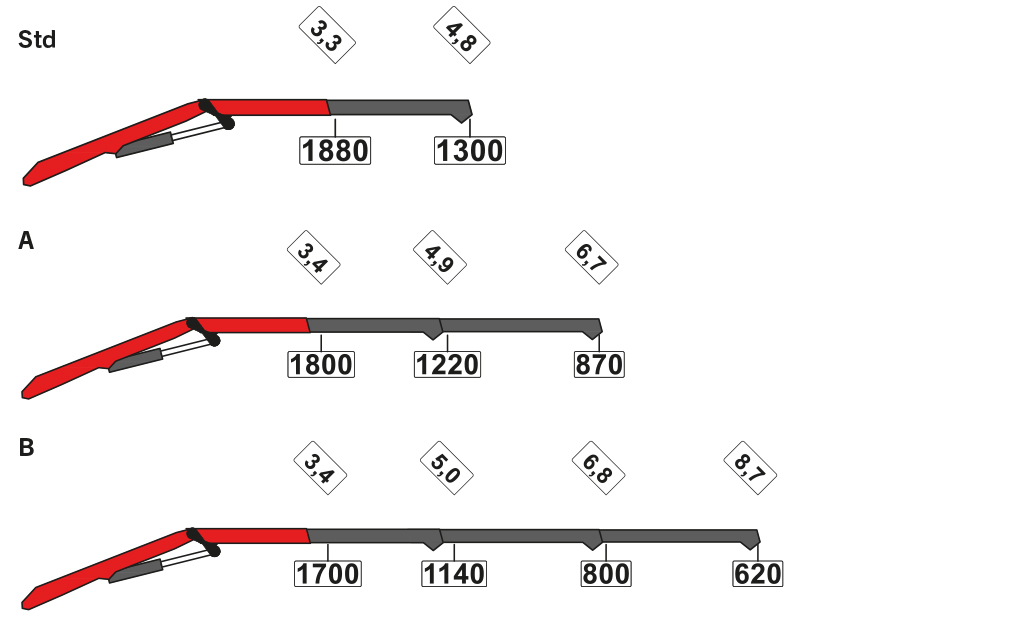

| Std | 6.2 | 5.0 | 400 | 0.8 | 33.0 | 30 | 735 | 1930 | 2200 | 660 |
| A | 6.0 | 6.9 | 400 | 0.8 | 33.0 | 30 | 815 | 1930 | 2200 | 660 |
| B | 5.8 | 8.8 | 400 | 0.8 | 33.0 | 30 | 885 | 1930 | 2200 | 660 |
The outreaches stated are with a boom angle of 20° and are therefore not the maximum. When using mechanical boom extensions, the loads shown on the charts need to be reduced by the weight of these extensions.
